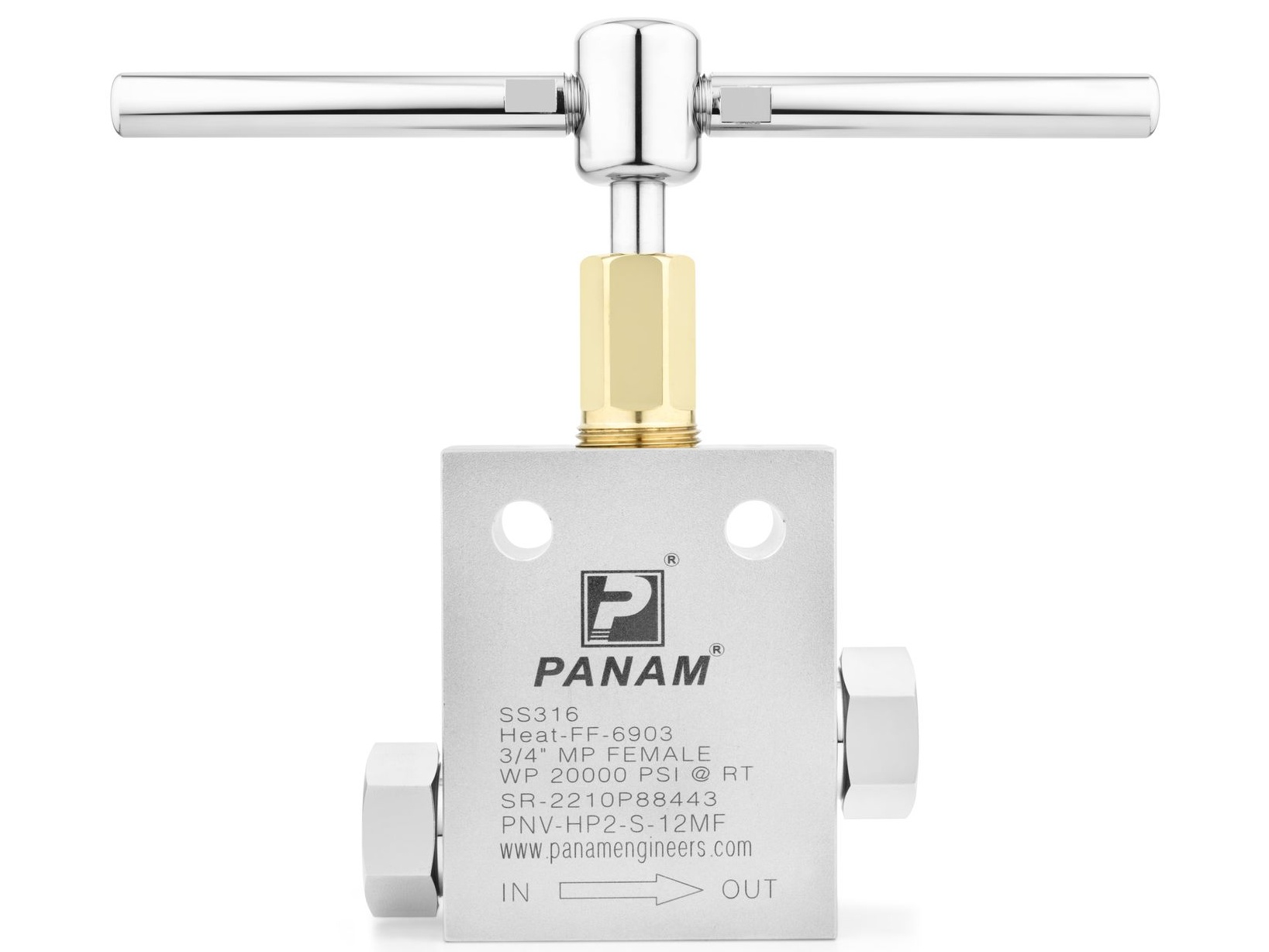

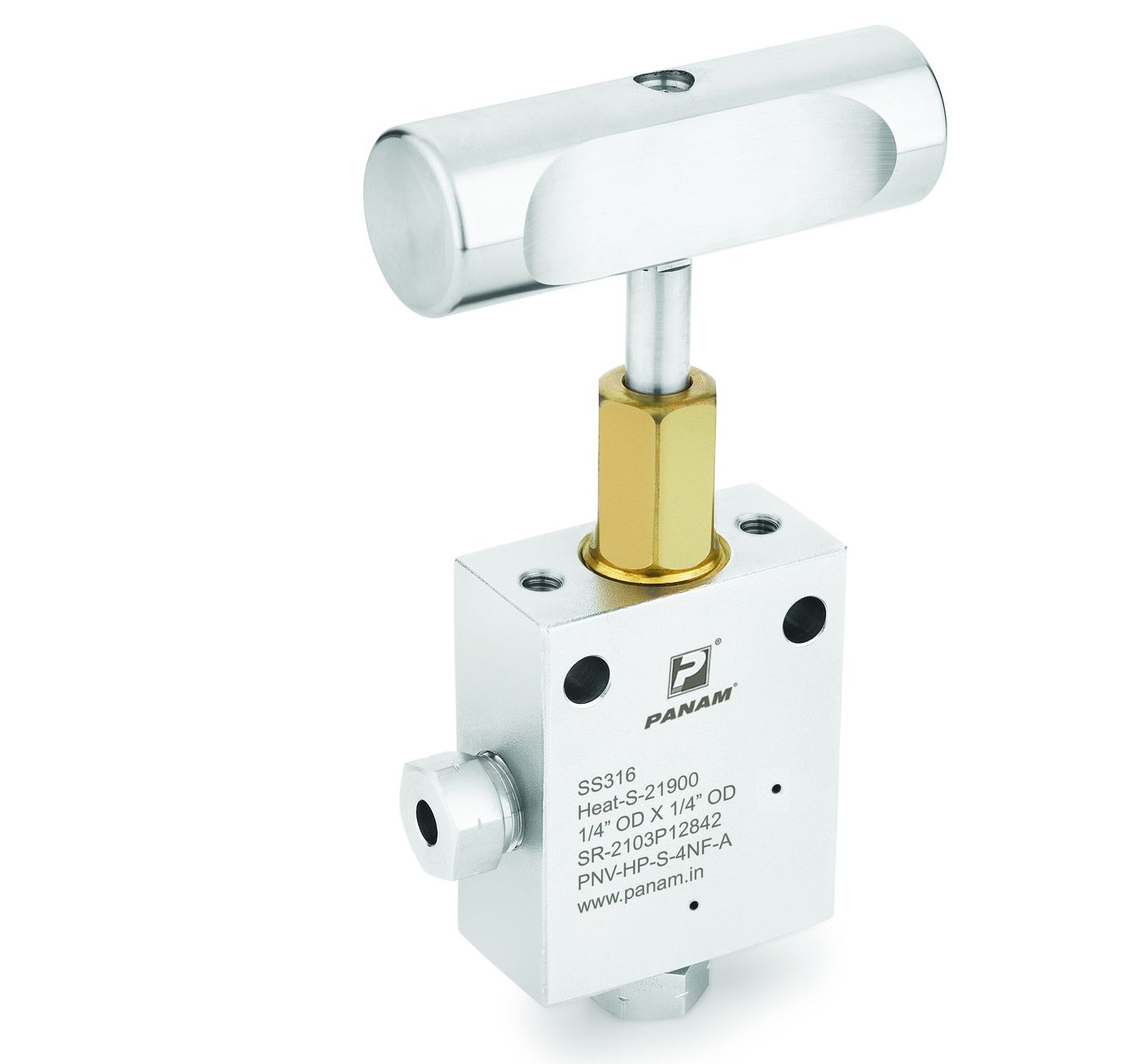

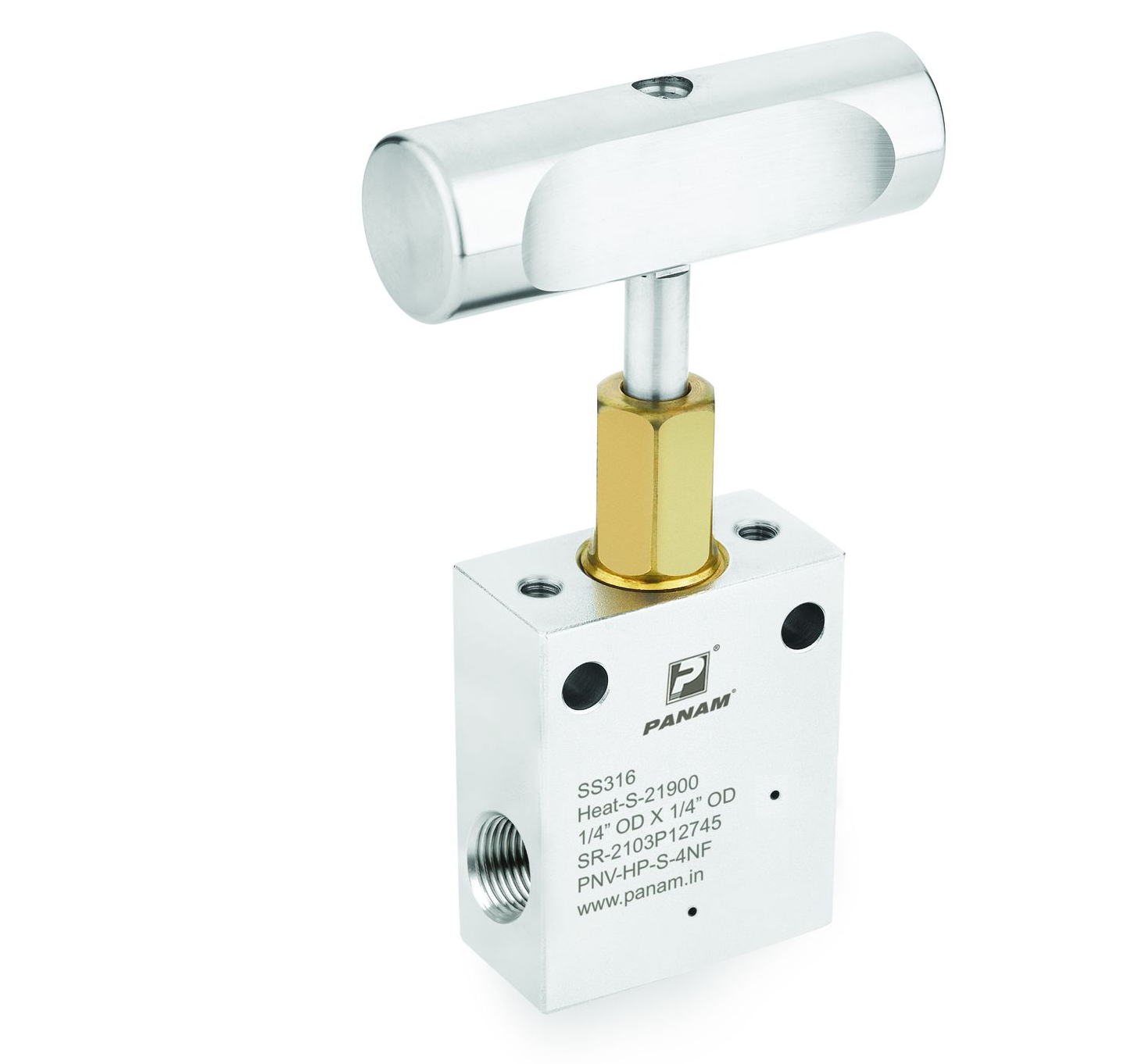

Needle Valve

Needle Valves For Pressure up to 10000 psi (1034 bar)

PANAM Instrumentation Valves are designed for high-precision applications requiring reliable solutions for pressures up to 10000 psi (1034 bar). These valves are ideal for use in instrumentation systems, process control, and flow regulation, offering superior durability and performance in demanding environments. Manufactured with precision and attention to detail, PANAM Instrumentation Valves provide dependable operation and high quality, making them suitable for a wide range of industries. Each valve is subjected to rigorous factory testing to ensure optimum performance and zero leakage.

Features

• Working Pressure: Up to 15,000 psi (1034 bar)
• Connection Sizes: 1/4", 3/8", 1/2", 9/16"
• Connection Type: NPT threads, BSPT threads, and BSPP threads for versatile installation
• Panel Mounting: Option available for easy integration into control panels
• Stem Design: Vee type stem for precise throttling and flow control
• Bonnet Construction: Designed for low operation torque, ensuring easy handling and longevity
• Packing: Below stem threads for secure sealing and minimal leakage risk
• Full Open Turns:
  • 3 to 4 turns for 1/4”, 3/8”, and 1/2” valves
  • 4 to 5 turns for 9/16” valves
• Stem Design: Two-piece, heavy-duty, non-rotating stem for reliability and stability
• Temperature Range: Capable of handling temperatures up to 250°F (121°C) with standard packing materials

Categories

• IB Series Needle Valves - Download Catalogue
• SB Series Needle Valves - Download Catalogue
• HB Series Needle Valves - Download Catalogue

Testing

Every Needle Valve is factory tested up to its maximum pressure rating to a requirement of no detectable leakage
