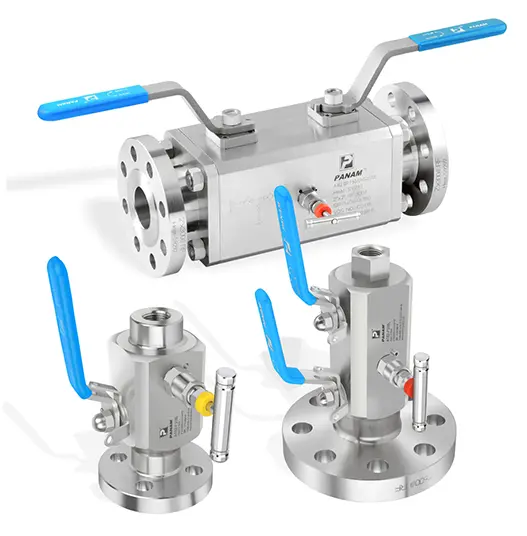

Double Block & Bleed

Double Block & Bleed (Medium & HP Series) For Pressure up to 20000 psi (1378 bar)

PANAM Double Block & Bleed Valves are designed for high-pressure applications, offering safe and reliable isolation and venting of fluid systems. These valves are widely used in industries such as oil and gas, chemical processing, and instrumentation, where leak-tight performance and durability are essential.

Features

• Working Pressure: Up to 20,000 psi (1378 bar)
• Connection Sizes: Available in 1/4", 3/8", 1/2", 9/16", 3/4", 1"
• Connection Types:
  • Medium pressure cone and thread
  • NPT thread
• Configurations:
  • Ball x Needle x Ball

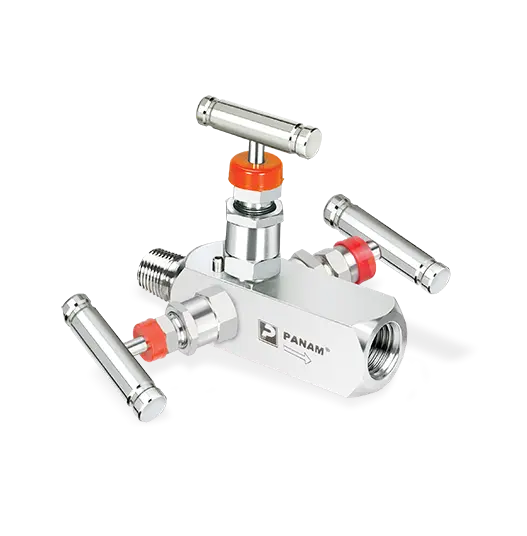

  • Needle x Needle x Needle
  • Needle x Needle (Single Block and Bleed)
• Pressure-Temperature Ratings:
  • Ball/Needle/Ball with Fluorocarbon FKM O-Rings:
    • 0°F to 400°F (-18°C to 204°C) - NPT Thread: 1/4" to 3/4" - 15,000 psi (1034 bar
    • 0°F to 400°F (-18°C to 204°C) - Medium Pressure Cone and Thread: 1/4" to 1" - 1/4" to 3/4" - 15,000 psi (1034 bar)
• • Needle/Needle and Needle/Needle/Needle with Glass-Filled PTFE Packing:
    • 0°F to 400°F (-18°C to 204°C) - NPT Thread: 1/4" to 3/4" - 20,000 psi (1378 bar)
    • 0°F to 400°F (-18°C to 204°C) - Medium Pressure Cone and Thread: 1/4" to 1" - 1/4" to 3/4" - 20,000 psi (1378 bar)
