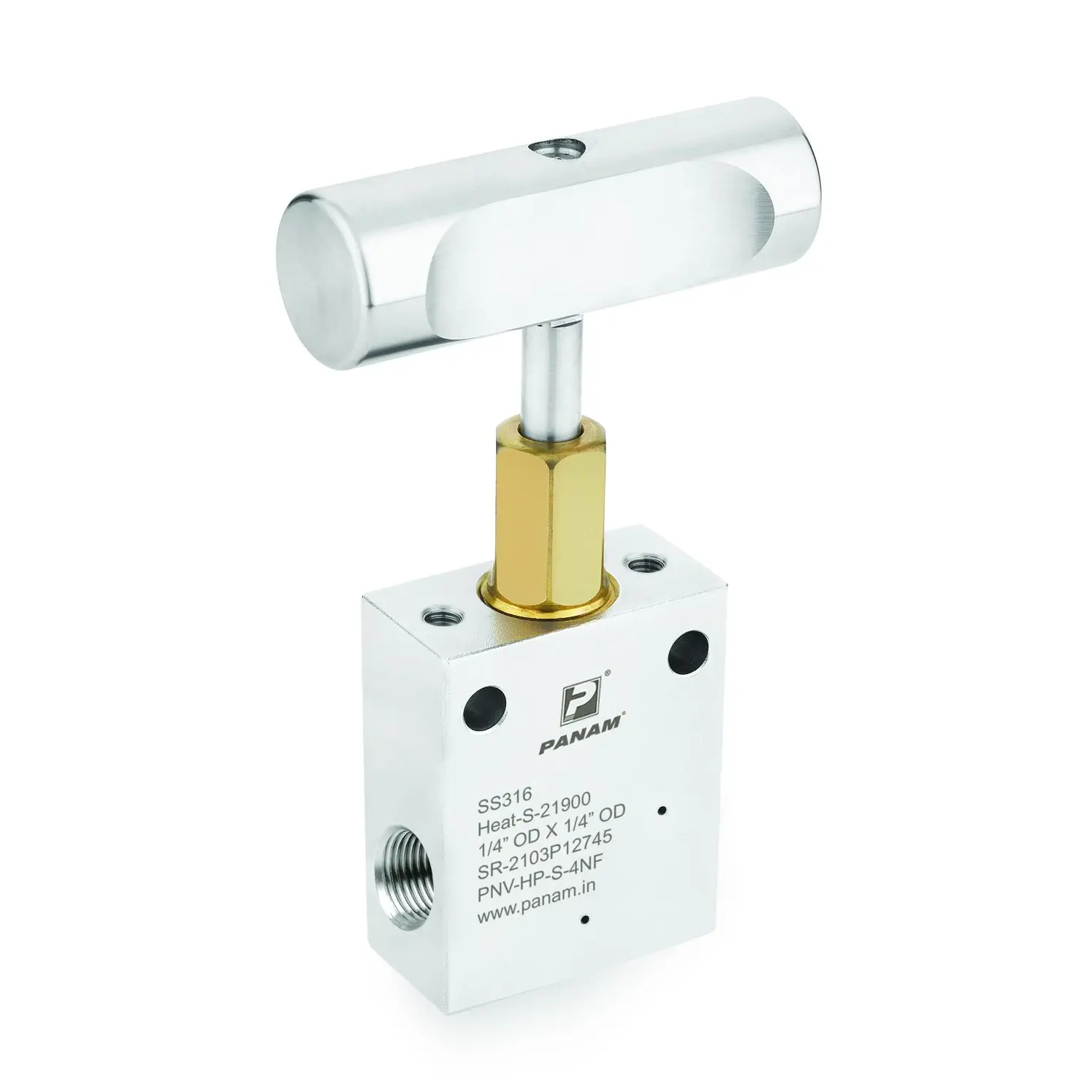

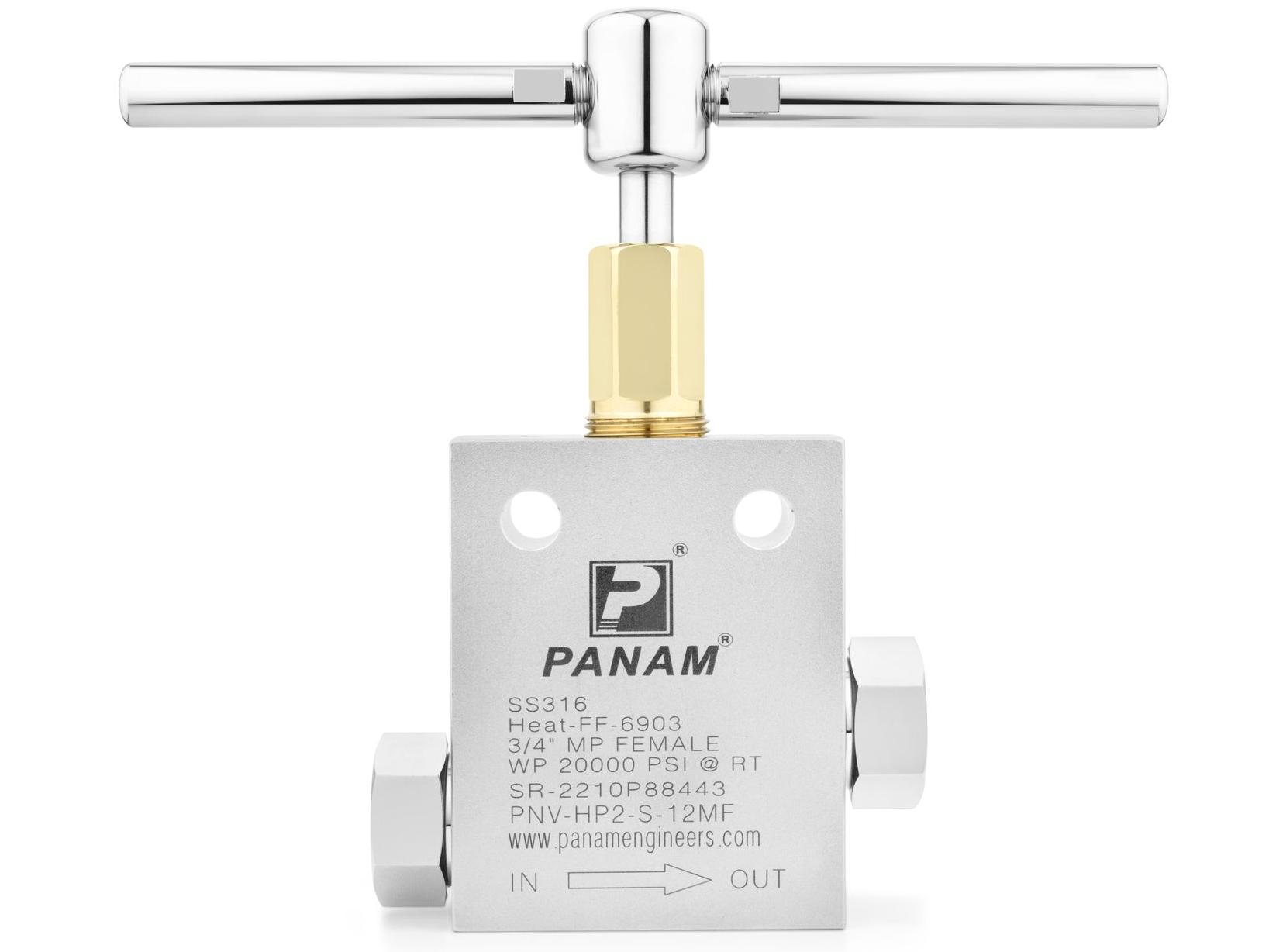

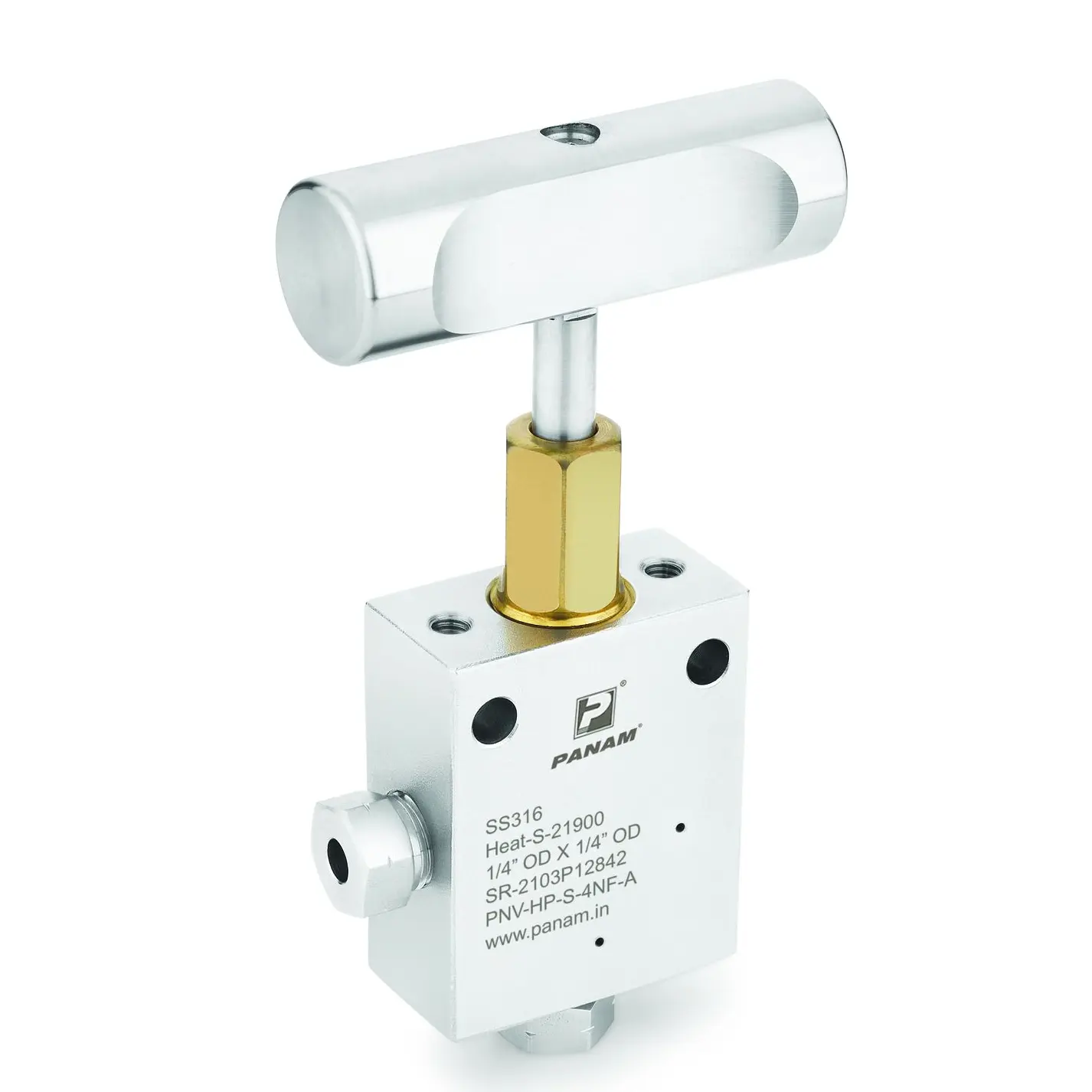

H2 Medium & HP Needle Valve

PANAM Hydrogen Application Needle Valves (Medium & High Pressure Series) are specially engineered to meet the demanding requirements of hydrogen systems, ensuring superior safety, leak-tight performance, and durability under extreme pressure conditions. Designed for working pressures up to 60,000 psi (4134 bar), these valves are ideal for hydrogen refueling stations, fuel cells, and other high-pressure hydrogen applications.


Features & Benefits

  • Working Pressure: Up to 60000 psi (4134 bar)
  • Connection sizes - 1/4', 3/8'', 1/2'', 9/16", 3/4", 1"
  • Connection Type - Medium and high-pressure cone and thread , NPT thread
  • Panel mounting option available
  • Bonnet machined from C63000 for reduced operation torque
  • Packing below stem threads
  • Full open in 4 to 5 turns for 1/4”, 3/8”, 1/2”, 9/16” valves
  • Full open in 3 to 4 turns for 3/4”, 1” valves
  • Two-piece, heavy-duty, non-rotating stem for a robust and reliable assembly
  • Temperature up to 250°F (121°C) with glass filled PTFE packing, up to 1200°F (648°C) with Grafoil packing

Applications

  • Hydrogen refueling stations
  • Fuel cell technology
  • Hydrogen transportation and storage systems
  • Aerospace and automotive hydrogen applications
  • High-pressure gas distribution systems
