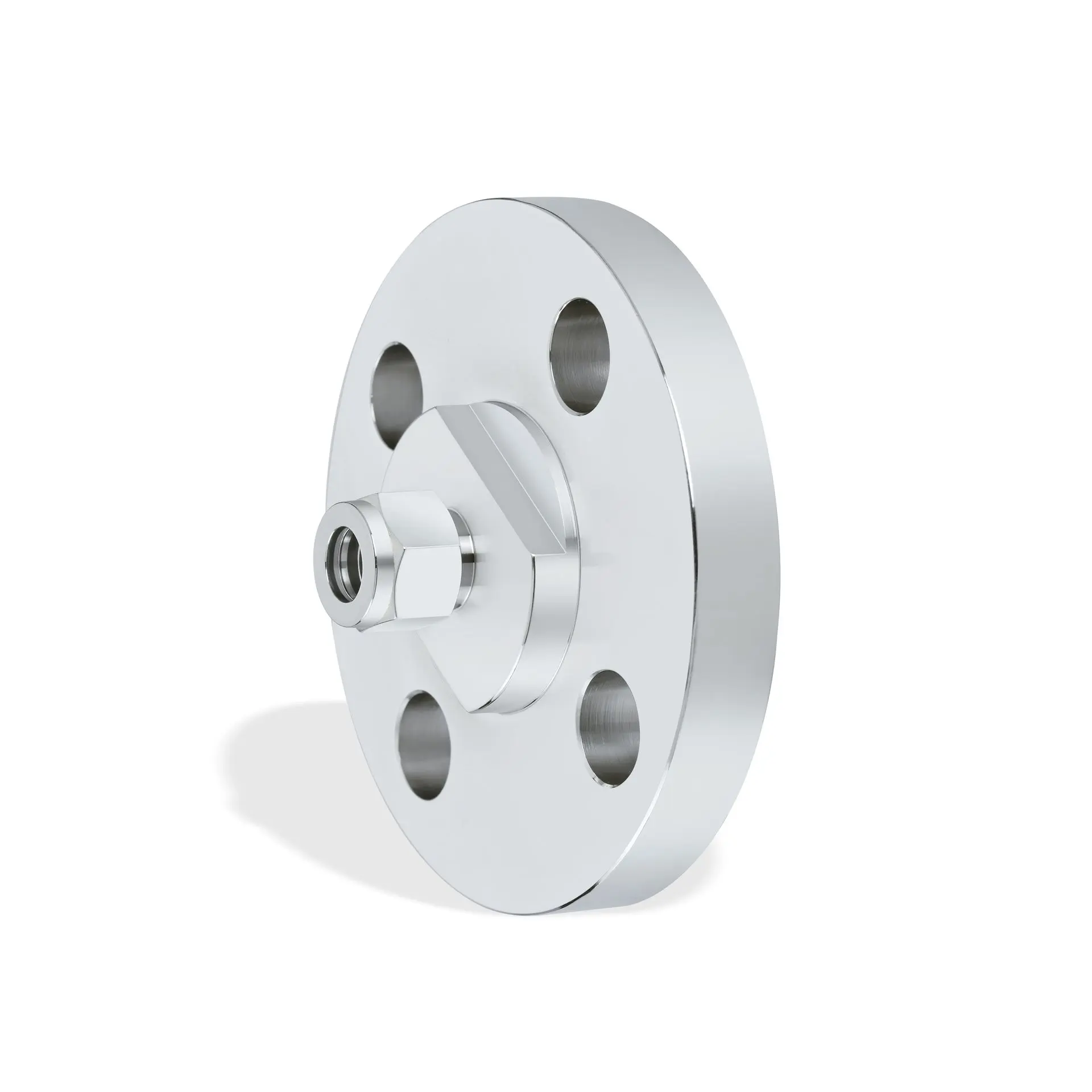

Flange Adaptors


Flange Adaptors For Pressure up to 10,000 psi (689 bar).

PANAM  Flange Adapters are designed to provide simple, safe interface between pipe flanges and instrumentation fittings, eliminating the need for pipe PANAM threading or welding. Flange Adapters link Piping and Instrumentation by eliminating the need of additional PANAM connections with minimal cost and added safety. The design incorporates a Tube Fitting with a standard flange assembly. The flange end is dimensional to meet international standards such as ASME B16.5, EN 1092-1, DIN EN 1092-1, & JIS B2220 Available in various sizes and materials like Stainless steel & Other Alloys (e.g. Monel, Hastalloy, Duplex, Super Duplex etc. as per the customer’s requirements).



Features

  • PANAM Flange Adapters are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Variety of end connections – Threaded, Flanged, Socket Weld.
  • Maximum working pressure up to 10,000 psig. (689 bar).
  • Available in Tube Fitting end connection up to 50mm in metric sizes & 2″ in imperial sizes.
  • Flange type meet ASME, DIN, EN and JIS standards. Full range of sealing faces including Flat Face, Raised Face, RTJ and Tongue and Groove.
  • NACE certification available upon request.
  • EN 10204 type 3.1B test certificates are supplied with materials.
  • Heat code traceability.





  Download Catalogue    Send Enquiry

Products

      ASME - 150 CLASS x PANAM                 ASME - 300 CLASS x PANAM                  ASME - 400 CLASS x PANAM                 ASME - 600 CLASS x PANAM              ASME - 900 CLASS x PANAM                                    tube fittings                                                   tube fittings                                                  tube fittings                                             tube fittings                                            tube fittings

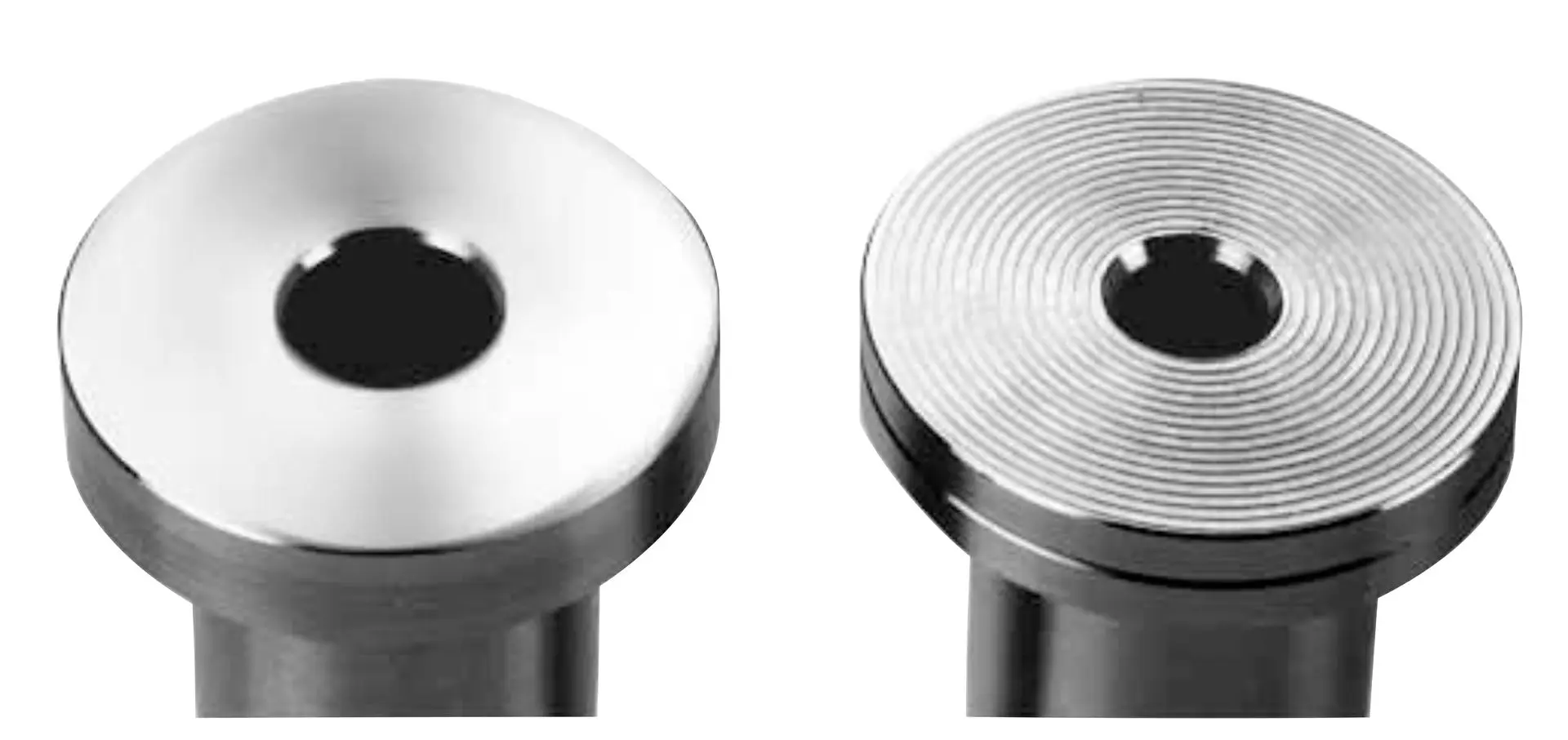

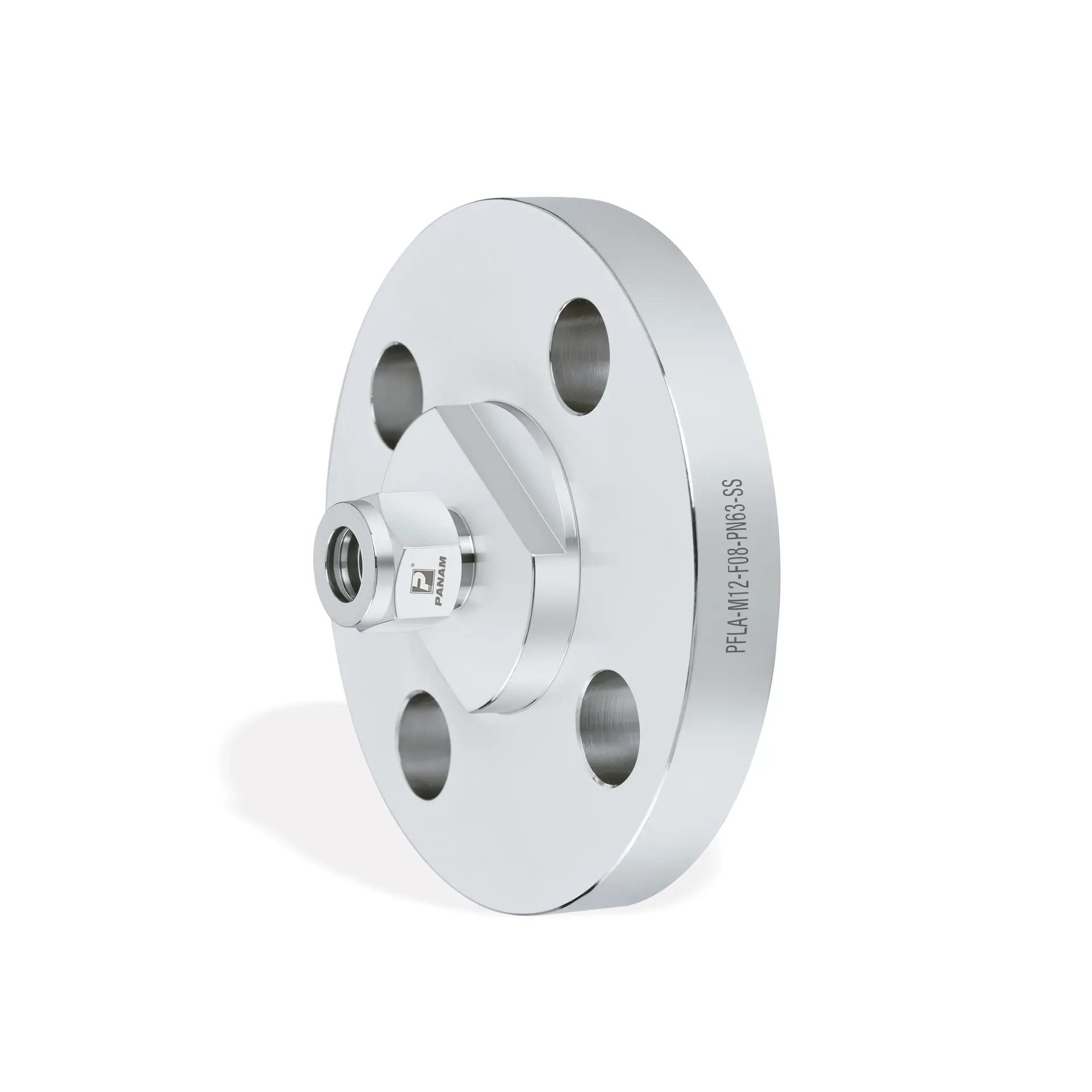

      ASME - 1500 CLASS x PANAM             ASME - 2500 CLASS x PANAM                 EN - PN16 CLASS x PANAM                   EN - PN63 CLASS x PANAM                     FLANGE SEAL FACE - 1                                            tube fittings                                                   tube fittings                                          tube fittings                                                tube fittings

              FLANGE SEAL FACE - 2                         JIS - 10K x PANAM tube fittings
