Relief Valves

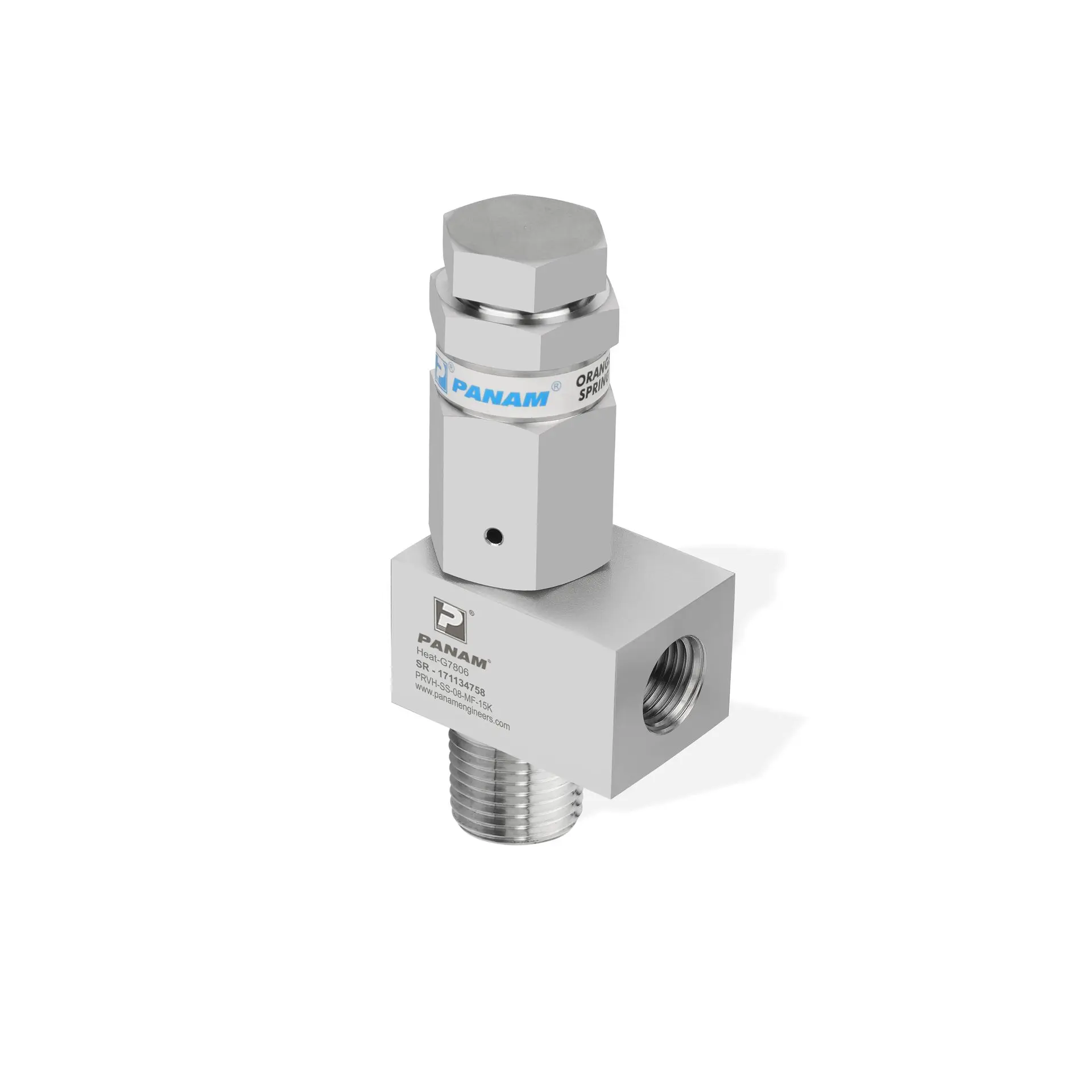

Relief Valves (Medium & HP Series) For Pressure up to 60000 psi (4134 bar)

PANAM Relief Valves (Medium & High Pressure Series) are designed to provide reliable overpressure protection in high-pressure systems. With a working pressure of up to 60,000 psi (4134 bar), these precision-engineered valves automatically release excess pressure to safeguard instrumentation, process control, and fluid handling applications.

Features

  • Working Pressure: Up to 60,000 psi (4134 bar)
  • Connection Sizes: Available in 1/4", 3/8", 1/2", 9/16", 3/4", and 1"
  • Connection Types: Medium and high-pressure cone and thread, NPT, BSPT, and BSPP threaded connections
  • Set Pressure Range: Adjustable from 1,500 psi (103 bar) to 60,000 psi (4134 bar)
  • Leak-Tight & Secure Seal: Precision design ensures accurate pressure relief and system protection
  • High-Quality Materials: Manufactured from corrosion-resistant high tensile strength stainless steel, (SS 316) for durability and extended service life
  • Factory Pre-Set or Field Adjustable: Available in both factory pre-set and user-adjustable configurations for customized pressure settings
  • Compliance: Relief valves can be supplied to meet the latest NACE MR0175 and NACE MR0103 (Sour Gas Service) standards





  Download Catalogue    Send Enquiry     Buy it from here
