Filters

Gauge Savers for pressure up to 8,720 psi (600 bar)

PANAM offers a large variety of Filters from different materials like Stainless Steel & Brass and as per customer's requirements. PANAM offers Filters with a variety of end connections including NPT Tapered, ISO Tapered (BSPT), ISO Parallel (BSPP), Metric . PANAM Filters are 100% factory tested, comply with NACE MR0175 with Heat Code Traceability. Filters can be supplied also for oxygen application after a special cleaning.

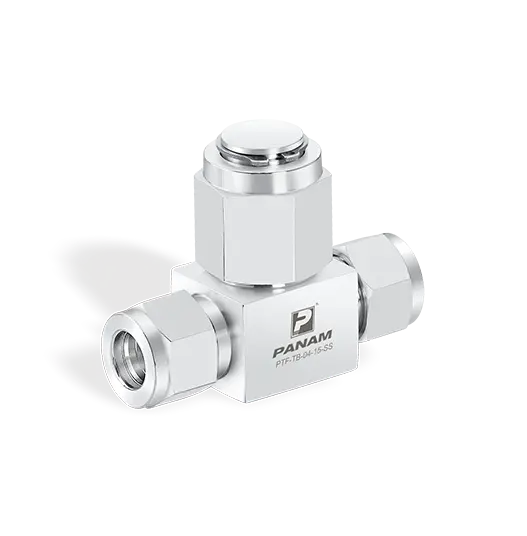

• PANAM T-Type Filters are designed to ease replacement of filters. Safe union bonnet design for high pressure ratings. Filter element can be replaced without removing body from system.

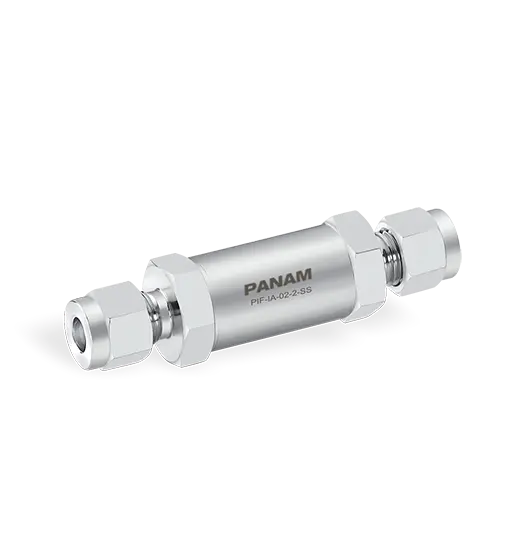

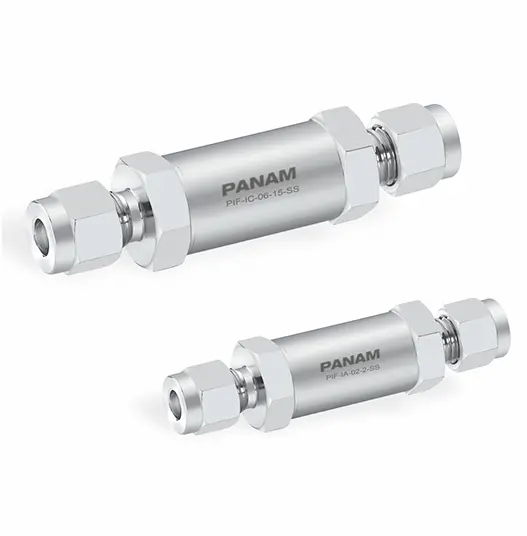

• PANA In-Line Filters are compact design for confine space.



Features

• Working Pressure: Up to 3000 psi (207 bar)
• Available in SS 316 & Brass Material.
• Available in variety of end connections – Male & Female NPT, BSPP, BSPT & PANAM® tube fittings.
• Maximum Working Pressure – 3,000 psi (207 bar).
• Size ranging from 1/8” to ½” & 3mm OD to 12mm OD.
• Nominal pore size of the replaceable sintered filter element: 0.5, 2, 7, 15, 40, 60, 90 microns.
• Nominal pore size of the replaceable mesh filter element: 40, 90, 140, 230, 440 microns.
• Working Temperature – -20 F to 900 F (-25 C to 482 C).
• NACE certification available upon request.
• Heat code traceability.
