Instrumentation Fittings

PANAM Instrumentation Fittings are designed for secure, leak-free connections in high-pressure instrumentation and process control systems. These precision-engineered fittings ensure reliable performance in critical applications up to 15,000 psi (1034 bar), providing superior sealing, corrosion resistance, and durability. Used across industries such as oil & gas, chemical processing, and power generation, PANAM Instrumentation Fittings offer compatibility with various tubing and piping configurations, ensuring safe and efficient fluid and gas flow management.

Categories

  • Tube Fittings
  • Pipe Fittings
  • 37° Flare Fittings
  • Weld Fittings​

General Characteristics

  • Working Pressure: Up to 10,000 psi (689 bar)
  • Connection Sizes: 1/16" to 2" and 3mm to 50mm
  • Connection Types: NPT, BSPT, BSPP, and tube-end connections for easy integration
  • Material Options: SS 316, Monel, Duplex, Hastelloy & Brass and other upon request

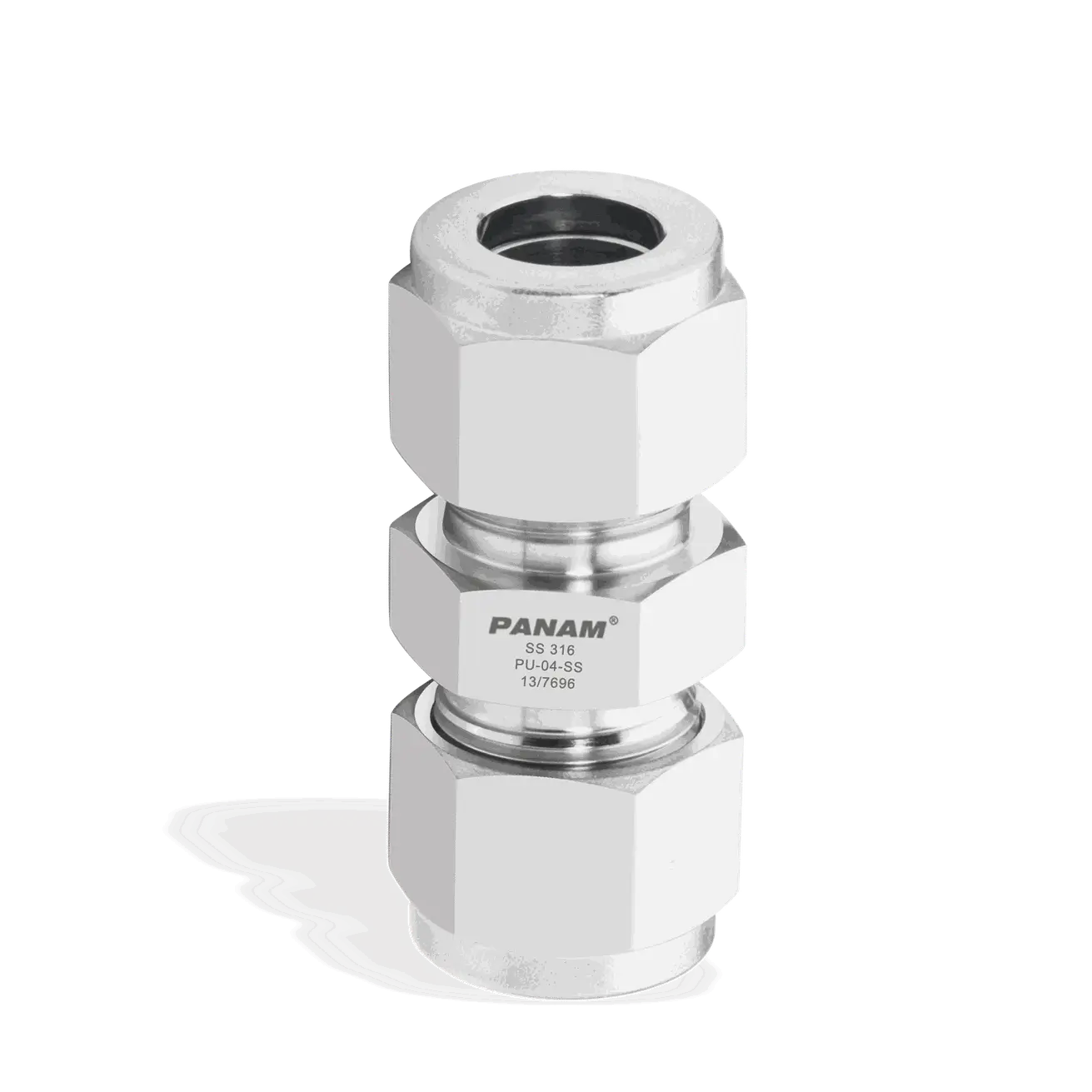

Tube Fittings


Tube Fittings For Pressure up to 10,000 psi (689 bar).

PANAM Tube Fittings are engineered for high-performance applications requiring secure, leak-free connections in instrumentation and process control systems. Designed to withstand pressures up to 10,000 psi (689 bar)., these fittings offer superior reliability, corrosion resistance, and durability in demanding environments. PANAM Tube Fittings ensure precision connections for seamless fluid and gas transfer, making them ideal for industries such as oil & gas, petrochemical, and power generation. Each fitting undergoes stringent factory testing to guarantee maximum efficiency and zero leakage.




Features

  • Working Pressure: Up to 10,000 psi (689 bar).
  • Connection Sizes: 1/16" to 2"OD and 3mm to 50mm OD
  • Connection Type: Male & Female NPT , BSPT , BSPP, Metric & 37° Flare
  • Types Available
    • Male & Female Connectors
    • Elbows (45° & 90°)
    • Tees & Crosses
    • Couplings & Adapters
    • Plugs & Caps
    • And More
  • NACE Compliance: Available to meet current revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service


  Download Catalogue    Send Enquiry

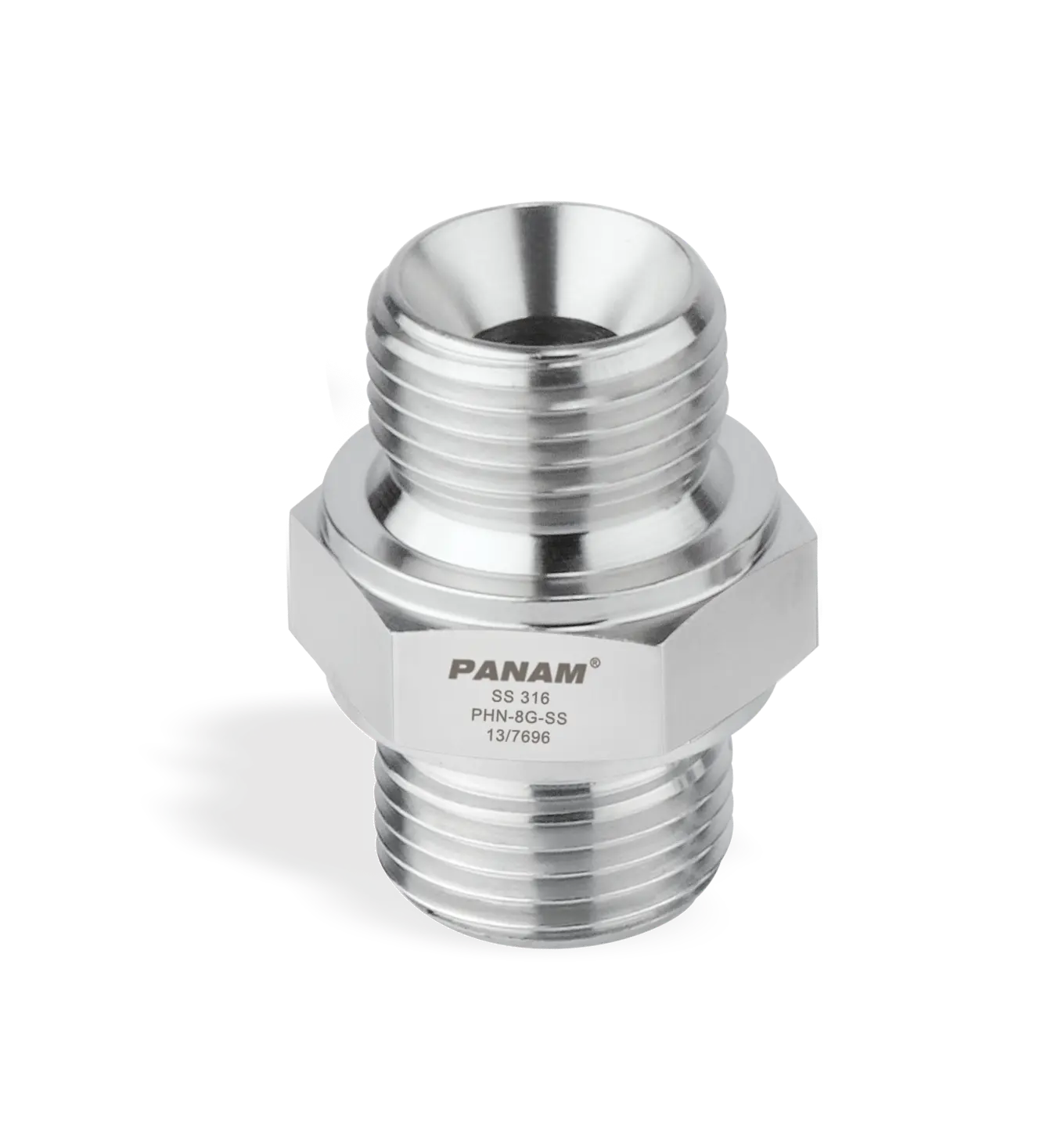

Pipe Fittings


Pipe Fittings For Pressure up to 10,000 psi (689 bar)

PANAM Pipe Fittings are designed to provide strong, leak-proof connections in high-pressure piping and instrumentation systems. Engineered to withstand pressures up to 10,000 psi (689 bar), these fittings ensure reliability, corrosion resistance, and durability in demanding applications. PANAM Pipe Fittings are precision-machined for seamless integration into process control, hydraulic, and fluid handling systems. Each fitting undergoes rigorous testing to guarantee superior performance and leak-free operation in critical environments.

Features

  • Working Pressure: Up to 10,000 psi (689 bar)
  • Connection Sizes:  1/8″ to 2” and more based on application needs
  • Connection Type: Male & Female NPT , BSPT , BSPP for flexible installation
  • Types Available:
    • Male & Female Connectors
    • Elbows (45° & 90°)
    • Tees & Crosses
    • Couplings & Adapters
    • Plugs & Caps
    • And More
  • Material Options: SS 316, Monel, Duplex, Hastelloy & Brass and other upon request
  • NACE Compliance: Available to meet current revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service


  Download Catalogue    Send Enquiry

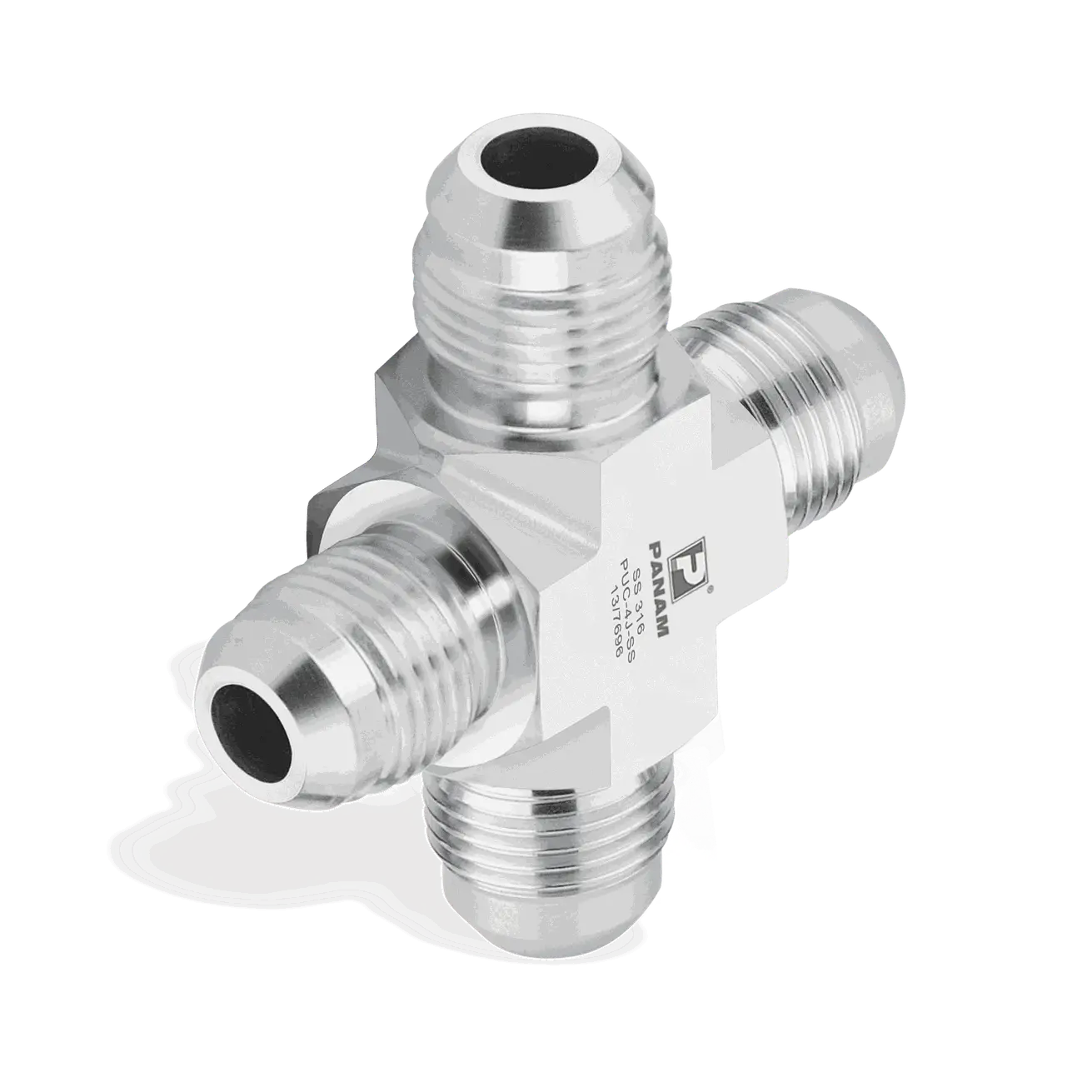

37° Flare Fittings


37° Flare Fittings For Pressure up to 10,000 psi (689 bar)

PANAM 37° Flare Fittings are precision-engineered for high-pressure applications requiring secure, leak-free connections in instrumentation, hydraulic, and fluid transfer systems. Designed to withstand pressures up to 10,000 psi (689 bar), these fittings provide superior sealing and vibration resistance. With a 37° flared design, PANAM Flare Fittings ensure a metal-to-metal seal, eliminating the need for additional sealing compounds. Manufactured from high-quality materials, these fittings offer excellent corrosion resistance and durability, making them ideal for critical applications in industries such as oil & gas, aerospace, and chemical processing.

Features

  • Working Pressure: Up to 10,000 psi (689 bar)
  • Connection Sizes: 1/4" to 2"
  • Connection Type: 37° flare end, Swivel & JIC Swivel NPT threads, BSPT threads, BSPP threads for versatile installation
  • Types Available:
    • Male & Female Connectors
    • Elbows (45° & 90°)
    • Tees & Crosses
    • Bulkhead Fittings
    • Adapters & Couplings
    • Caps & Plugs
    • And more
  • Material Options: Stainless steel, brass, and other corrosion-resistant alloys for extended service life
  • NACE Compliance: Available to meet current revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service


  Download Catalogue    Send Enquiry

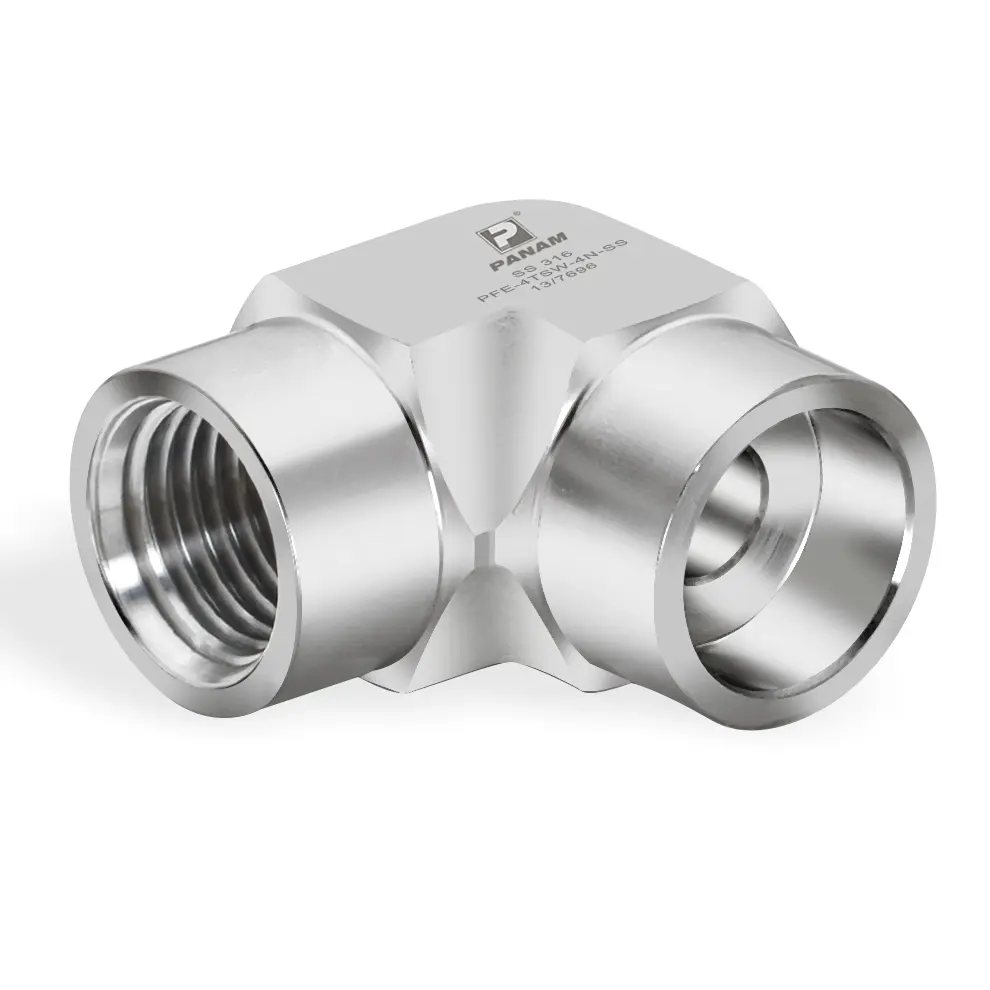

Weld Fittings​


Weld Fittings For Pressure up to 10,000 psi (689 bar)​

PANAM Weld Fittings are designed to provide strong, permanent connections in high-pressure systems. Ideal for use in critical applications where secure, leak-tight joints are essential, these fittings are capable of withstanding pressures up to 10,000 psi (689 bar). Manufactured from premium materials, PANAM Weld Fittings offer excellent corrosion resistance and long-lasting durability. Their precision construction ensures superior weld integrity, making them ideal for industries such as oil & gas, petrochemical, and power generation. These fittings are suitable for welding into piping and tubing systems, providing permanent, reliable connections in demanding environments.

Features

  • Working Pressure: Up to 10,000 psi (689 bar)
  • Connection Sizes: 1/4" to 2"
  • Connection Type: Butt weld, socket weld, Male & Female NPT , BSPT , BSPP for flexible installation
  • Material Options: Stainless steel, carbon steel, and other corrosion-resistant alloys for enhanced durability
  • Types Available:
    • Male & Female Couplings
    • Elbows (45° & 90°)
    • Tees & Crosses
    • Adapters & Reducers
    • Caps & Plugs
    • And more
  • NACE Compliance: Available to meet current revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service

  Download Catalogue    Send Enquiry
