Instrumentation Valves

PANAM Instrumentation Valves are designed for precise control, isolation, and regulation of fluid and gas flow in critical applications. These valves ensure leak-free performance, durability, and high-pressure handling, making them ideal for use in hydrogen systems, oil & gas, chemical processing, power plants, and instrumentation control systems. Manufactured from high-quality stainless steel and corrosion-resistant alloys, they provide long-term reliability in demanding environments.


Categories

  • Needle Valve
  • Ball Valve
  • Double Block & Bleed
  • Check Valve
  • Relief Valve
  • 2-3-5 Manifold Valves
  • Gauge Root valves
  • Filters
  • Condensate Pots
  • Pressure Regulators
  • Air Header

General Characteristics

  • Material Options: SS 316/316L, 17-4 PH, Monel, Hastelloy, Inconel, Duplex & Super Duplex, more available upon request
  • Working Pressure: Up to 15,000 psi (1034 bar)
  • Operating Temperature Range: -51°C to +537°C (-60°F to +1000°F)
  • Connection Sizes: Up to 1”
  • Connection Types: NPT, BSPT, BSPP, Double Ferrule

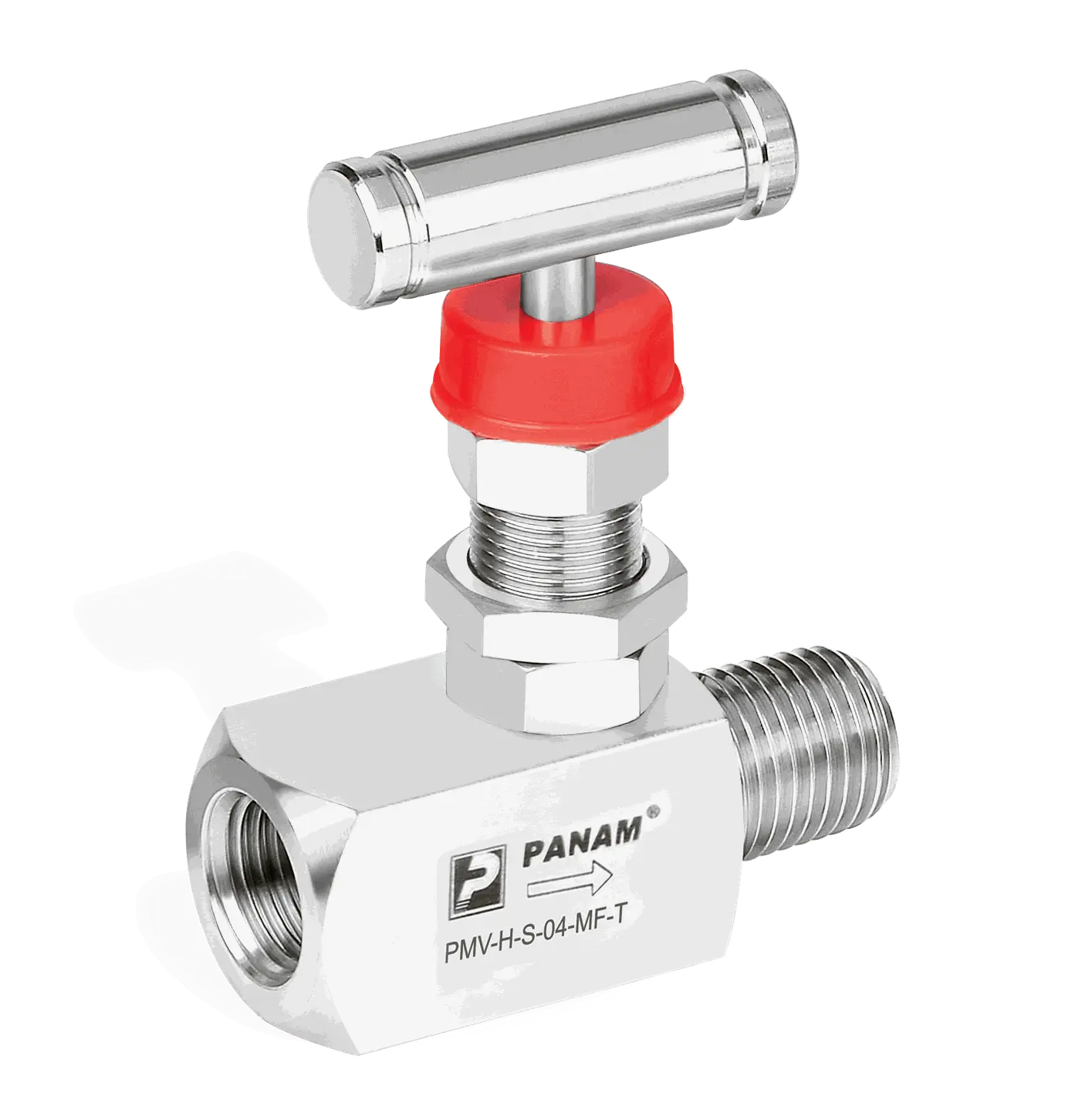

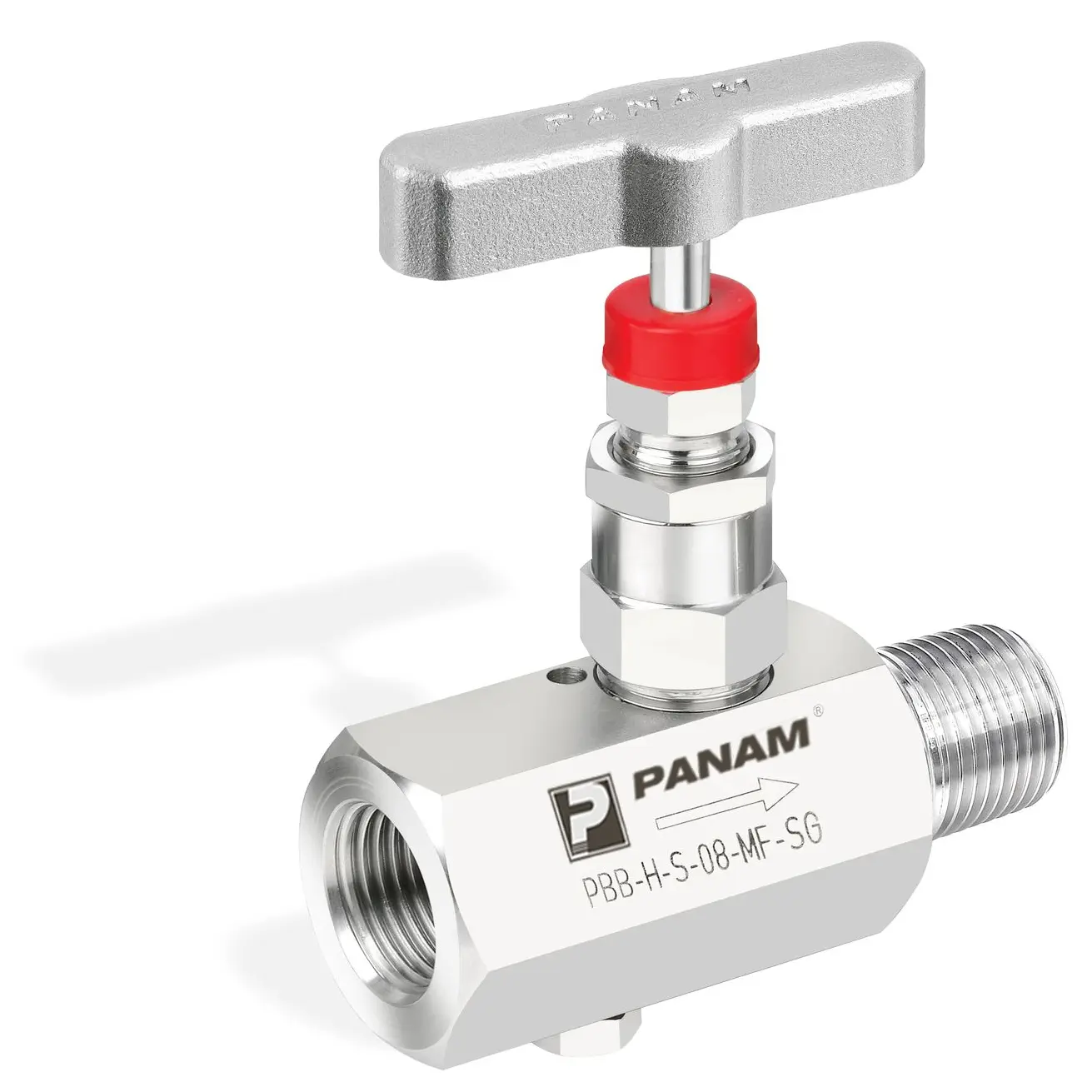

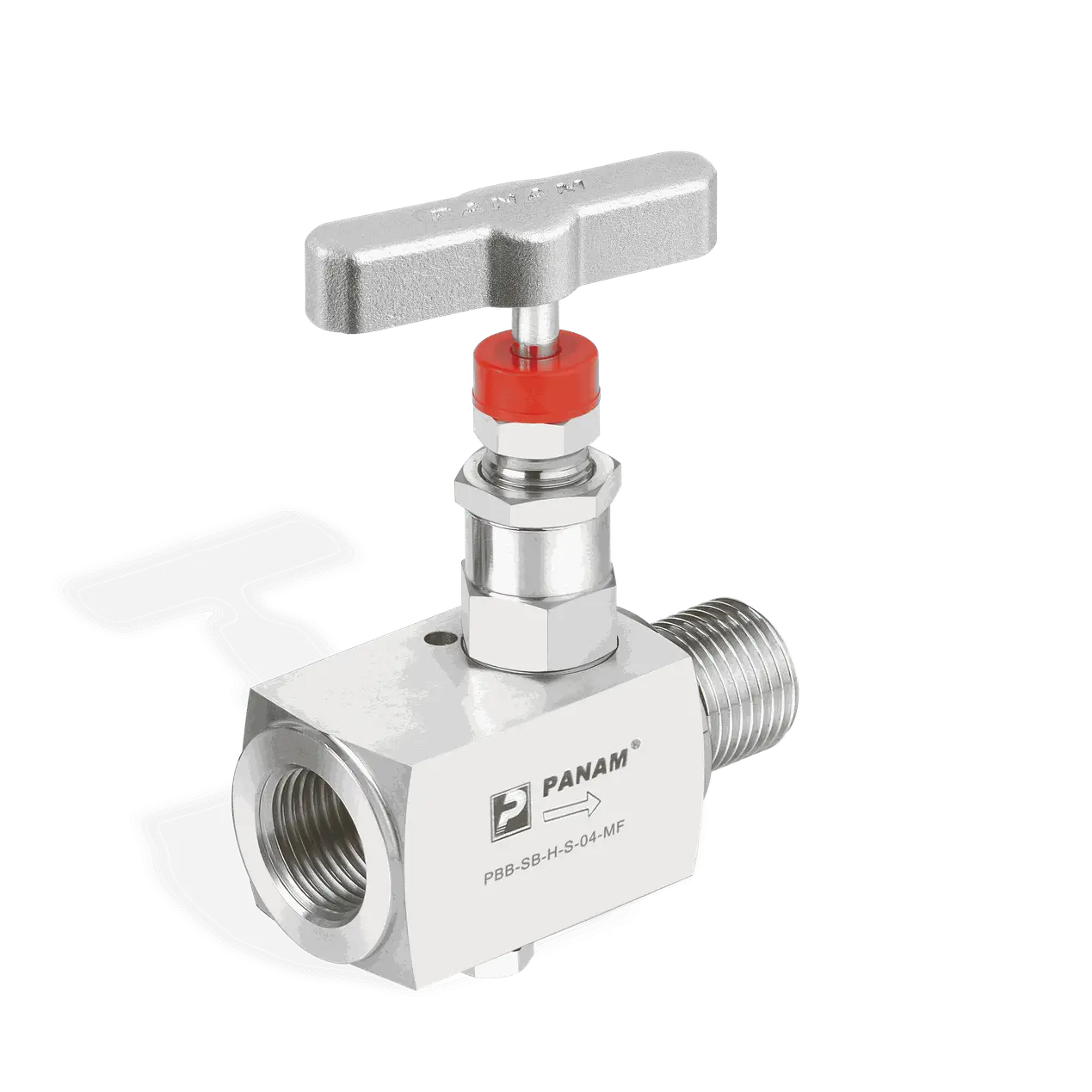

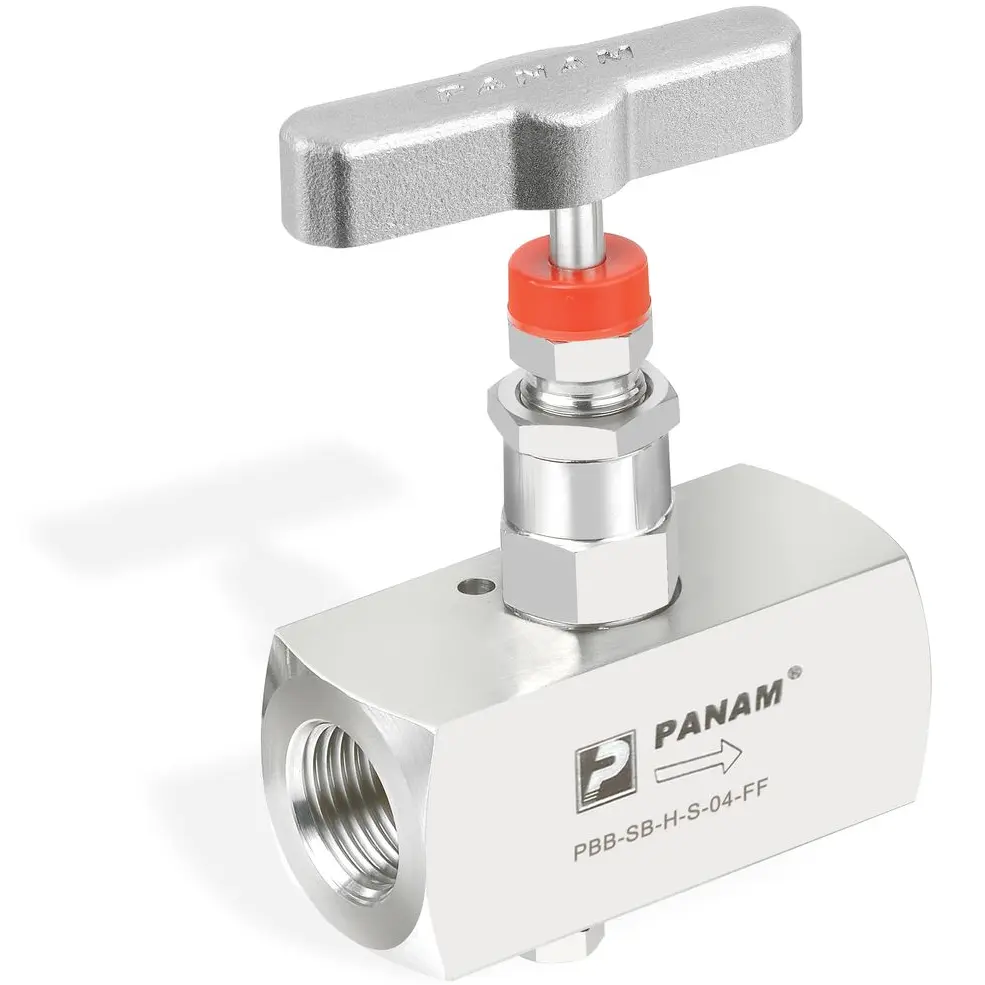

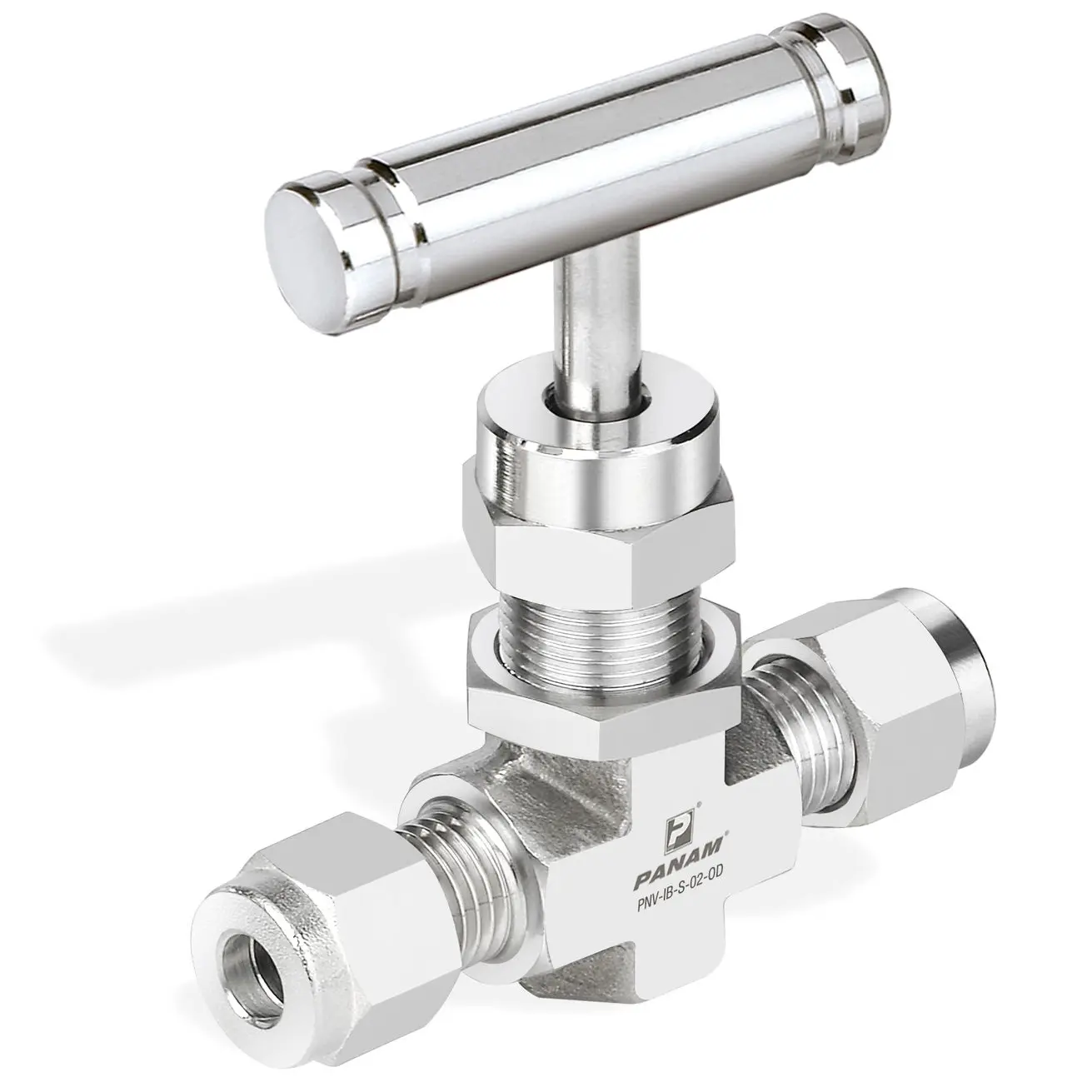

Needle Valve


Needle Valves For Pressure up to 10000 psi (689 bar)

PANAM Needle Valves are designed for precise flow control in high-pressure instrumentation and process applications. Built to withstand pressures up to 10000 psi (689 bar), these valves ensure reliable operation, leak-tight sealing, and long service life. Ideal for use in oil & gas, chemical processing, power generation, and hydraulic systems, PANAM Needle Valves offer superior performance in critical applications. Each valve is precision-engineered to provide smooth, accurate flow regulation while minimizing pressure drop




Features

  • Working Pressure: Up to 10,000 psi (689 bar)
  • Connection Sizes: Up to 1"
  • Connection Type: NPT threads, BSPT threads, and BSPP threads for versatile installation
  • Stem Design: Vee type stem for precise throttling and flow control
  • Bonnet Construction: Designed for low operation torque, ensuring easy handling and longevity
  • Stem Design: Non-rotating stem for reliability and stability
  • Temperature Range: Capable of handling temperatures up to 1018°F (548°C) with standard packing materials


Series

  Send Enquiry

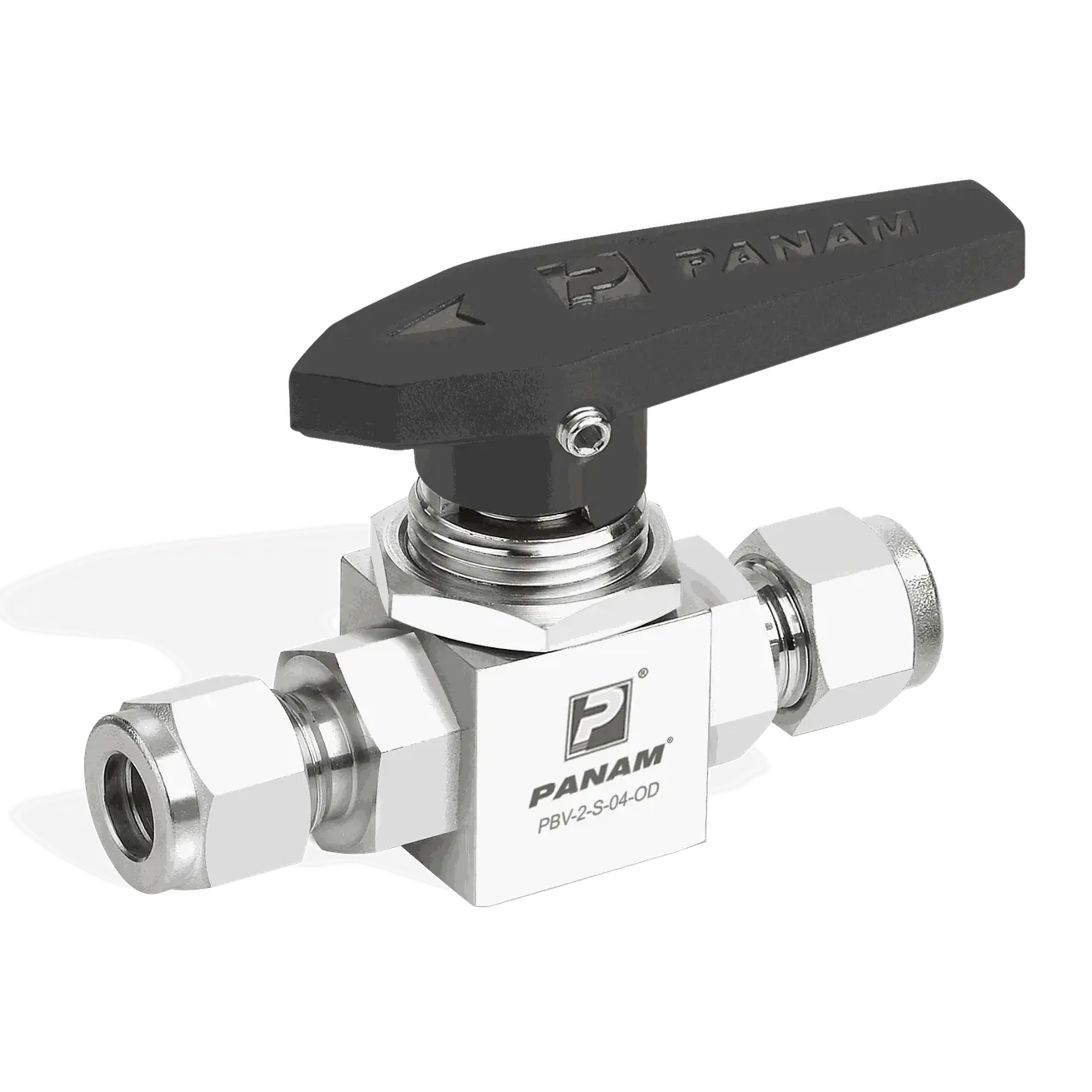

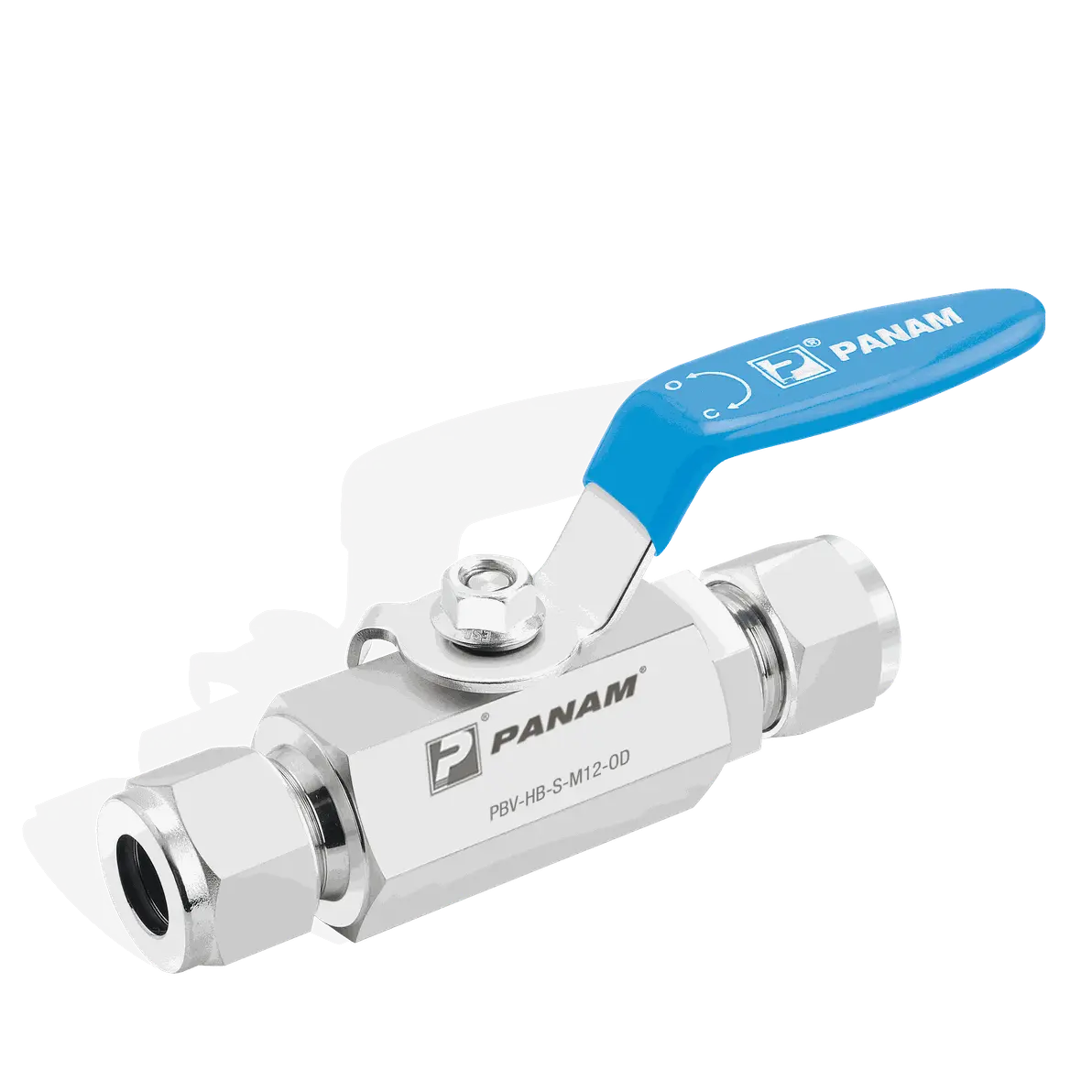

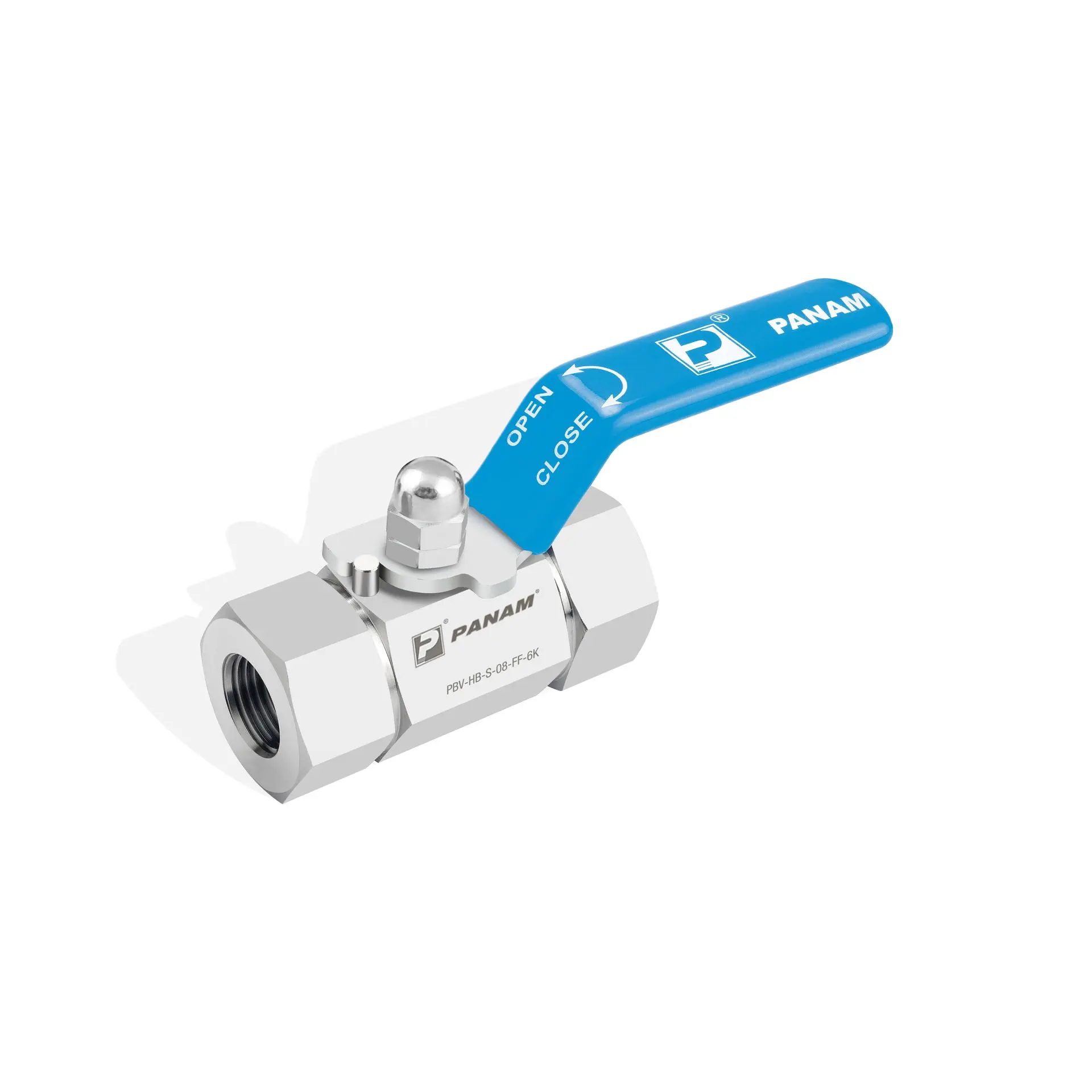

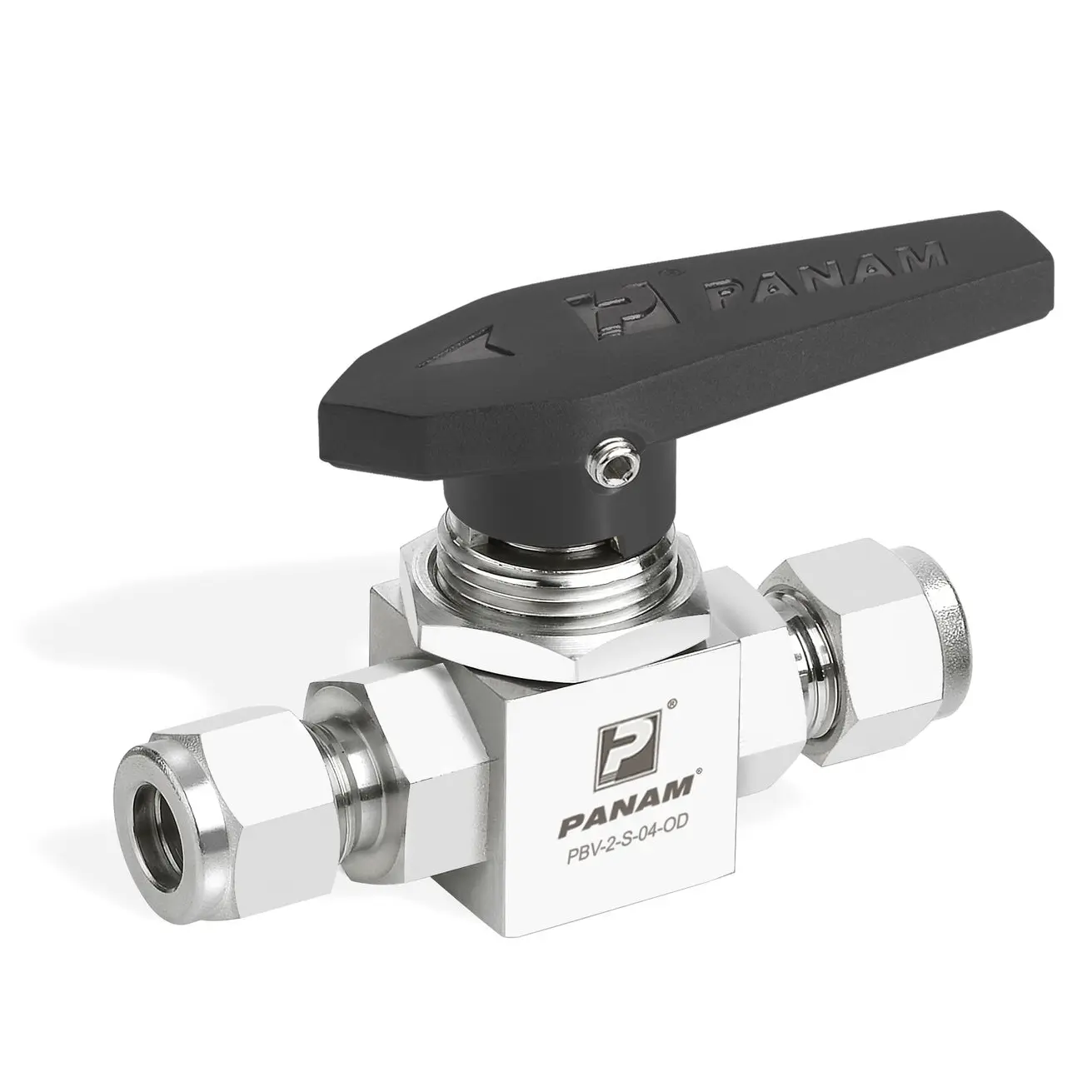

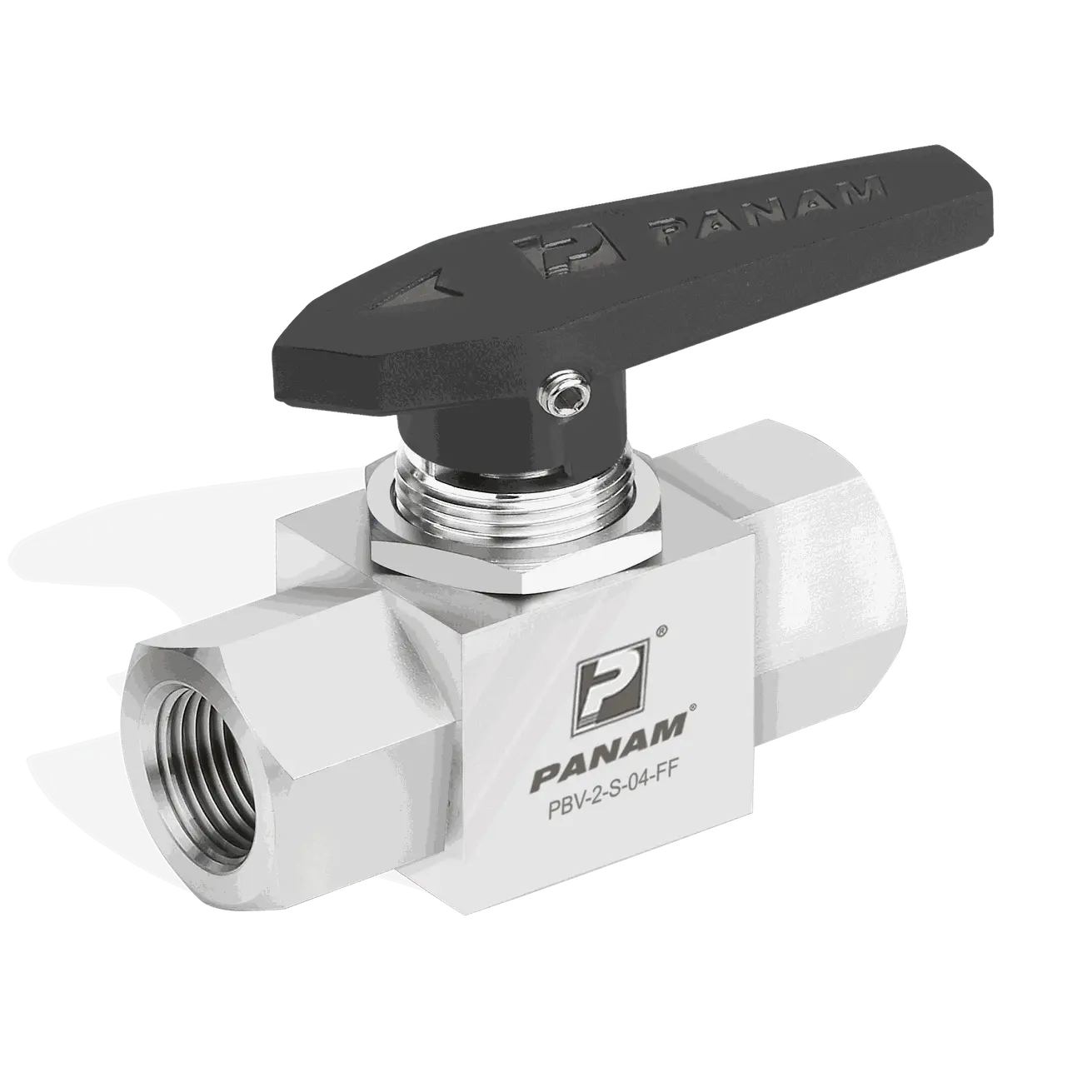

Ball Valve


Ball Valves For Pressure up to 10000 psi (1034 bar)

PANAM Ball Valves are engineered for exceptional performance in demanding flow control applications, offering reliability and durability in pressures up to 15,000 psi (1034 bar). These valves are perfect for use in process control, instrumentation, and flow regulation across industries like oil & gas, chemical processing, and general high-pressure systems. With precision machining and a focus on quality, PANAM Ball Valves provide smooth operation and leak-tight shut-off in critical environments. Each valve undergoes comprehensive factory testing to ensure consistent performance and high safety standards.


Features

  • Working Pressure: Up to 10000 psi (1034 bar)
  • Connection Sizes: Up to 1"
  • Connection Type: Male & Female NPT , BSPT , BSPP, Metric & PANAM Tube Fittings for flexible installation
  • Ball Design: Precision-machined ball for a tight shut-off and smooth operation
  • Full Open Turns: Designed for minimal turns for full valve opening, ensuring quick operation
  • NACE Compliance: Available to meet current revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service


Series

  Send Enquiry

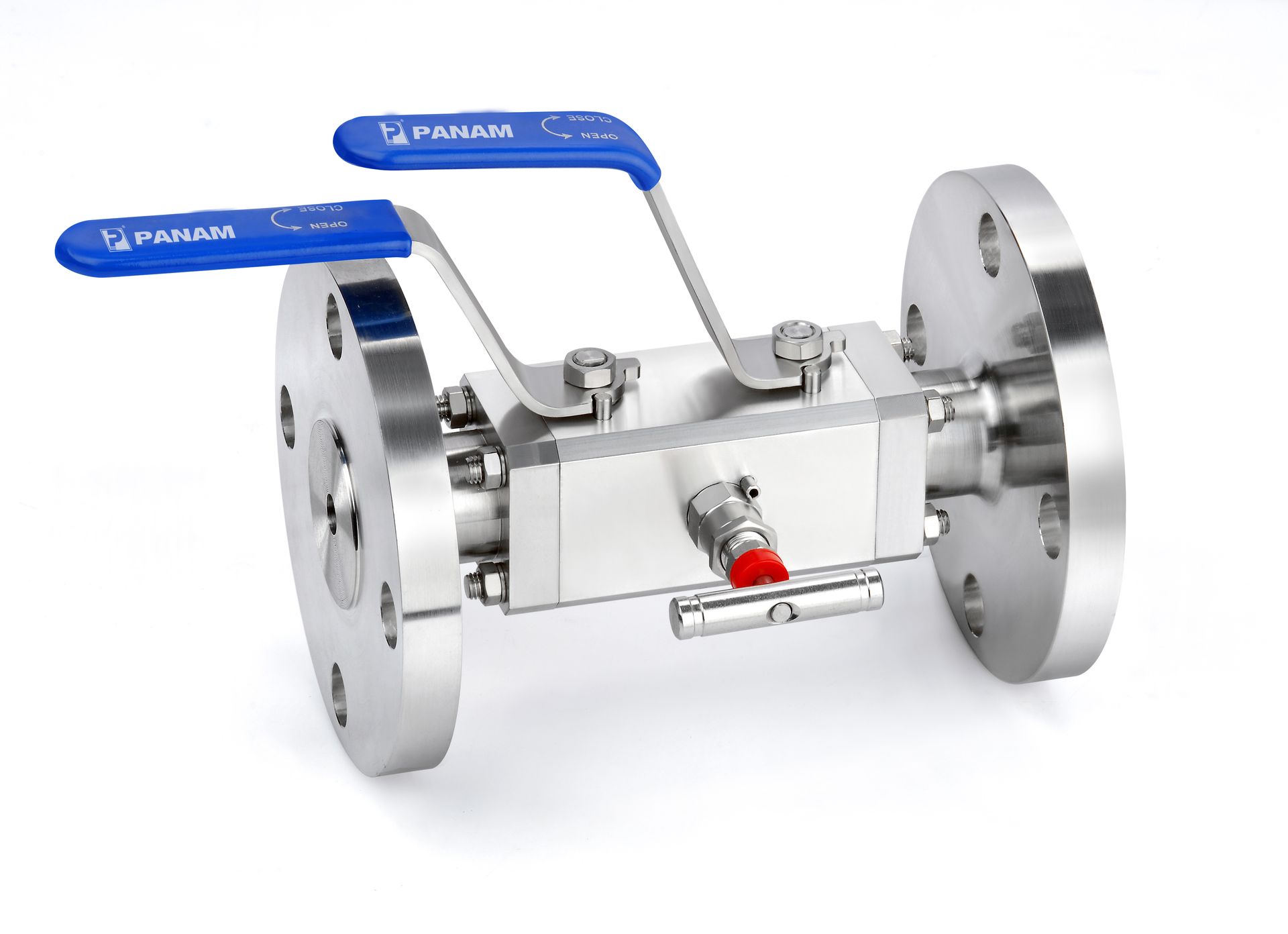

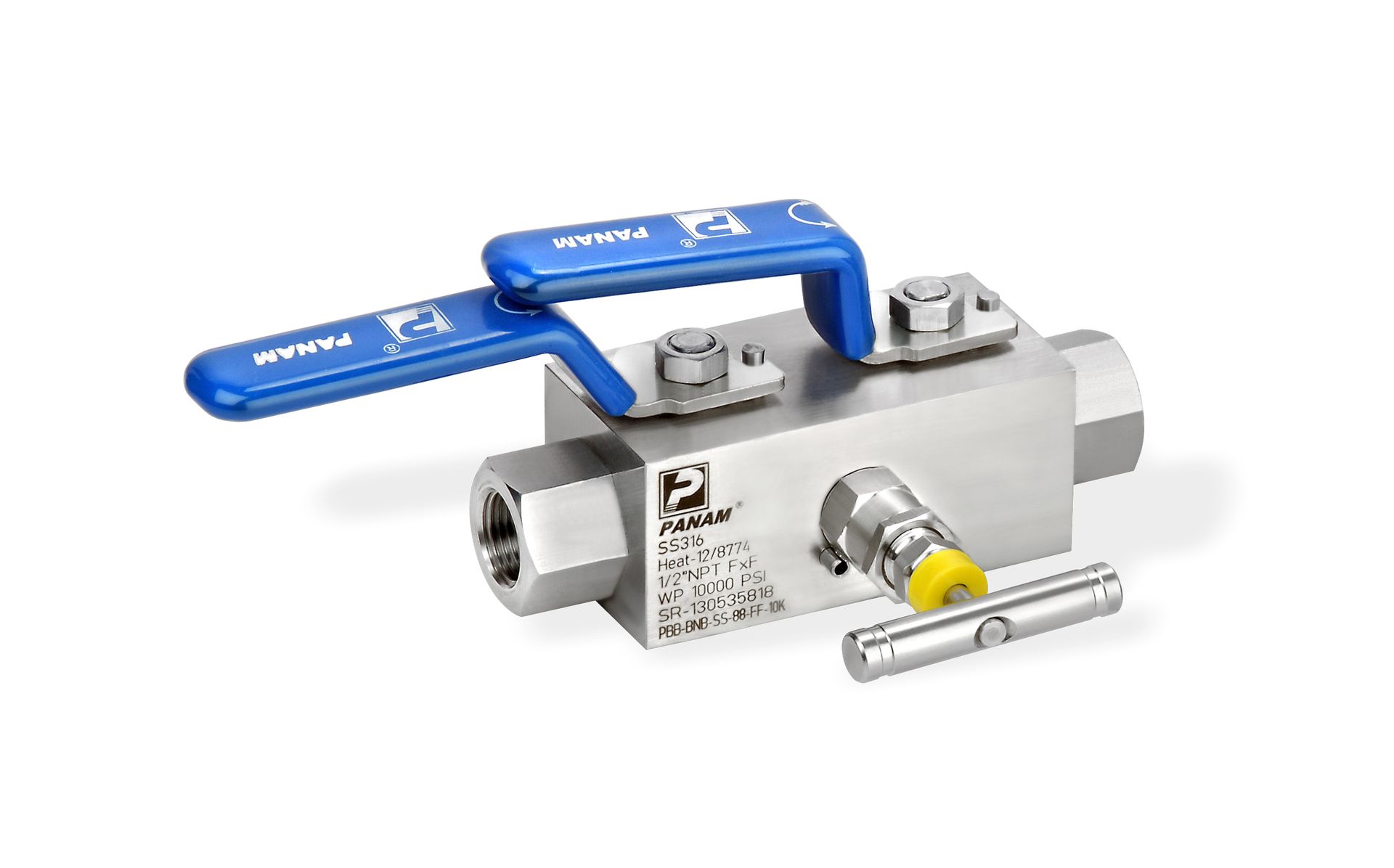

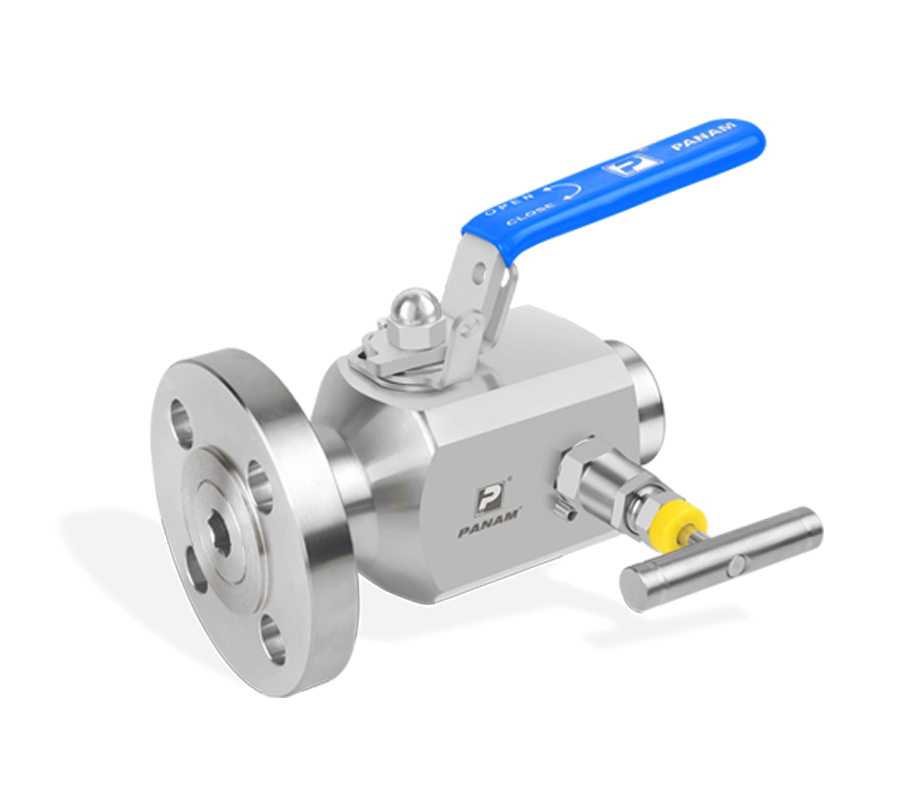

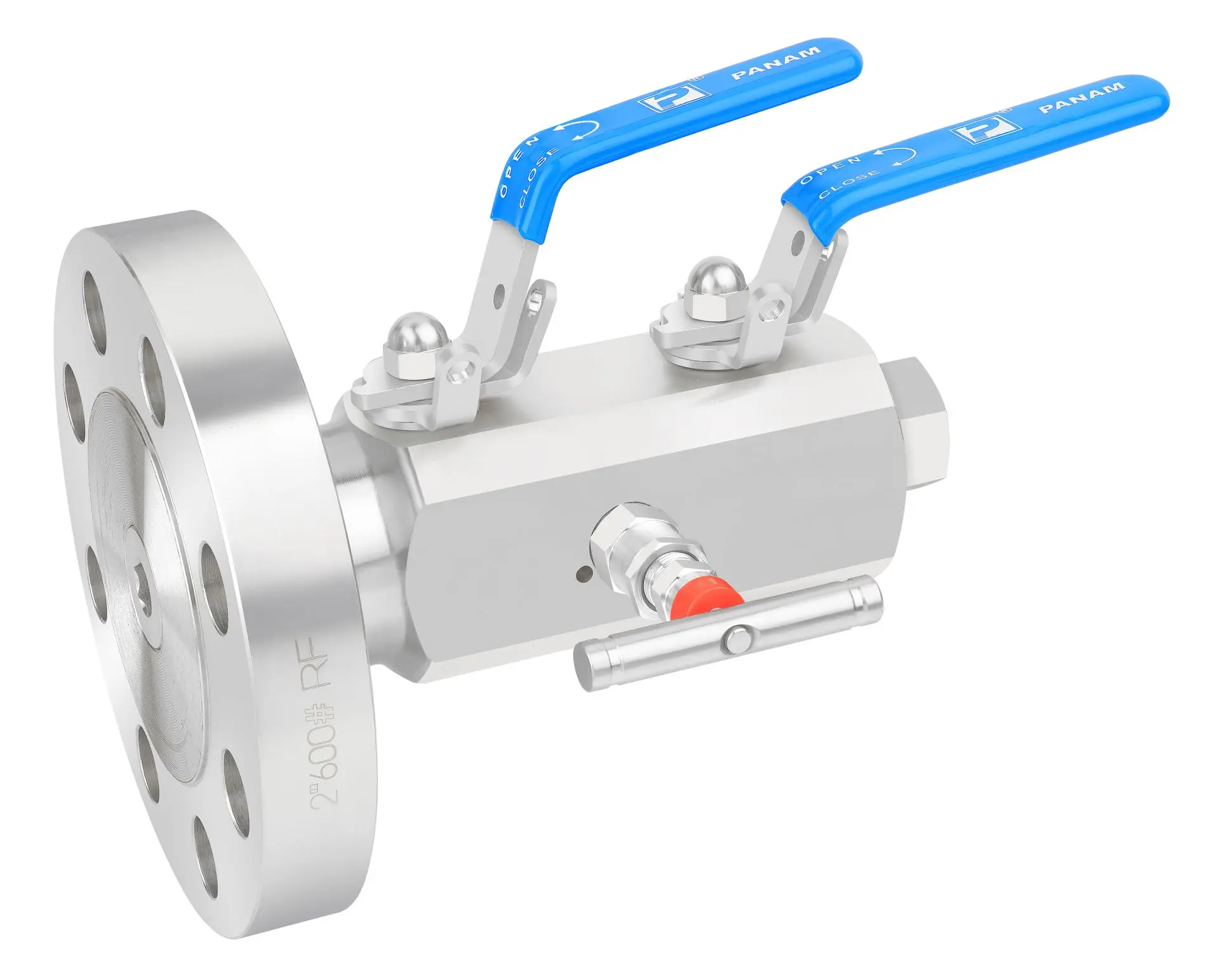

Double Block & Bleed


Double Block & Bleed For Pressure up to 10000 psi (689 bar)

PANAM Double Block & Bleed Valves are designed to provide a safe and efficient solution for isolating and venting pipelines in critical flow control systems. These valves feature a unique design that allows for two independent sealing mechanisms and a dedicated bleed valve to safely vent trapped pressure or fluids, ensuring optimal system safety and integrity. Ideal for high-pressure applications up to 10000 psi (689 bar), these valves are commonly used in industries such as oil & gas, petrochemical, and chemical processing. Manufactured with precision and durability, PANAM Double Block & Bleed Valves deliver superior performance in isolating, blocking, and venting systems.

Features

  • Working Pressure: Up to 10000 psi (689 bar)
  • Connection Range: 1/2" to 3" - Class 150 to 2500 class
  • Connection Type: Flange to Flange, Flange to NPT, NPT to NPT & Monoflange
  • NACE Compliance: Available to meet current revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service


  Download Catalogue    Send Enquiry

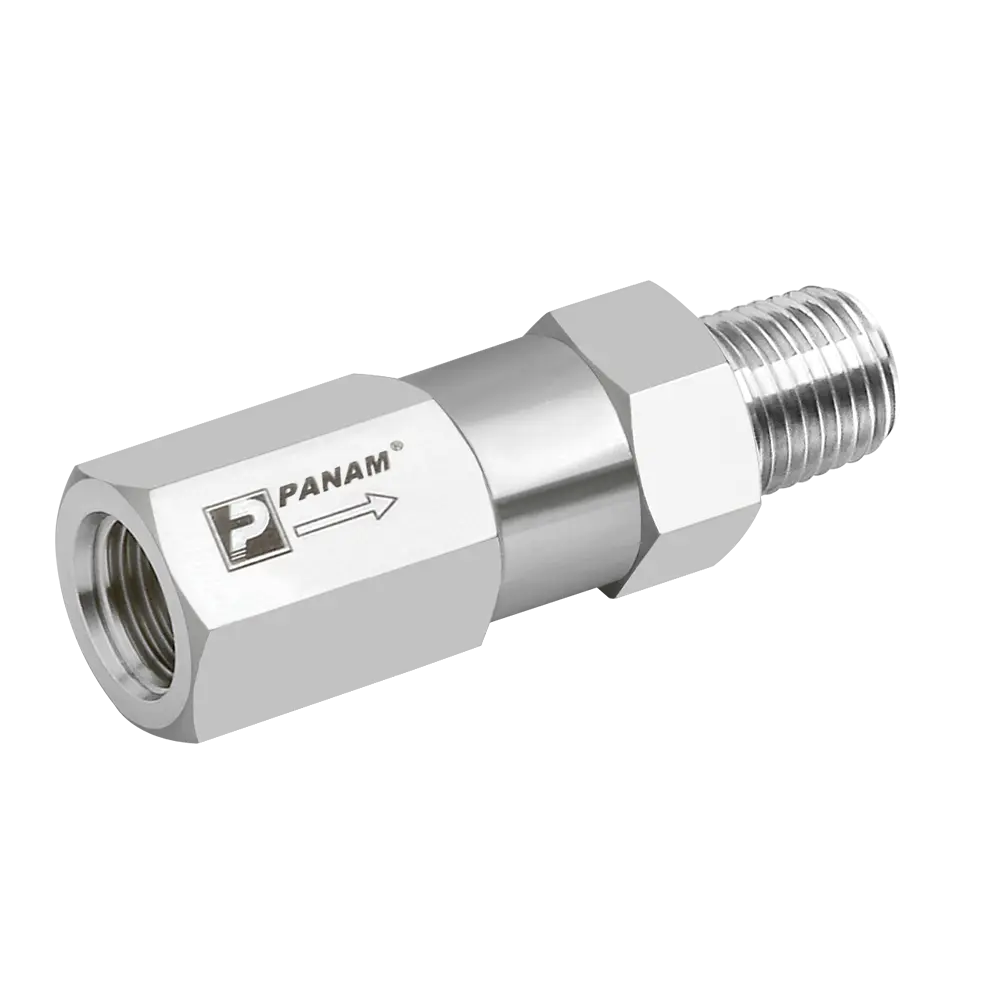

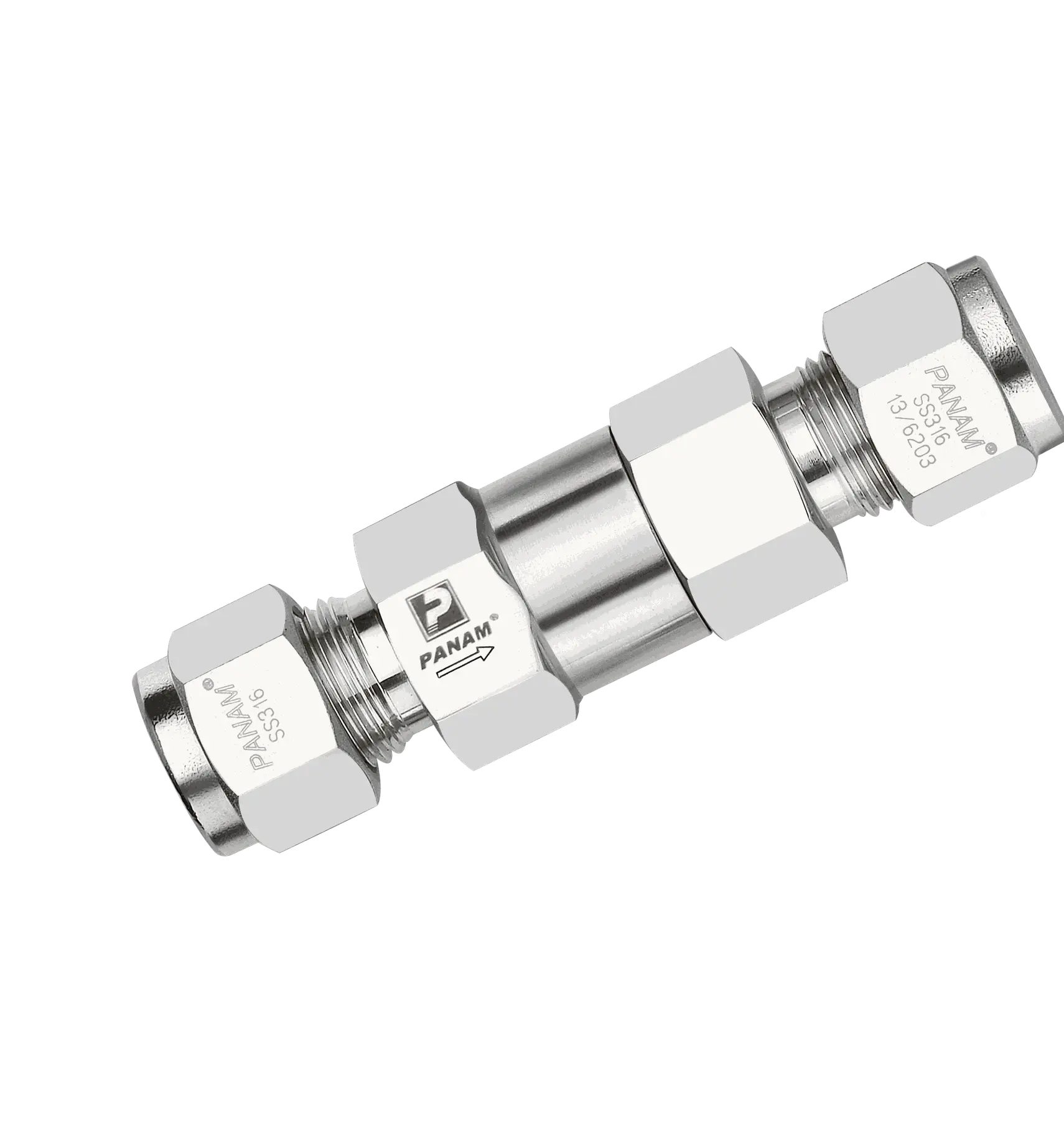

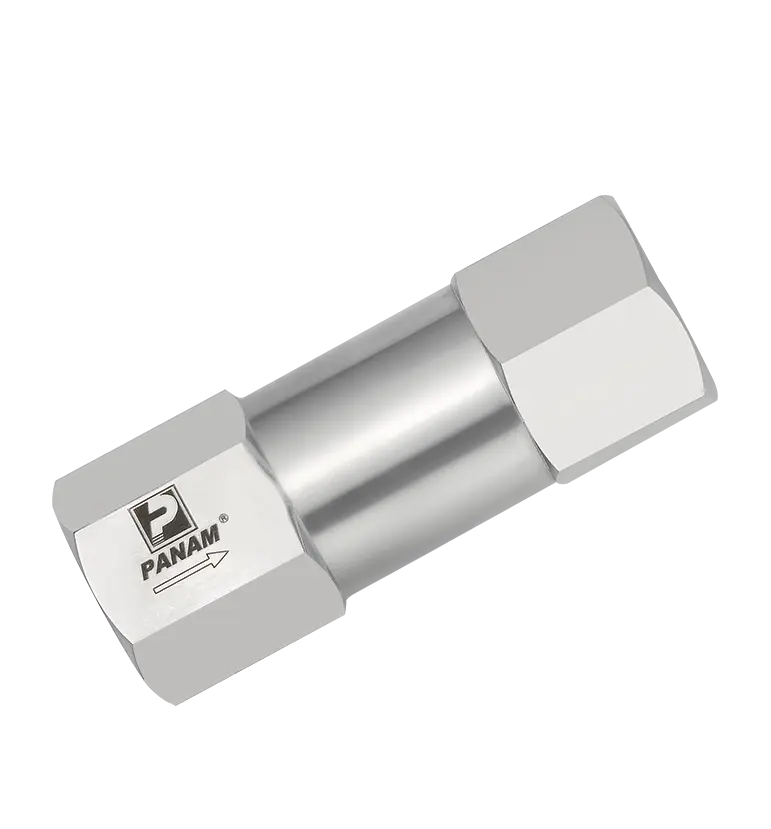

Check Valves


Check Valves For Pressure up to 6000 psi (413 bar)

PANAM Check Valves are designed to provide reliable, automatic backflow prevention in high-pressure systems up to 6000 psi (413 bar). These valves allow fluid to flow in one direction while automatically preventing reverse flow, making them an essential component in safeguarding pipelines, pumps, and process systems. Ideal for use in applications across industries such as oil & gas, petrochemical, and general fluid handling, PANAM Check Valves are engineered for durability, high performance, and long-lasting reliability. Each valve undergoes rigorous factory testing to ensure its integrity and functionality under pressure.

Features

  • Working Pressure: Up to 10,000 psi (689 bar)
  • Connection Sizes: Up to 1"
  • Connection Type: Male & Female NPT , BSPT , BSPP, Metric & PANAM Tube Fittings for flexible installation
  • Cracking Pressure: 1/3, 1, 5, 10, 25, 50, 75 & 100 psi
  • NACE Compliance: Available to meet the latest revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service


  Download Catalogue    Send Enquiry

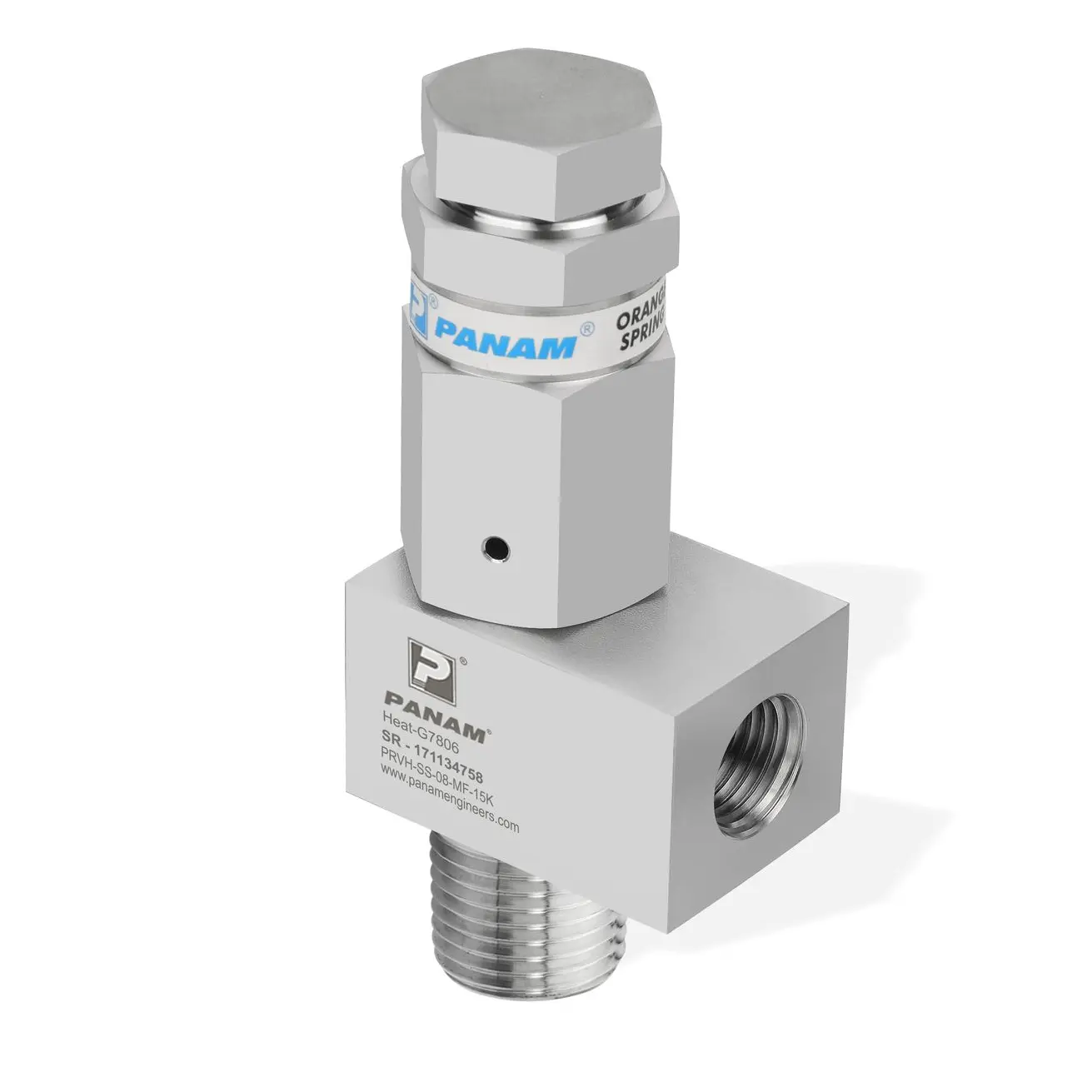

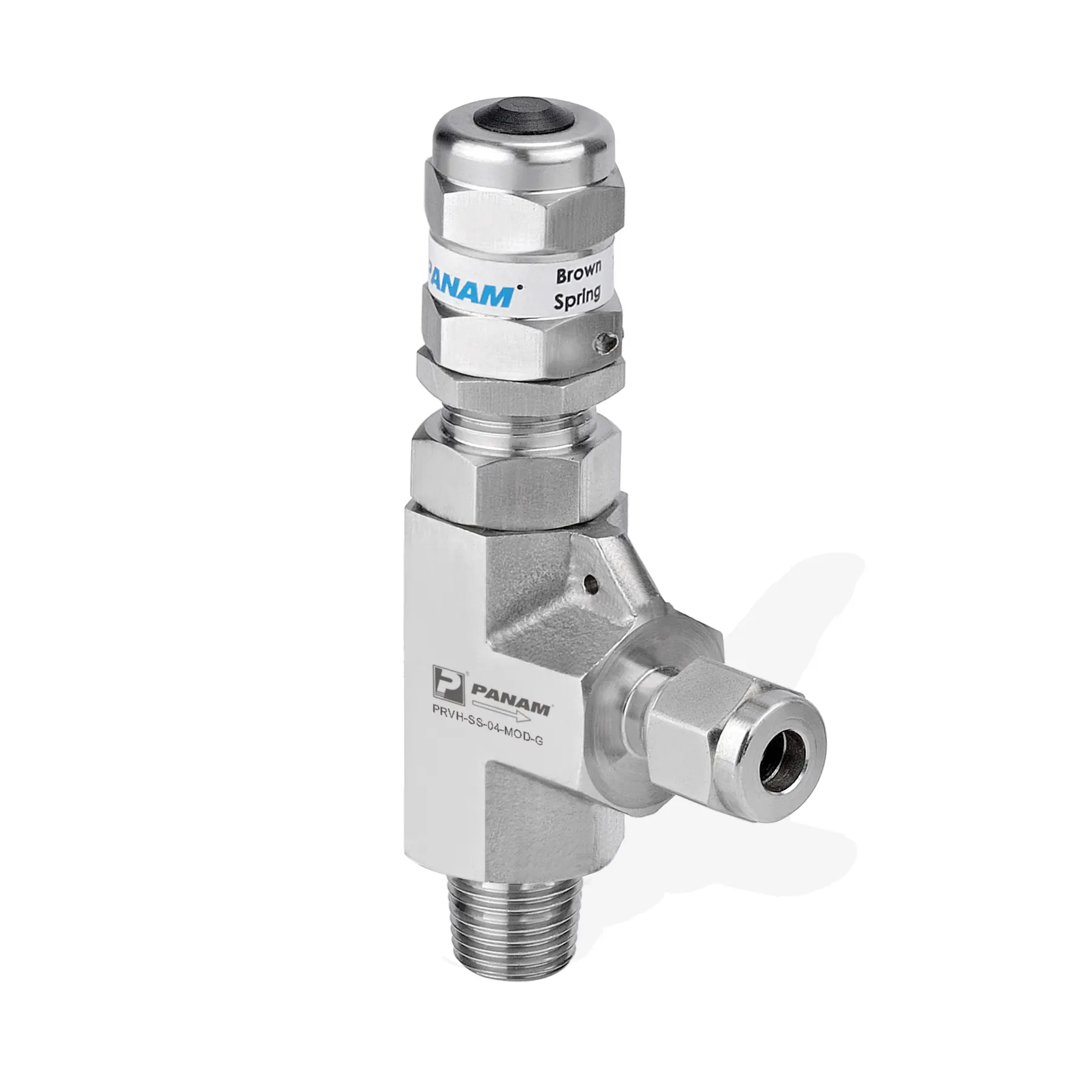

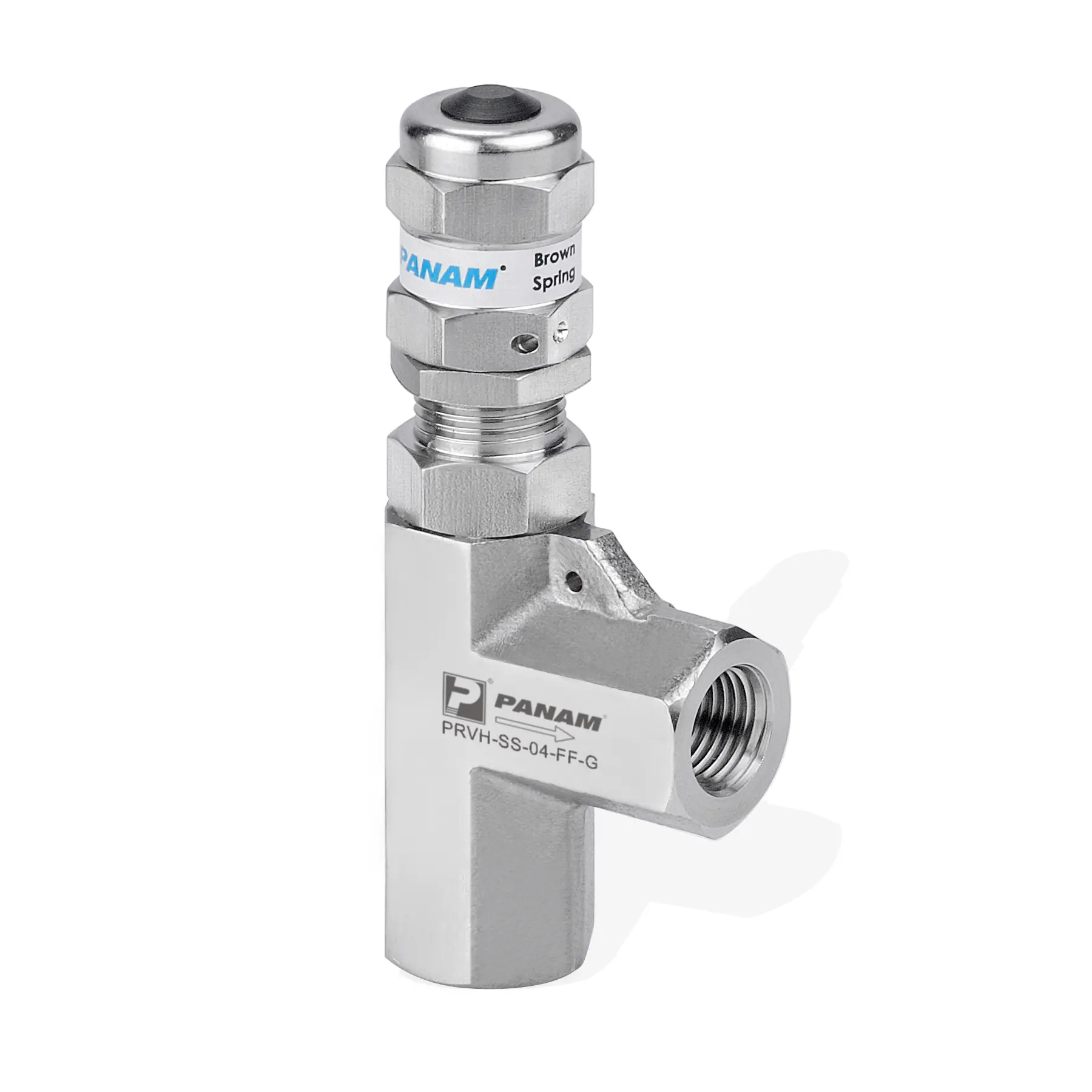

Relief Valves


Relief Valves For Pressure up to 15,000 psi (1034 bar)

PANAM Relief Valves are designed to provide a critical safety function in high-pressure systems by automatically releasing pressure when it exceeds a preset threshold. These valves are essential for protecting pipelines, equipment, and personnel in a wide range of industries, including oil & gas, chemical processing, and power generation. PANAM Relief Valves ensure that system pressure remains within safe operating limits, preventing potential damage to critical infrastructure. Manufactured with precision and durable materials, these valves offer reliable and efficient operation in pressures up to 15,000 psi (1034 bar). Each valve undergoes rigorous factory testing to guarantee optimal performance and safety.

Features

  • Working Pressure: Up to 15,000 psi (1034 bar)
  • Connection Sizes: 1/4", 3/8", 1/2", 9/16"
  • Connection Type: Male & Female NPT , BSPT , BSPP, Metric & PANAM Tube Fittings for flexible installation
  • Pressure Setting: Adjustable to precise relief pressure levels to protect system components
  • NACE Compliance: Available to meet the latest revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service


  Download Catalogue    Send Enquiry

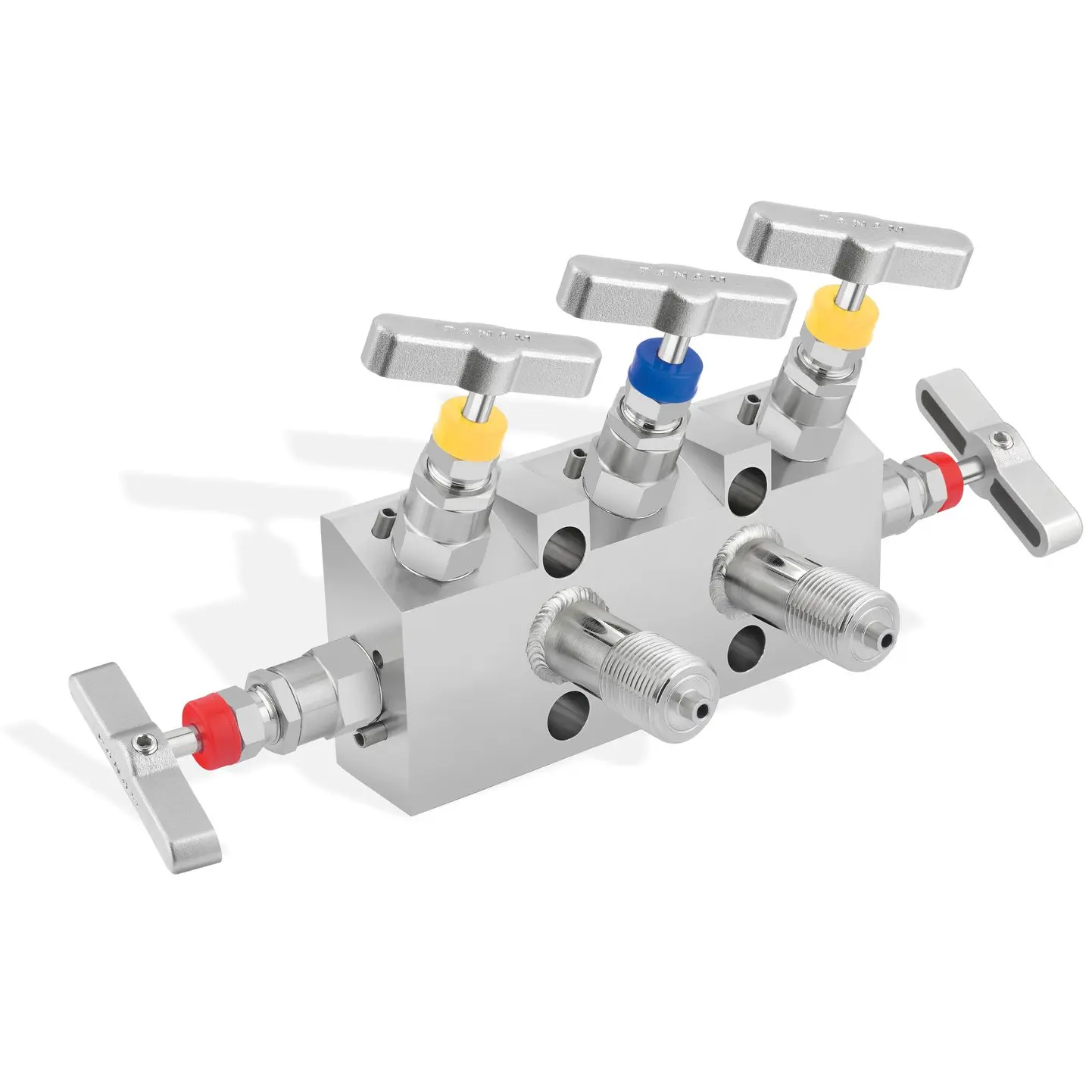

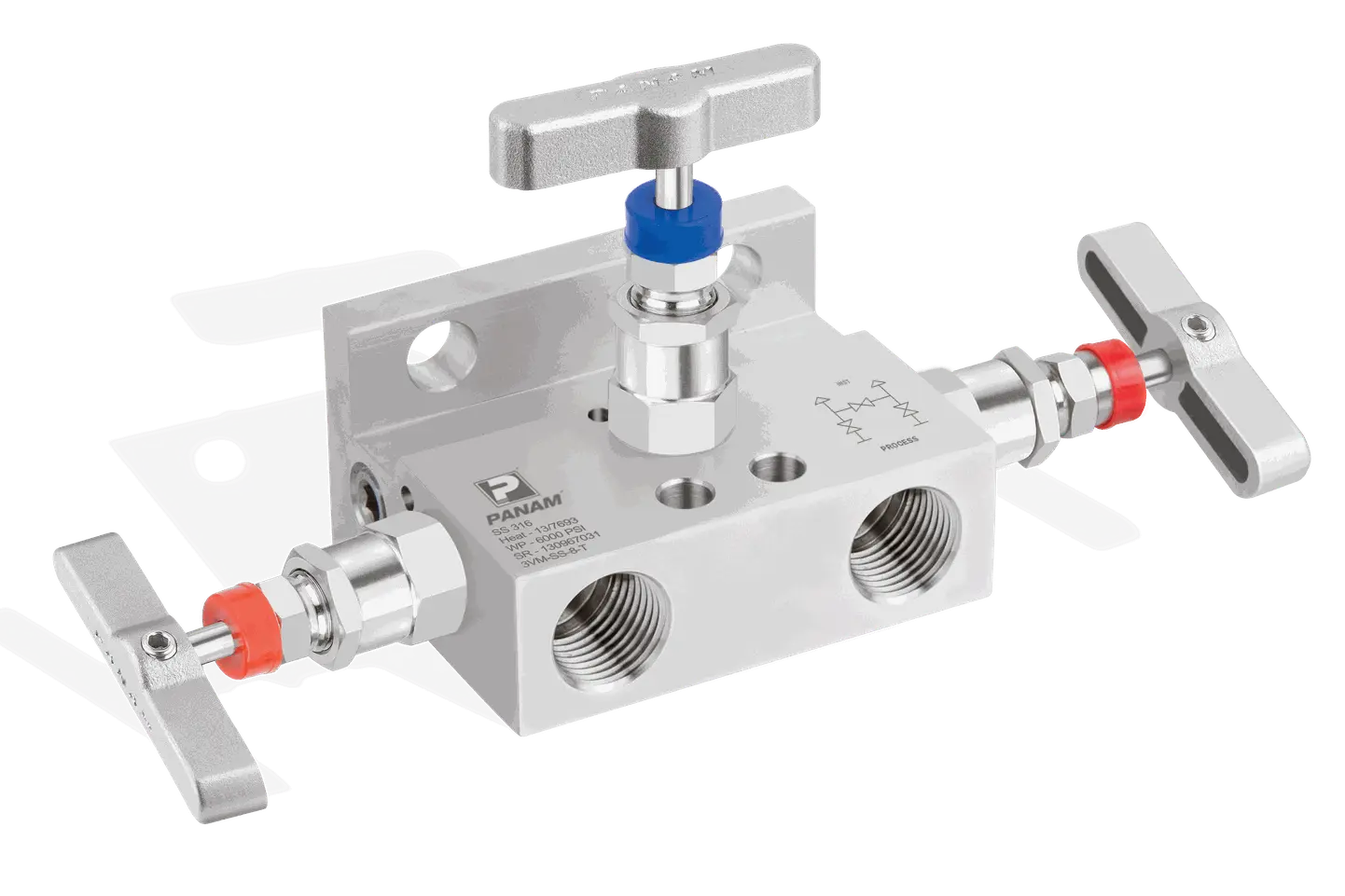

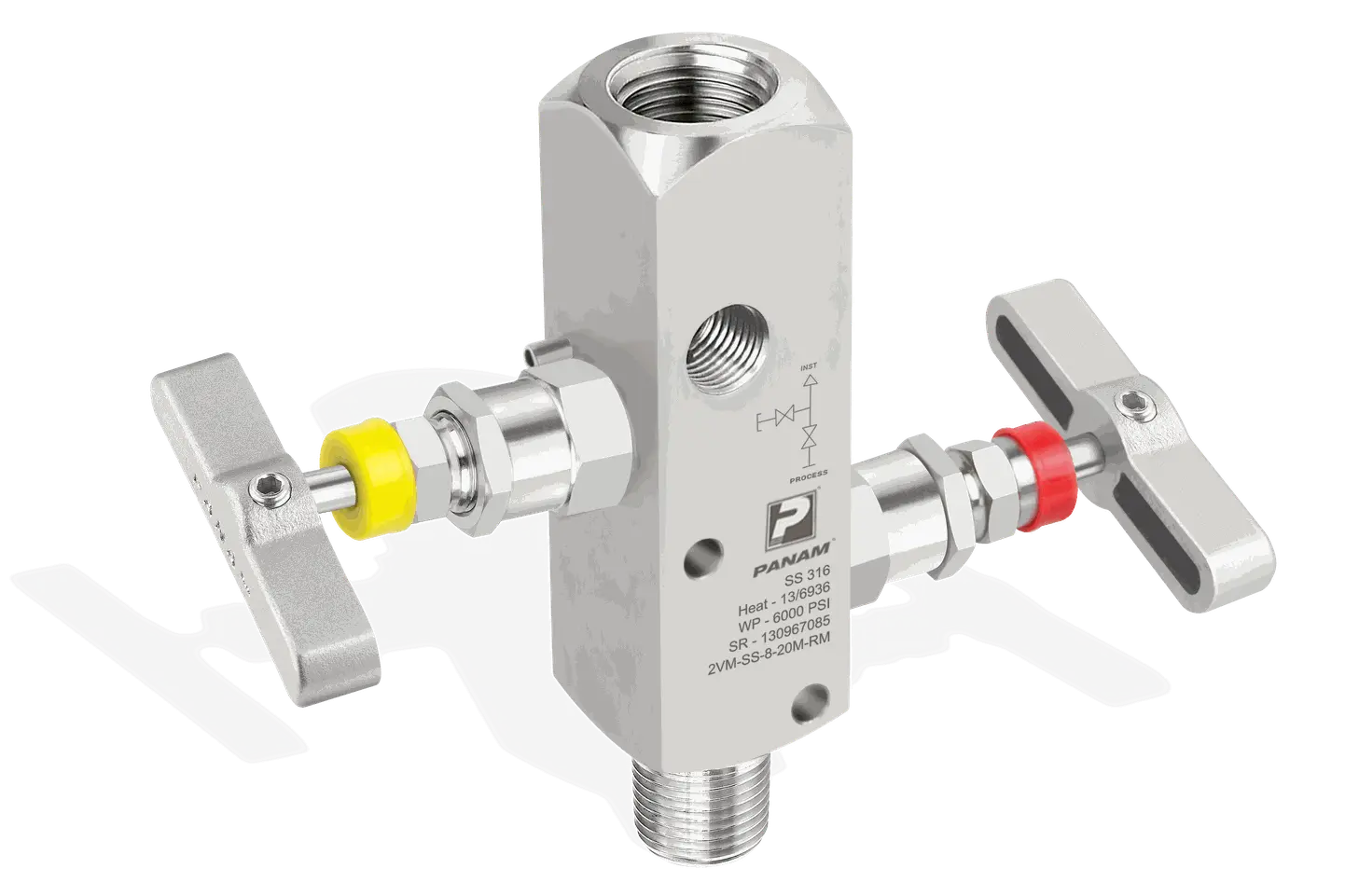

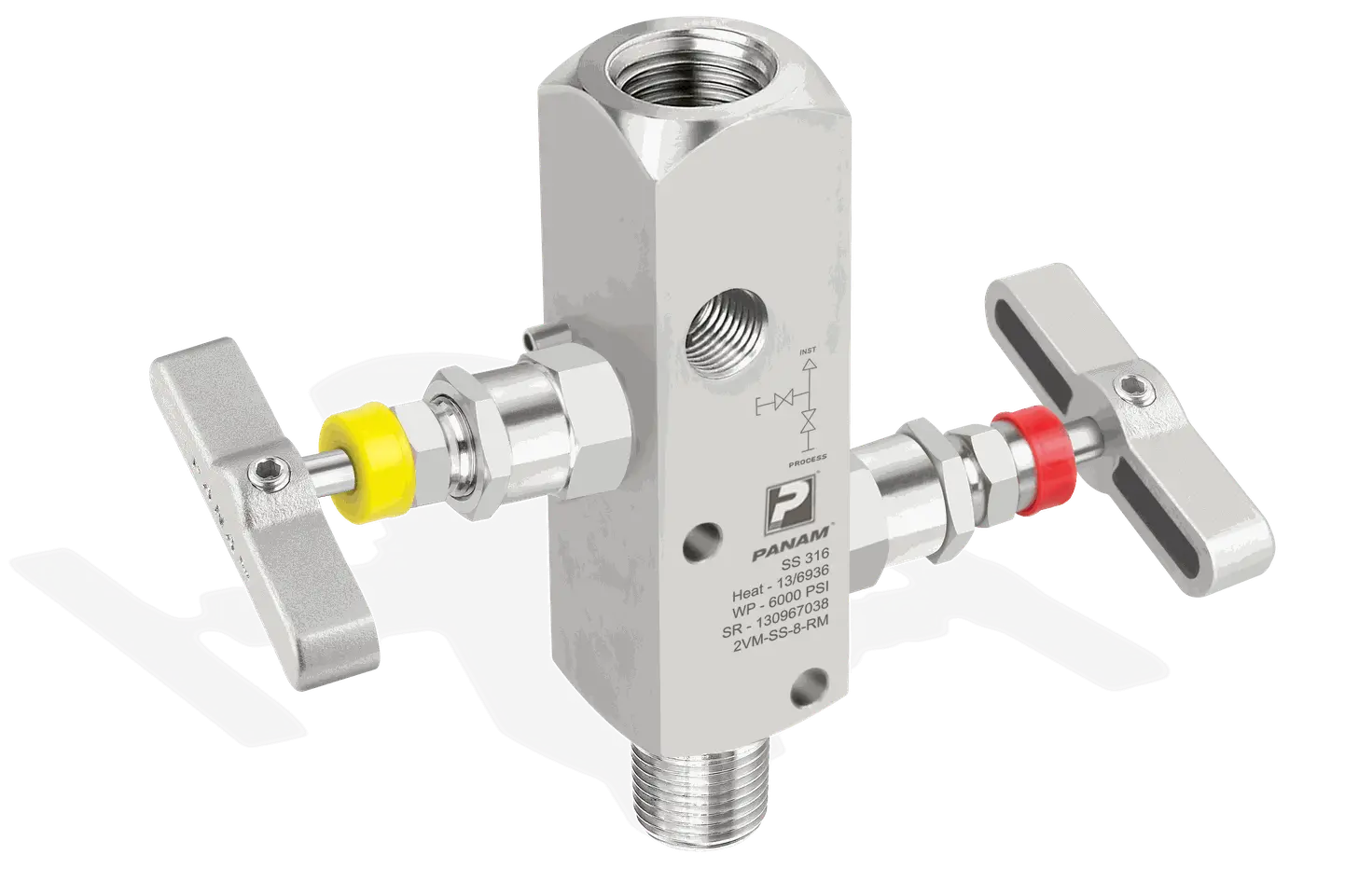

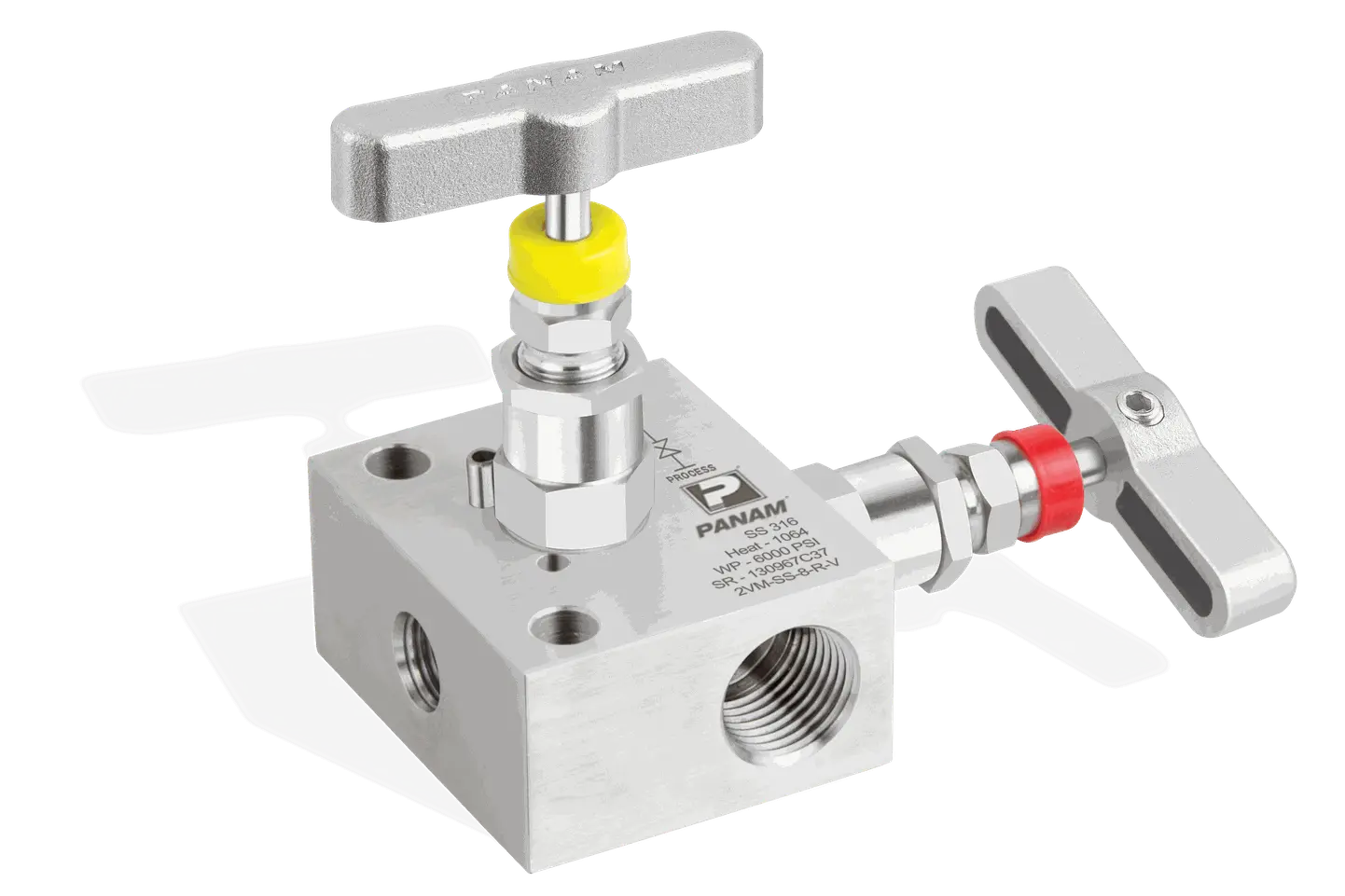

2-3-5 Valve Manifolds


2, 3 & 5 Valve Manifolds For Pressure up to 10,000 psi (689 bar)

PANAM 2, 3, and 5 Valve Manifolds are designed for secure and efficient pressure measurement, isolation, equalization, and venting in instrumentation and process control applications. These manifolds provide a compact, leak-tight solution for connecting pressure transmitters, gauges, and other instrumentation to process lines. With precision machining and high-quality materials, PANAM Valve Manifolds ensure reliable performance in demanding environments with pressures up to 10,000 psi (689 bar). Each manifold undergoes rigorous factory testing to guarantee durability, efficiency, and zero leakage.

Features

  • Working Pressure: Up to 10,000 psi (689 bar)
  • Configurations: Pipe to Pipe, Pipe to Flange, Flange to Flange
    • 2-Valve Manifold
    • 3-Valve Manifold
    • 5-Valve Manifold
  • Bonnet Construction: Precision-machined for low operating torque and extended service life
  • Stem Packing: Below stem threads for enhanced sealing and reduced maintenance
  • Temperature Range:
    • Up to 250°F (121°C) with PTFE packing
    • Up to 1000°F (538°C) with Grafoil packing
  • NACE Compliance: Available to meet current revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service


  Download Catalogue    Send Enquiry

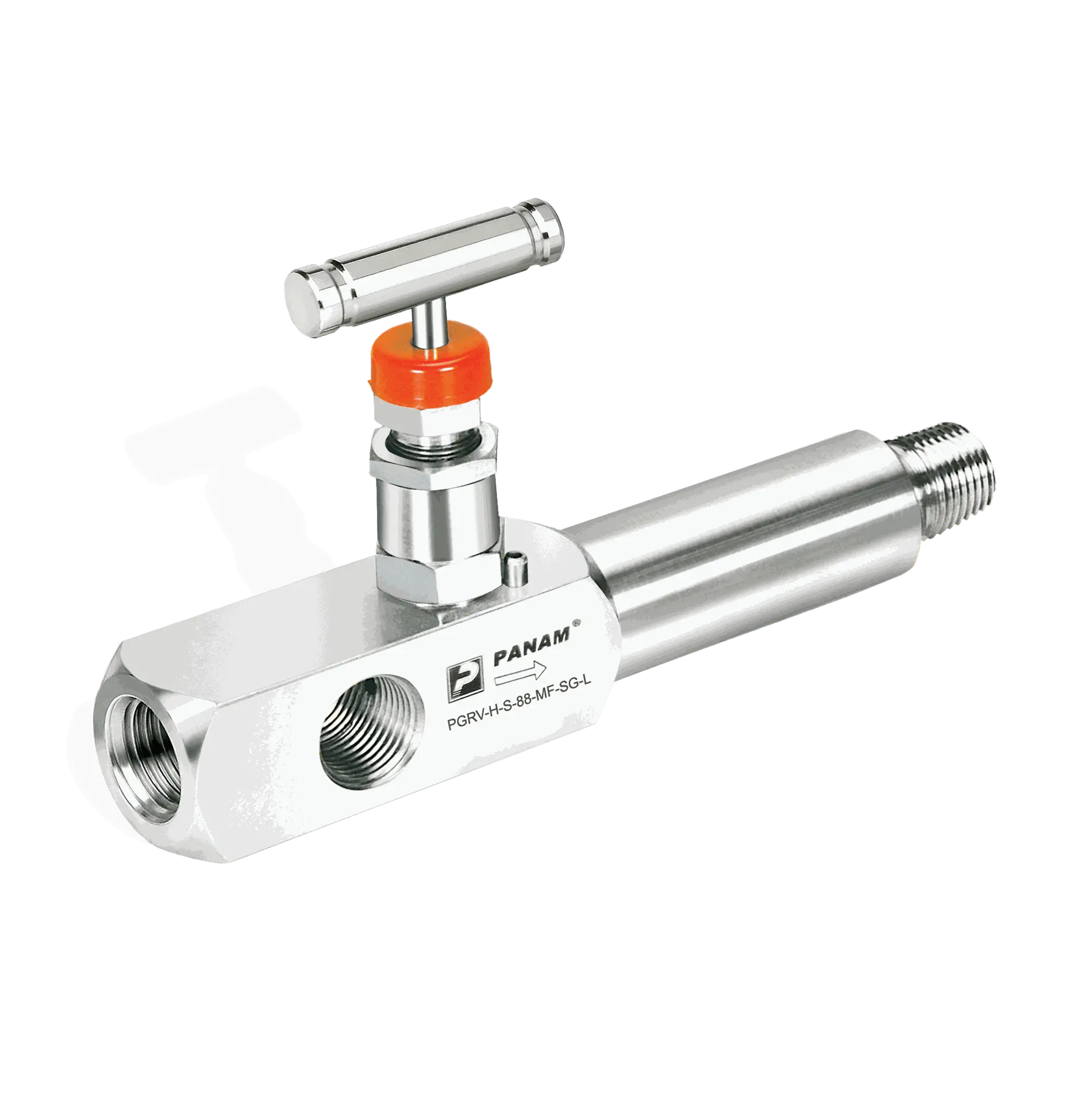

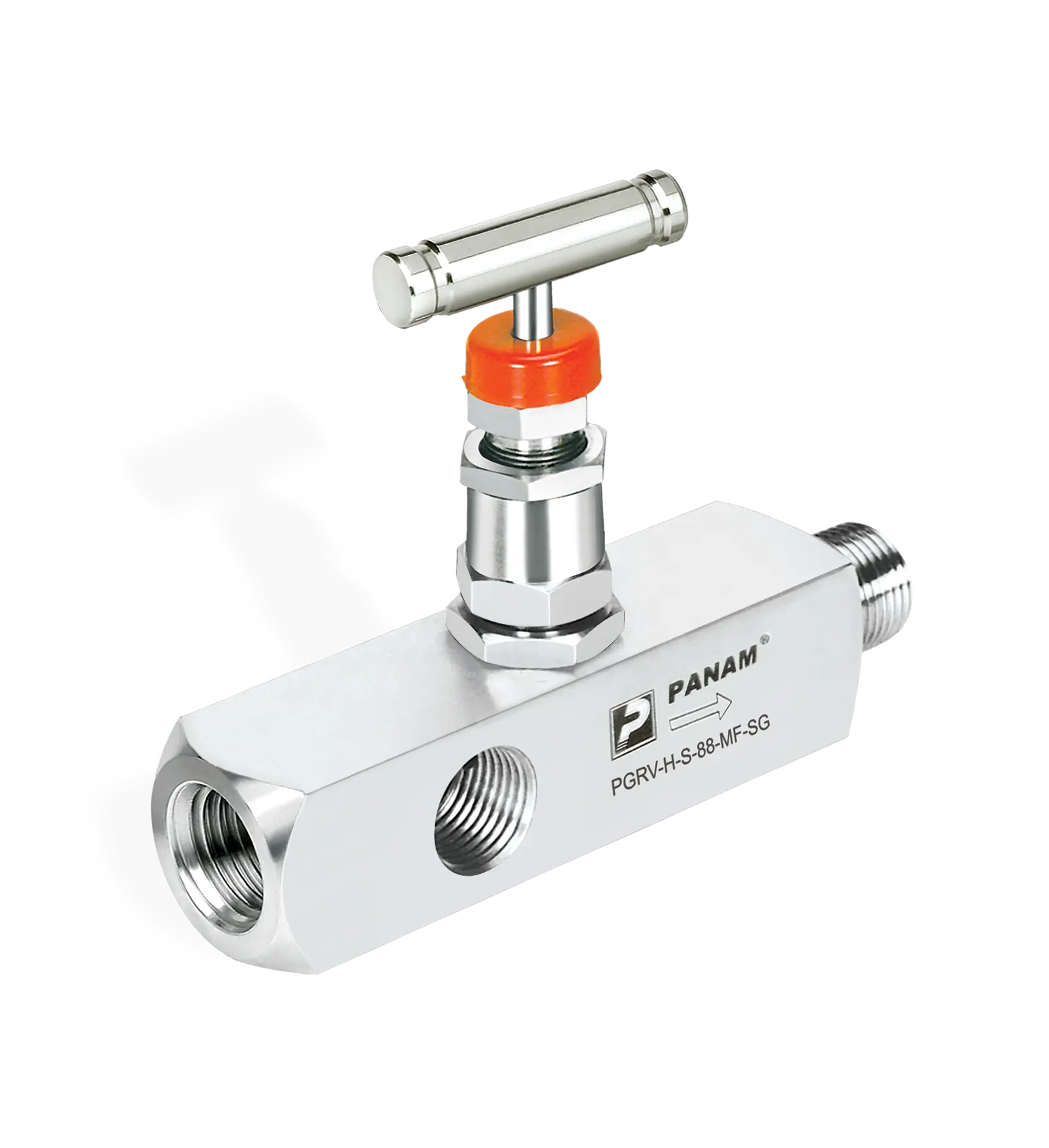

Gauge Root Valve


Gauge Root Valves For Pressure up to 10000 psi (689 bar).

PANAM Gauge Root Valves are specially designed to provide a reliable and compact solution for connecting pressure gauges, pressure switches, and other instrumentation to process lines. These valves ensure precise isolation and safe measurement of pressure in high-pressure applications up to 10000 psi (689 bar). Engineered for durability and leak-tight performance, PANAM Gauge Root Valves minimize installation space while offering superior control and safety in industries such as oil & gas, petrochemical, and process control.


Features

  • Working Pressure: Up to 10000 psi (689 bar)
  • Connection Sizes: Up to 3/4"
  • Temperature Range:
    • Up to 250°F (121°C) with PTFE packing
    • Up to 1200°F (648°C) with Grafoil packing
  • NACE Compliance: Available to meet the latest revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service


  Download Catalogue    Send Enquiry

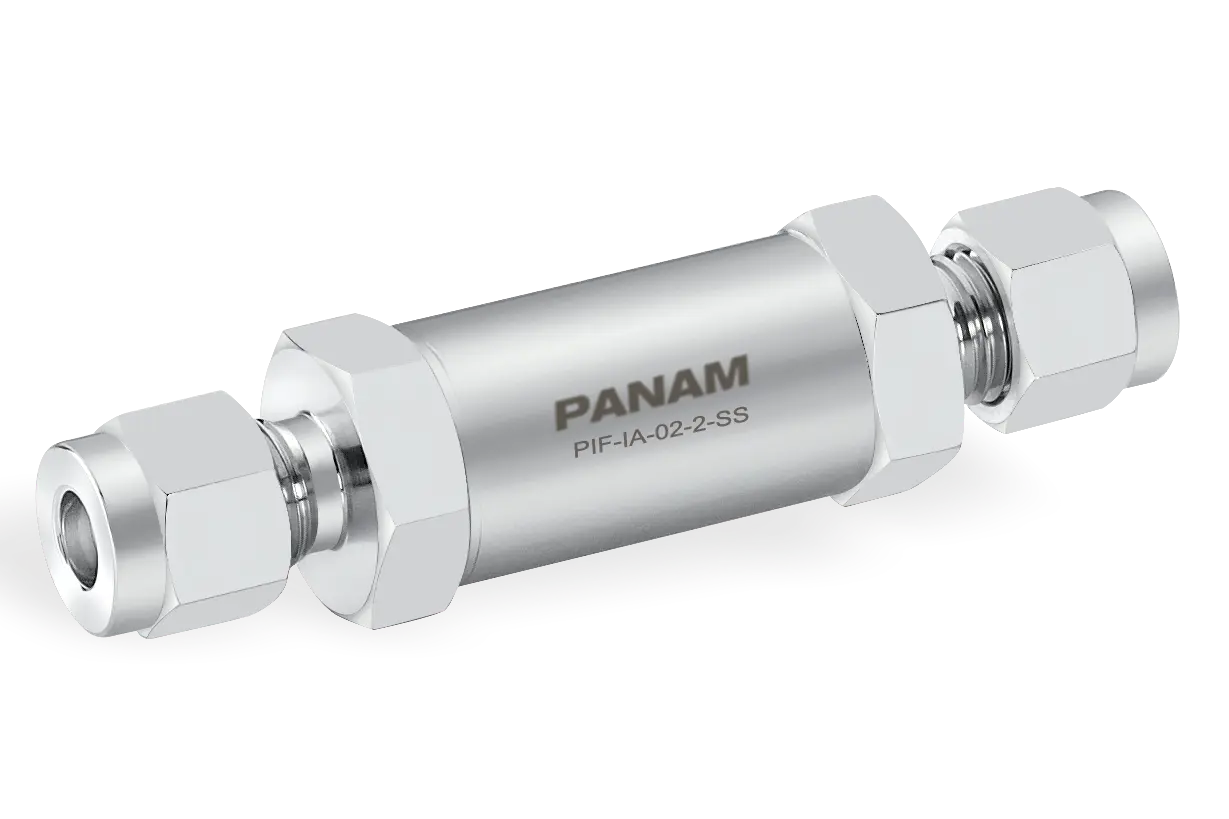

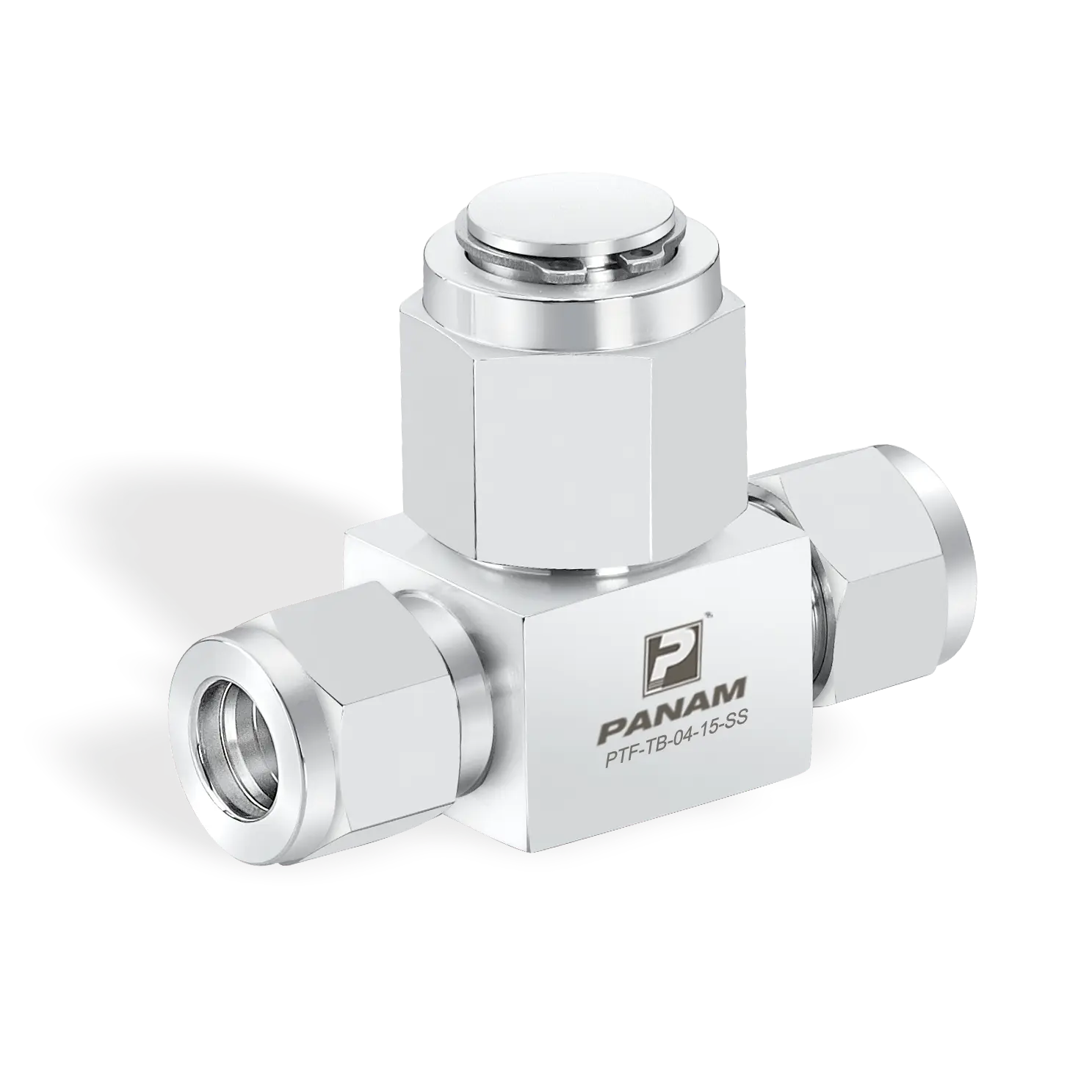

Filters


Filters For Pressure up to 6000 psi (414 bar)

PANAM Filters are designed to remove contaminants and particulates from process fluids and gases, ensuring the protection and optimal performance of high-pressure instrumentation systems. These filters provide efficient filtration in demanding applications up to 6000 psi (414 bar), preventing damage to sensitive components such as valves, gauges, and transmitters. Manufactured with precision and high-quality materials, PANAM Filters offer superior durability, reliability, and ease of maintenance for industries such as oil & gas, chemical processing, and power generation.


Features

  • Working Pressure: Up to 6000 psi (414 bar)
  • Connection Sizes: 1/8" to  1/2" & 3mm OD to 12mm OD
  • Connection Type: Male & Female NPT , BSPT , BSPP, Metric & PANAM Tube Fittings for flexible installation
  • Easy Maintenance: Filter element can be replaced without removing body from system
  • NACE Compliance: Available to meet the latest revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service


  Download Catalogue    Send Enquiry

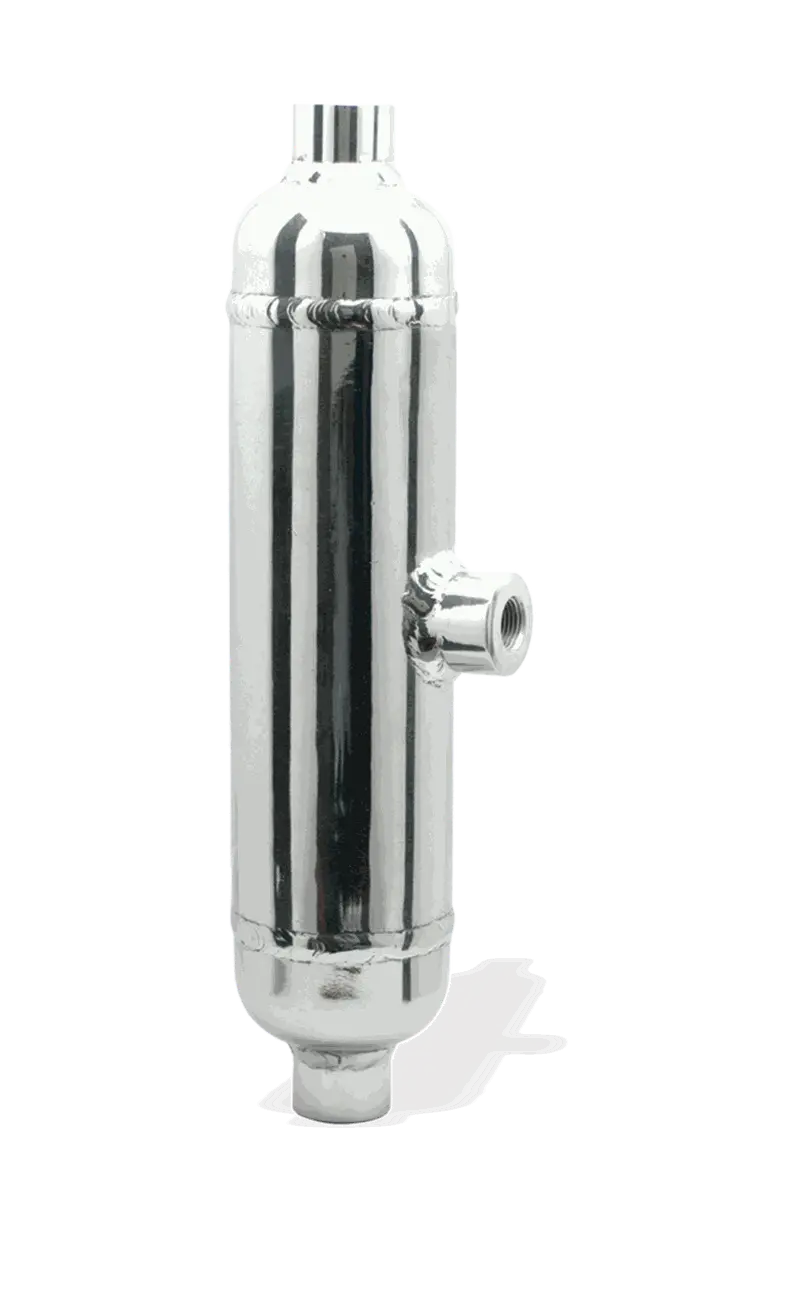

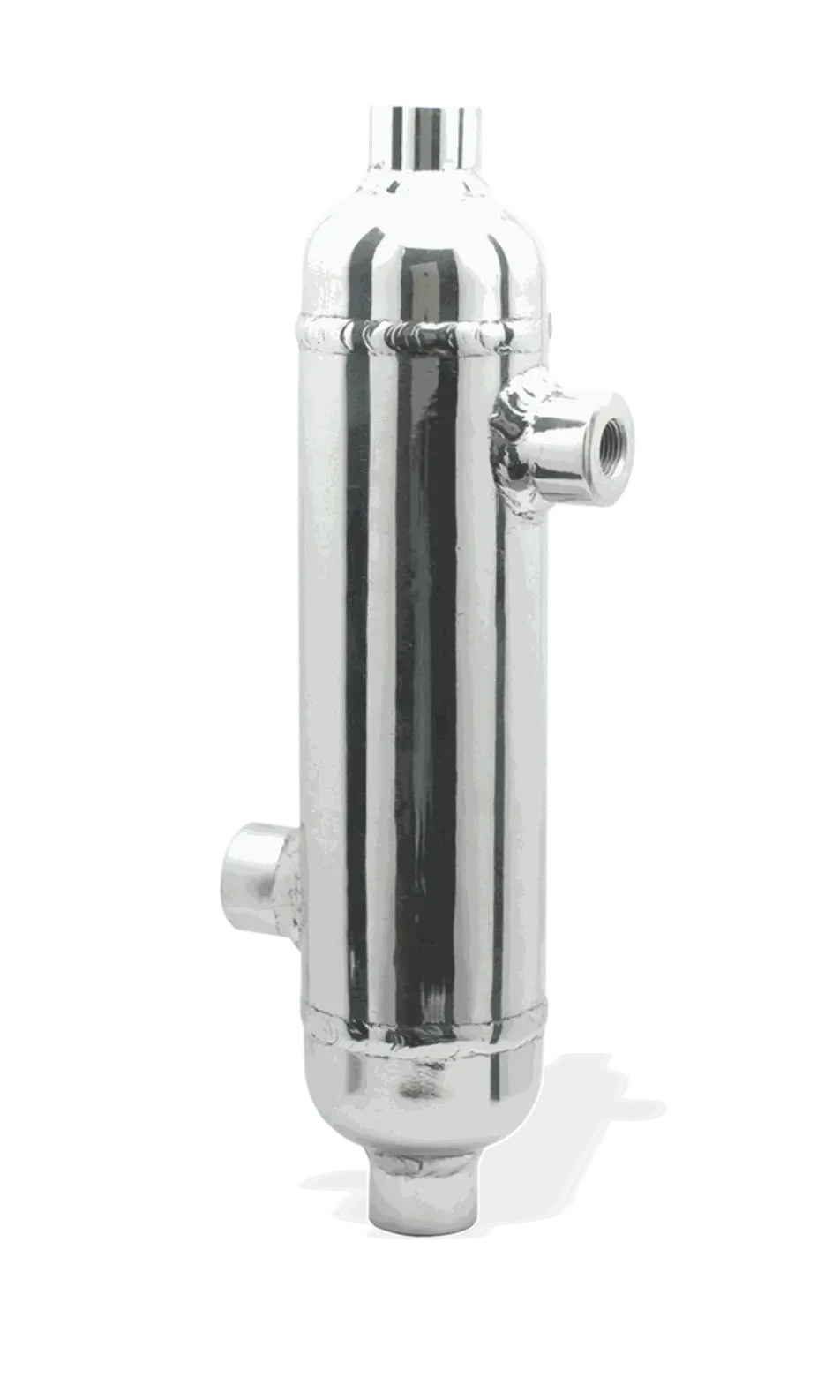

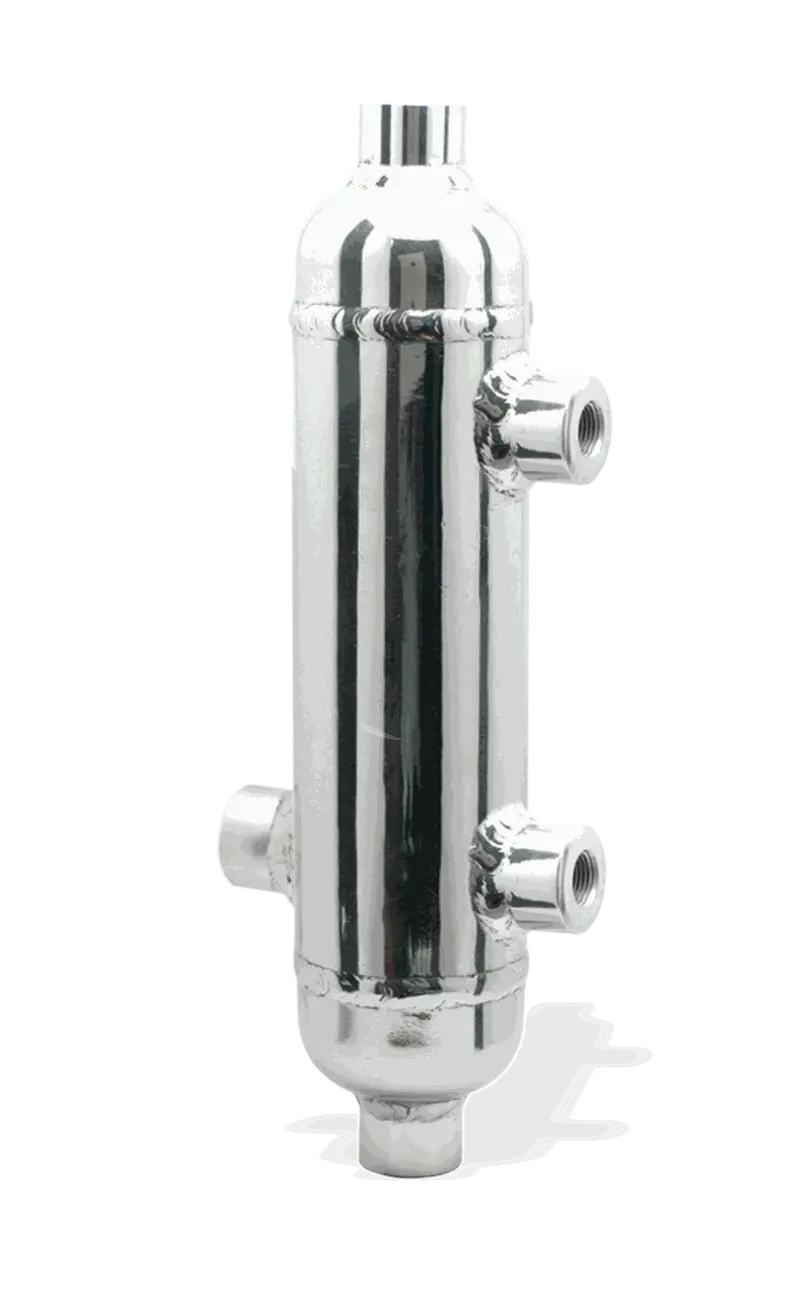

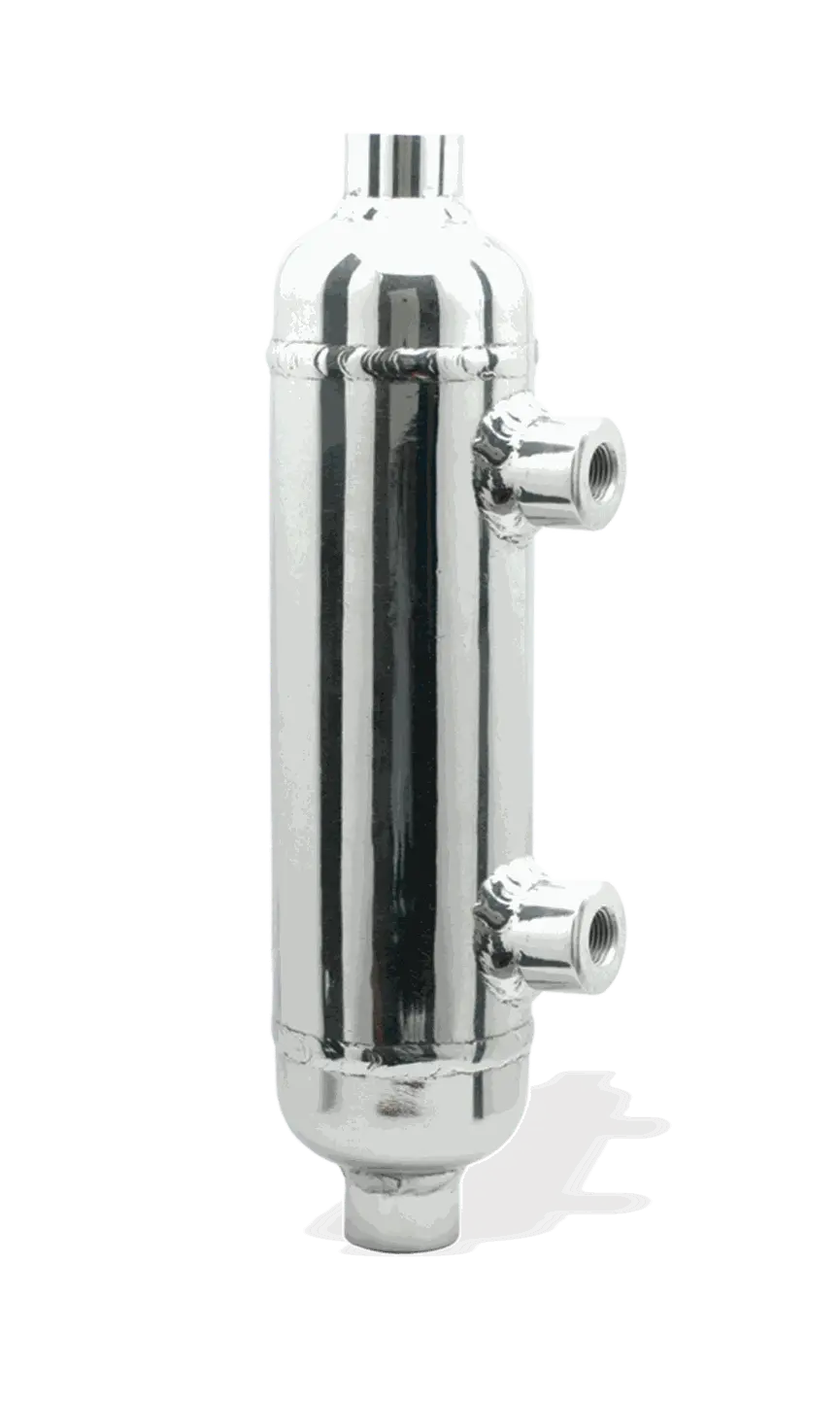

Condensate Pots


Condensate Pots For Pressure up to 6000 psi (414 bar)

PANAM Condensate Pots are designed to improve the accuracy and reliability of pressure measurement in steam, gas, and fluid applications by collecting and separating condensate from the process line. These pots ensure a steady and consistent pressure signal for instrumentation, preventing damage and inaccuracies caused by condensate buildup. Suitable for high-pressure applications up to 6000 psi (414 bar), PANAM Condensate Pots are widely used in industries such as oil & gas, power generation, and chemical processing. Manufactured from high-quality materials, they provide exceptional durability and corrosion resistance for long-term operation.


Features

  • Working Pressure: Up to 6000 psi (414 bar)
  • Pipe size: NPS 2 (DN15), NPS 3 (DN80), NPS 4 (DN100) or larger (upon request).
  • Pipe Gauge:  40, 80, 160, XXS - seamless tube.
  • Material - 316 SS, 304 SS, Carbon Steel. Other materials upon request.
  • NACE Compliance: Available to meet the latest revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service


  Download Catalogue    Send Enquiry

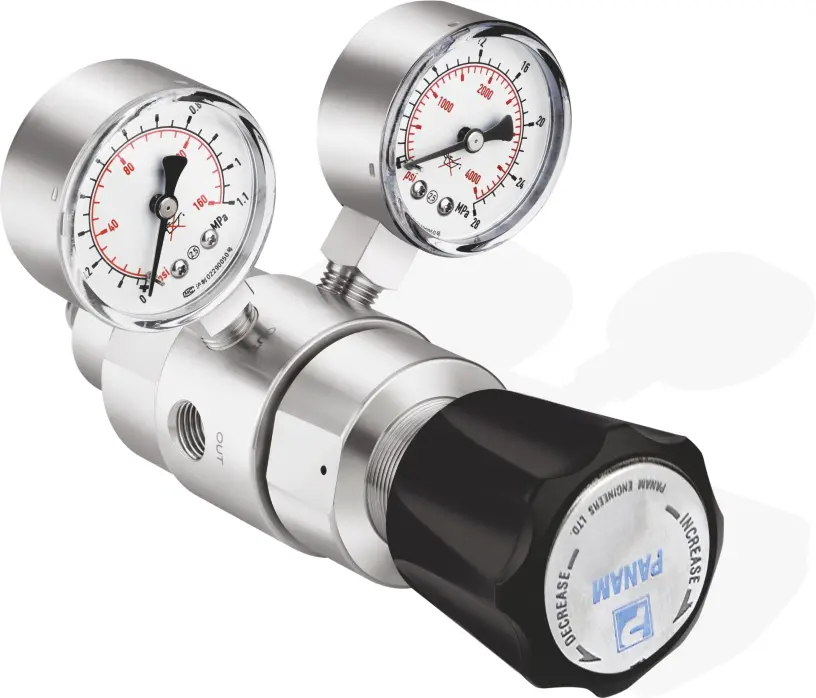

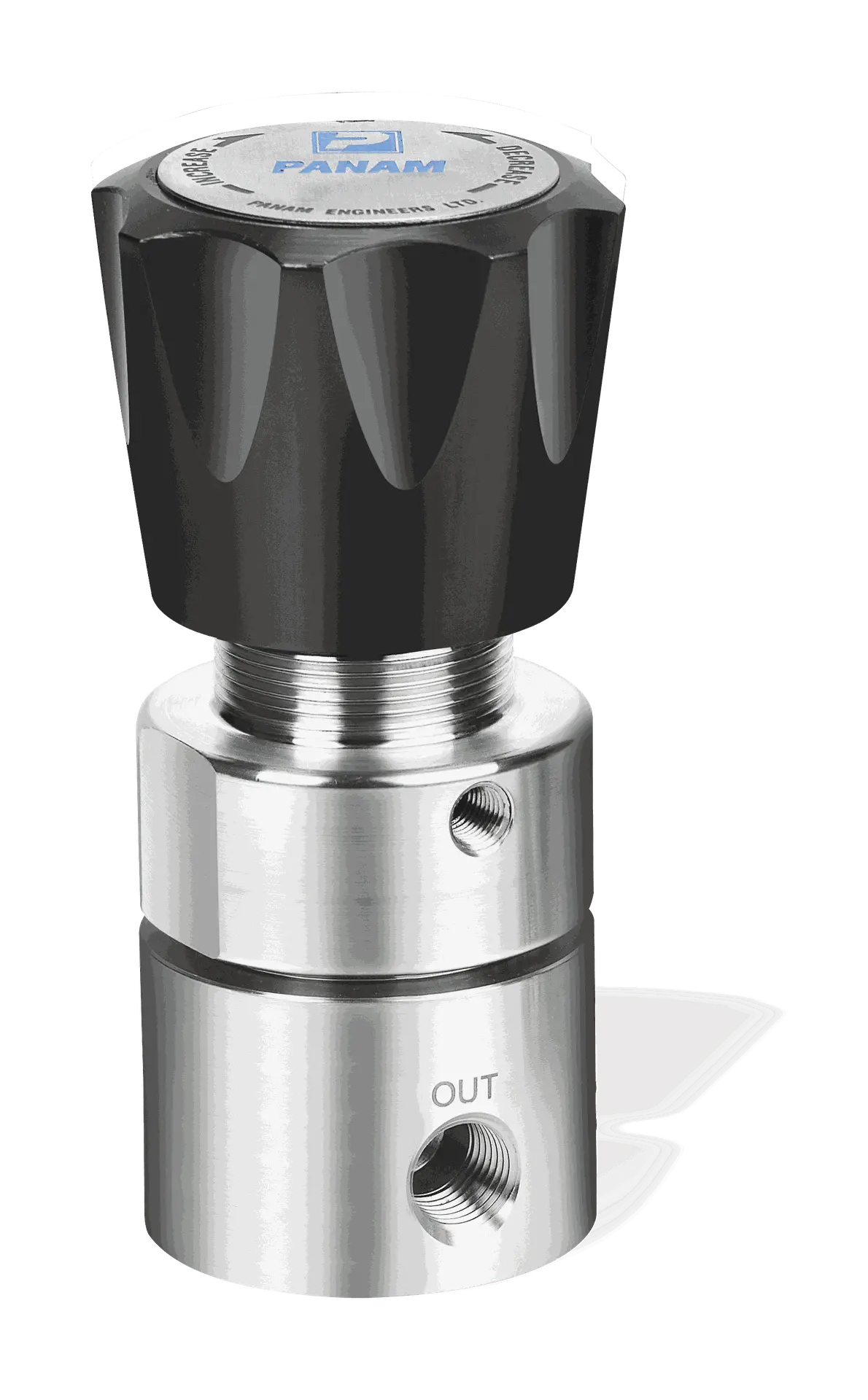

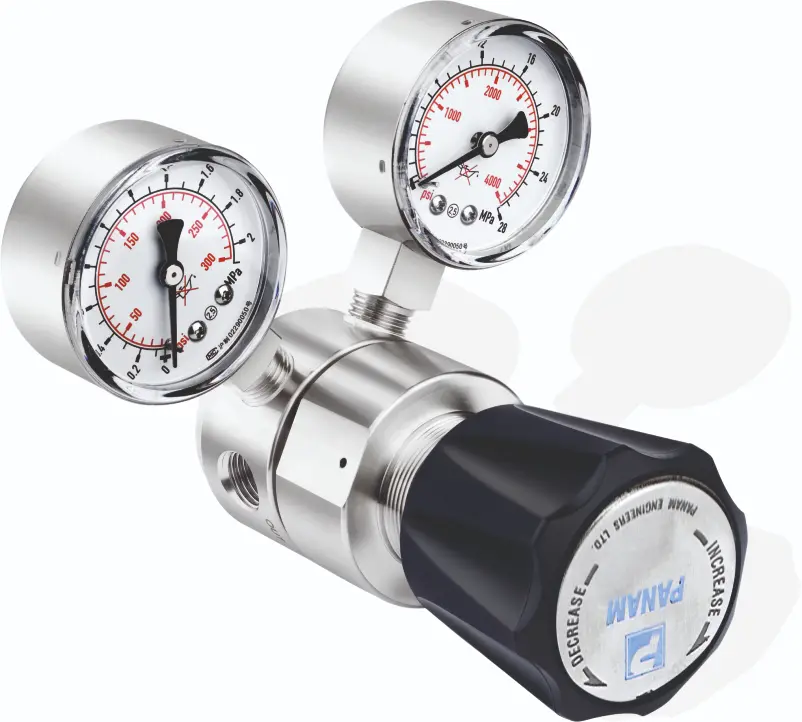

Pressure Regulators


Pressure Regulators For Pressure up to 6,000 psi (414 bar)

PANAM Pressure Regulators are designed to precisely control and maintain downstream pressure in high-pressure gas and fluid systems. These regulators ensure consistent and stable pressure output, preventing fluctuations that could affect process efficiency and equipment performance. Suitable for applications up to 6,000 psi (414 bar), PANAM Pressure Regulators are widely used in industries such as oil & gas, chemical processing, power generation, and instrumentation. Manufactured from high-quality materials, they offer superior durability, corrosion resistance, and long-term reliability in demanding environments.


Features

  • Working Pressure: Up to 6,000 psi (414 bar)
  • Body Material: SS 316 & Brass Materials
  • Inlet & Outlet Connections: 1/4"NPT
  • Regulation Type: Available in single-stage and dual-stage & back pressure configurations for precise pressure control
  • Flow Capacity: Designed to handle high flow rates with minimal pressure drop
  • NACE Compliance: Available to meet the latest revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service


  Download Catalogue    Send Enquiry

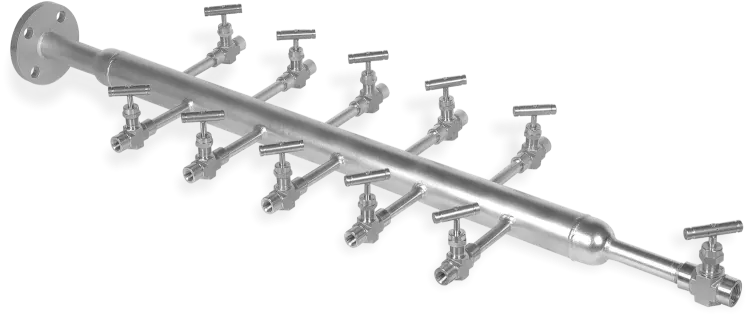

Air Headers


Air Headers For Pressure up to 6,000 psi (414 bar)​

PANAM Air Headers are designed to efficiently distribute compressed air from a single source to multiple control devices in various applications with Ball Valves & Needle Valves  for distribution lines and drain port. PANAM Engineered Air Headers are build to handle pressures up to 6,000 psi (414 bar).




Features

  • Working Pressure: Up to 6,000 psi (414 bar)
  • Maximum Number of Outlets - 20
  • Minimum Number of Outlets - 4
  • Material Options: SS 316 as a standard material of construction. Other materials are available upon request.
  • Leak-Tight Performance: Testing of every valve under nitrogen condition at the maximum working pressure.
  • NACE Compliance: Available to meet the latest revisions of NACE MR0175 and NACE MR0103 for Sour Gas Service


  Download Catalogue    Send Enquiry
