Needle Valve

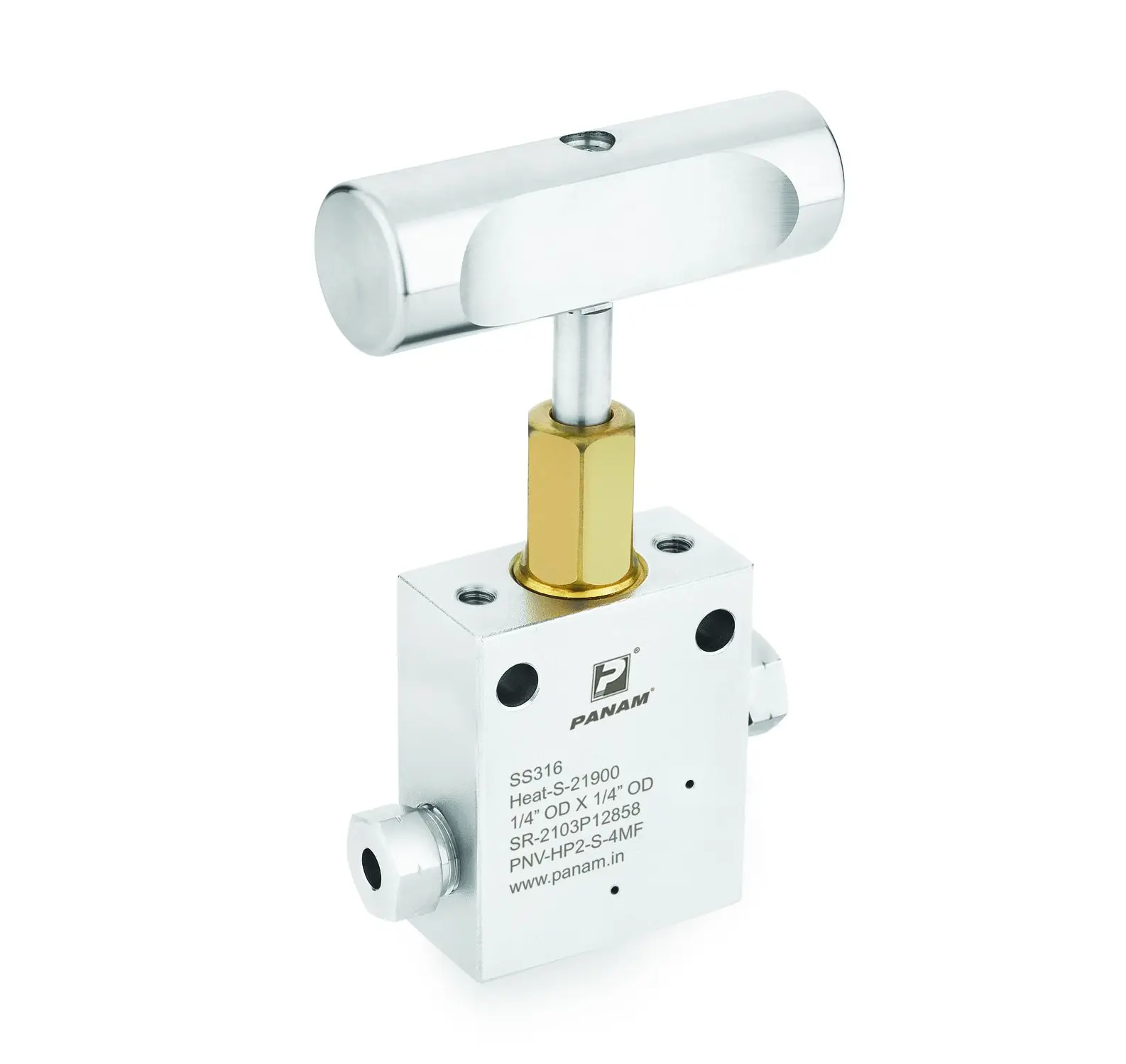

Needle Valves (Medium & HP Series) For Pressure up to 60,000 psi (4134 bar)
PANAM Needle valves are specially designed and manufactured for use in rugged, corrosive & hazardous environments up to 60000 psi (4134 bar). These valves are used in process control, instrumentation and flow control applications. PANAM Needle valves are precision machined, designed for durability and maximum efficiency and provide high quality Valves. Needle valves (HP Series) meets the stringent requirements of the customers. All Valves are 100% factory tested.
Features
- Working Pressure: Up to 60000 psi (4134 bar)
- Connection sizes - 1/4', 3/8'', 1/2'', 9/16", 3/4", 1"
- Connection Type - Medium and high-pressure cone and thread , NPT thread
- Panel mounting option available
- Bonnet machined from C63000 for reduced operation torque
- Packing below stem threads
- Full open in 4 to 5 turns for 1/4”, 3/8”, 1/2”, 9/16” valves
- Full open in 3 to 4 turns for 3/4”, 1” valves
- Two-piece, heavy-duty, non-rotating stem for a robust and reliable assembly
- Temperature up to 250°F (121°C) with glass filled PTFE packing, up to 1200°F (648°C) with Grafoil packing
Ball Valve

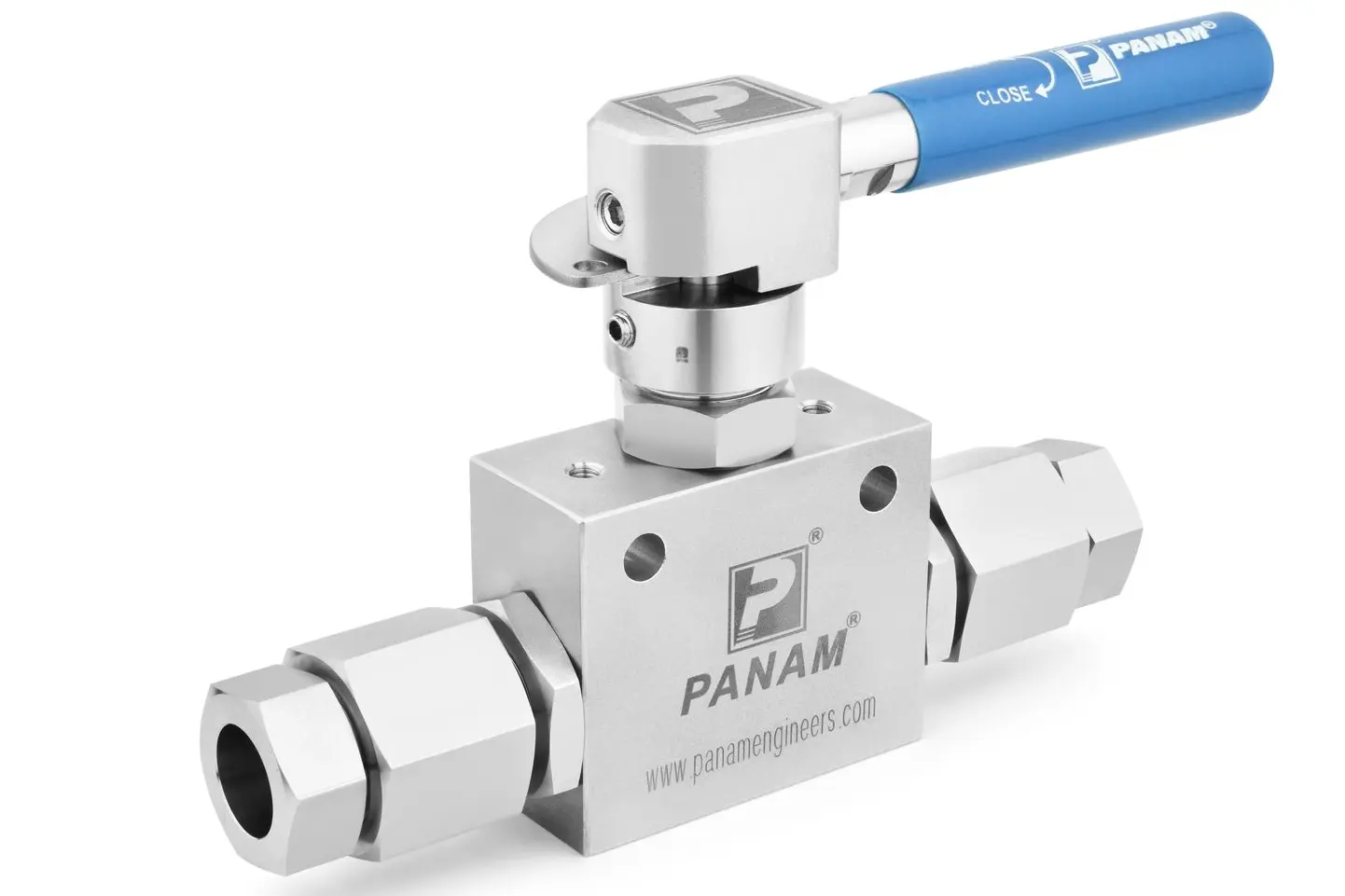

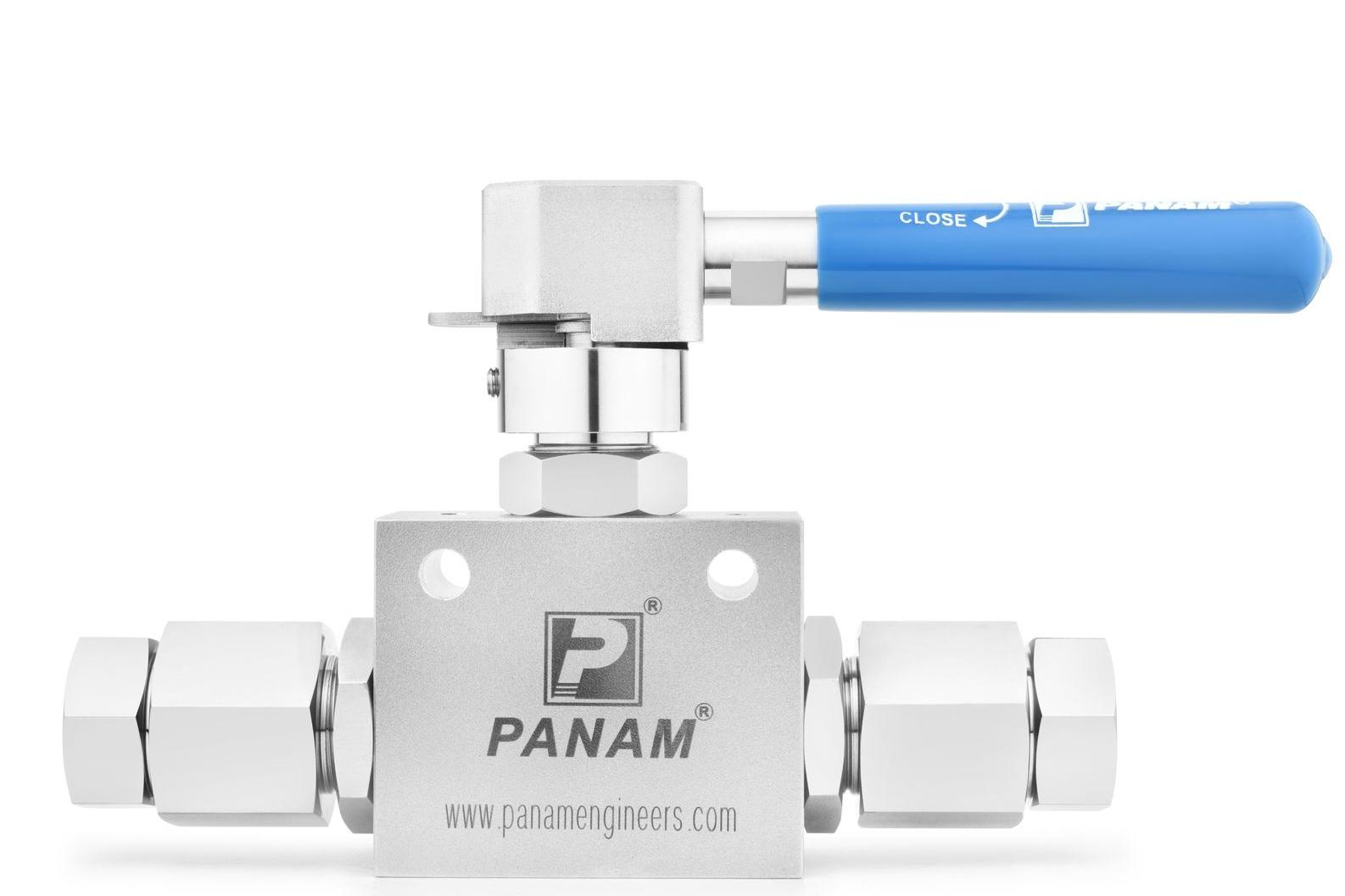

Ball Valves (Medium Series) For Pressure up to 20,000 psi (1378 bar)

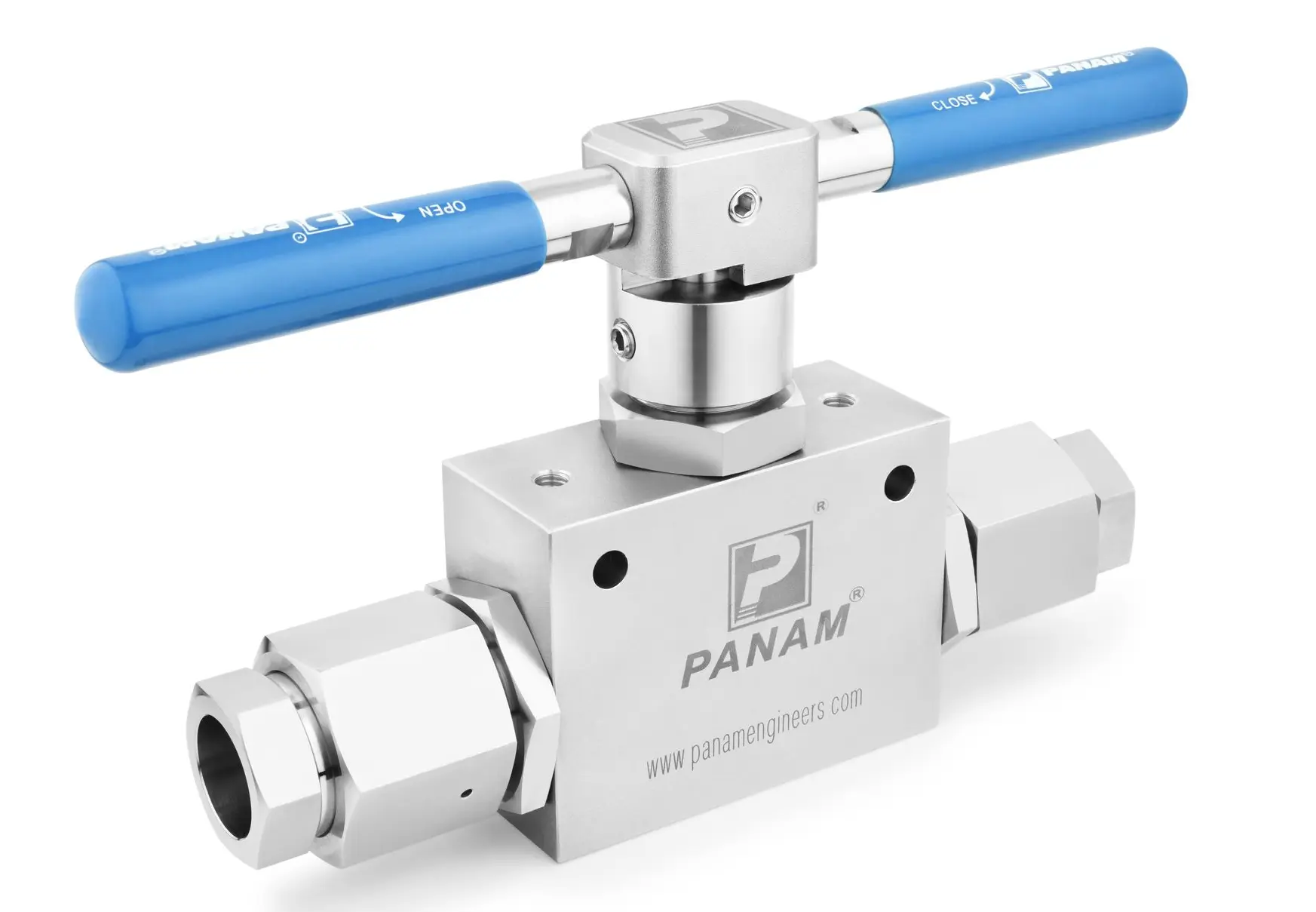

PANAM Ball Valves are engineered for reliable performance in rugged, corrosive, and hazardous environments, with a pressure rating of up to 20000 psi (1378 bar). Designed for use in process control, instrumentation, and flow regulation applications, these high-performance valves ensure smooth operation and durability. Precision-machined for maximum efficiency, PANAM Ball Valves meet the highest industry standards and stringent customer requirements. Each valve undergoes 100% factory testing to guarantee superior quality and reliability.
Features
- Working Pressure: Up to 20000 psi (1378 bar)
- Connection Sizes: Available in 1/4", 3/8", 1/2", 9/16", 3/4", and 1"
- Connection Types: Medium pressure cone and thread , NPT thread
- 2-way valves - Bidirectional
- 2-way valves - Quarter turn (90° actuation) from open to close with positive stop
- 3-way valves - Common side or bottom inlet port
- 3-way valves - Available in 90° turn diverter and 180° turn switching models
- PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion
- FKM Fluorocarbon (Viton®) O-rings are standard, 0° to 400°F (-18° to 204°C)
Custom Manifolds

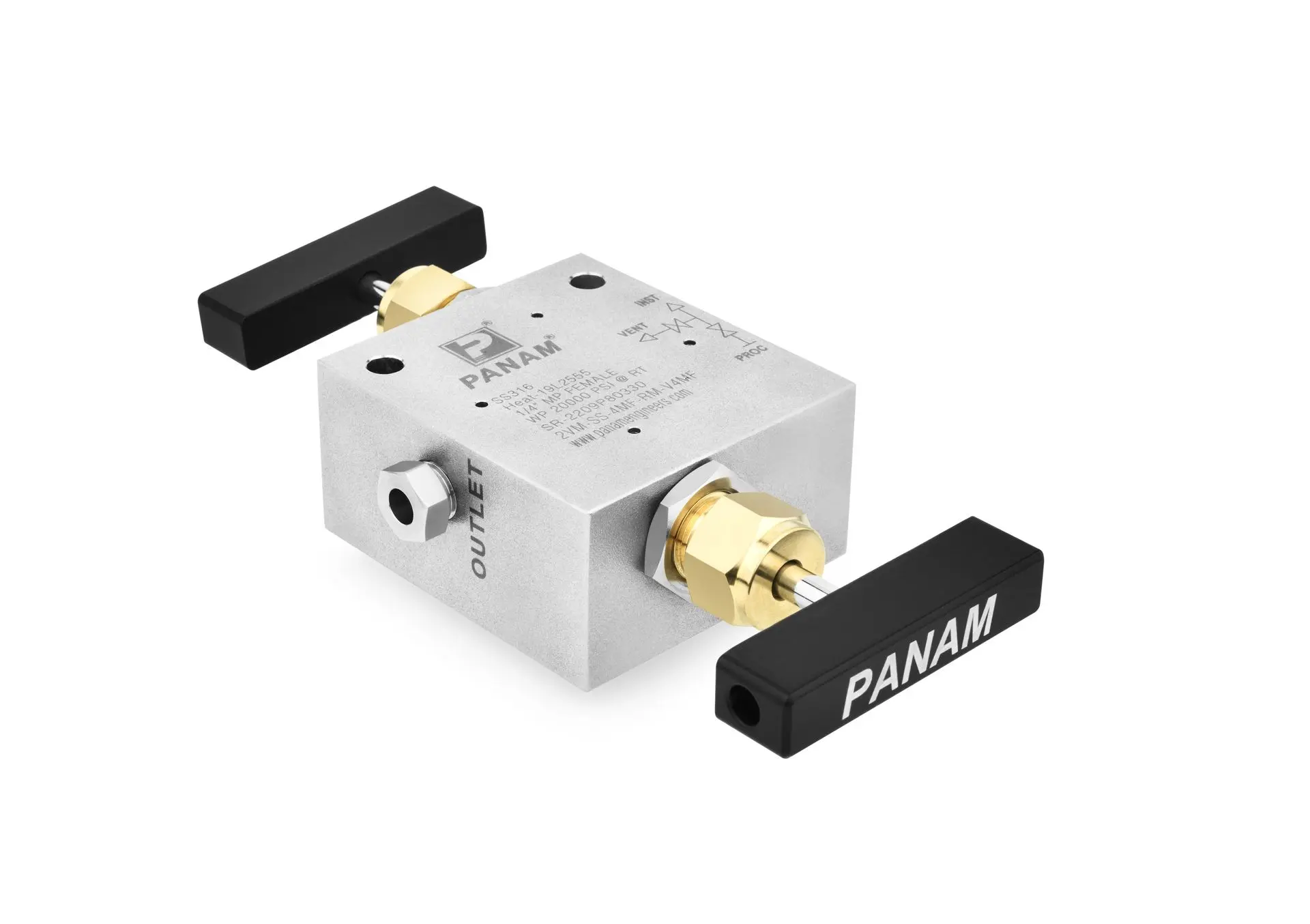

Custom Manifolds (Medium & HP Series) For Pressure up to 60,000 psi (4134 bar)

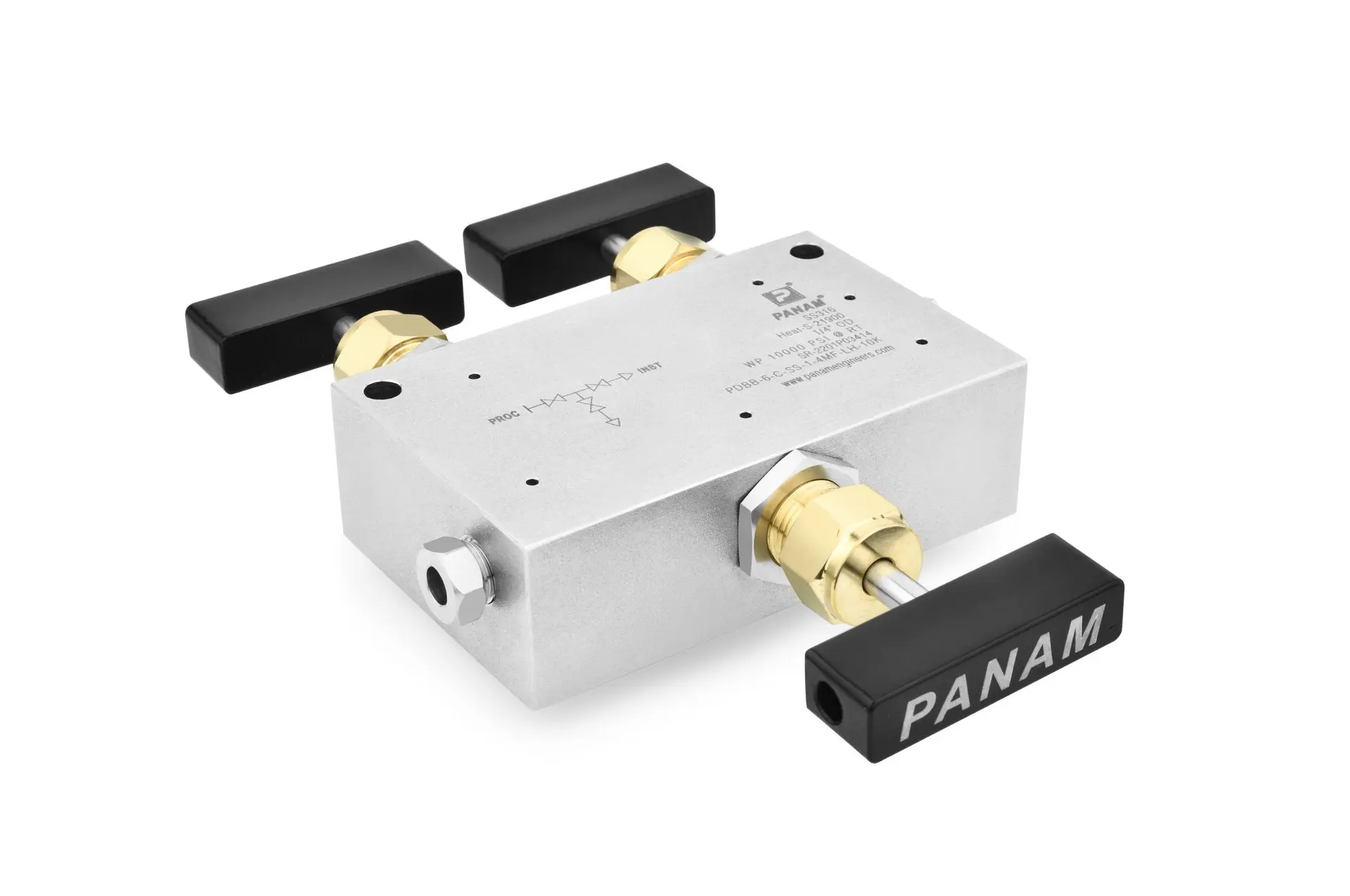

PANAM Custom Manifold (Medium & High Pressure Series) are designed to optimize fluid system performance in high-pressure applications, with pressure rating up to 60000 psi (4134 bar). These manifolds are engineered to meet the unique demands of your system. With a focus on performance, reliability, and convenience, our custom manifolds integrate a variety of valve configurations including needle valves, ball valves, and check valves ensuring seamless operation for even the most complex setups.
Features
- Working Pressure: Up to 60,000 psi (4134 bar)
- Connection Sizes: Available in 1/4", 3/8", 1/2", 9/16", 3/4", and 1"
- Connection Types: Medium and high-pressure cone and thread, NPT
- High-Quality Materials: High tensile strength stainless steel, as well as exotic materials such as Hastelloy C, Inconel 625, Duplex, and Super Duplex.
- Design Flexibility: Each manifold is built to your exact specifications, optimizing space, reducing leak points, and enhancing system efficiency.
- Single Block Construction: Machined from a single solid block with multiple outlet connections, our custom manifolds eliminate potential leak paths, improving safety and reducing maintenance.
-
Versatile Configurations: Whether you need compact, lightweight designs or robust, multi-valve arrangements, PANAM’s expert engineering team tailors each manifold to match your requirements.
- Compliance: Relief valves can be supplied to meet the latest NACE MR0175 and NACE MR0103 (Sour Gas Service) standards

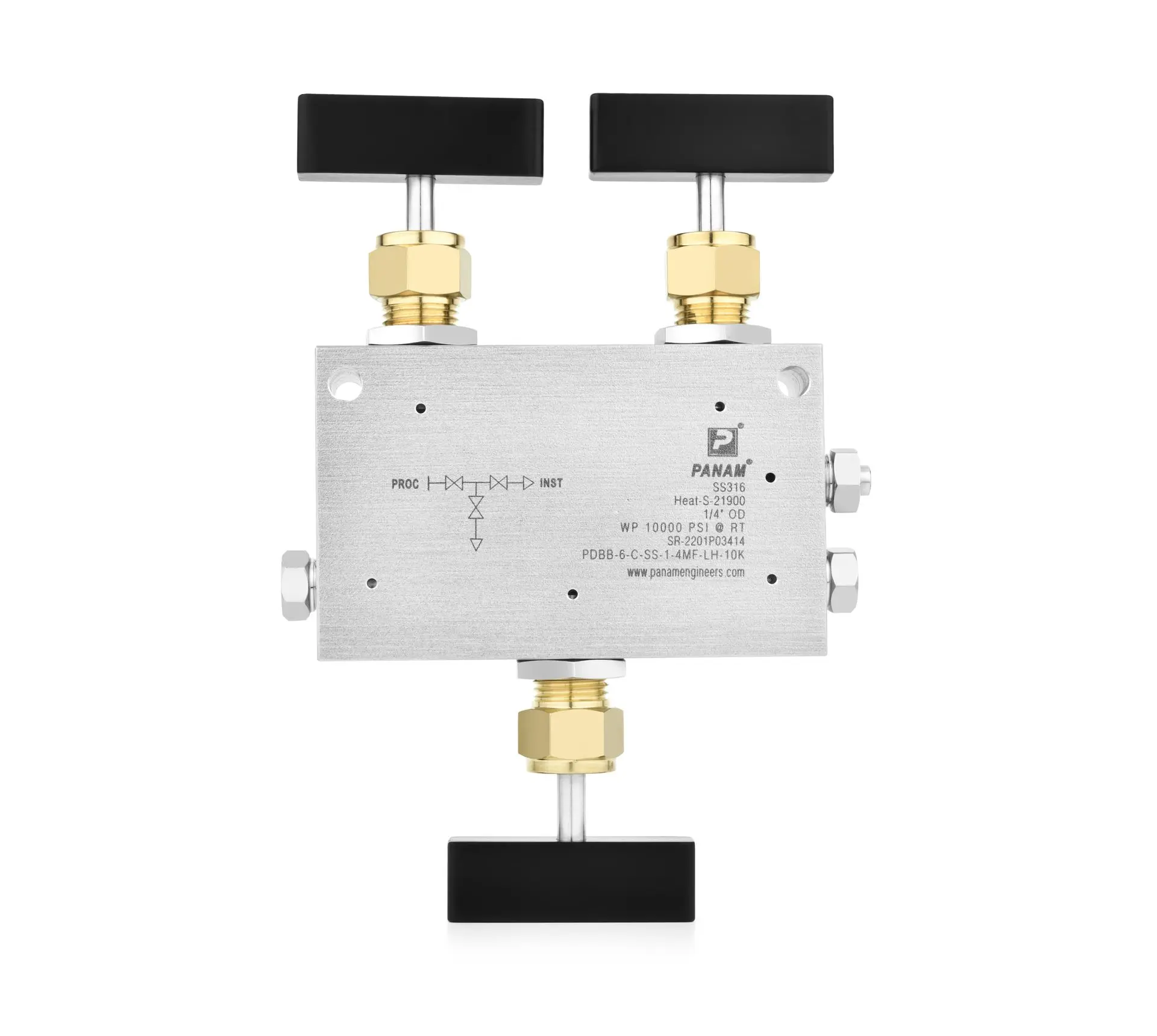

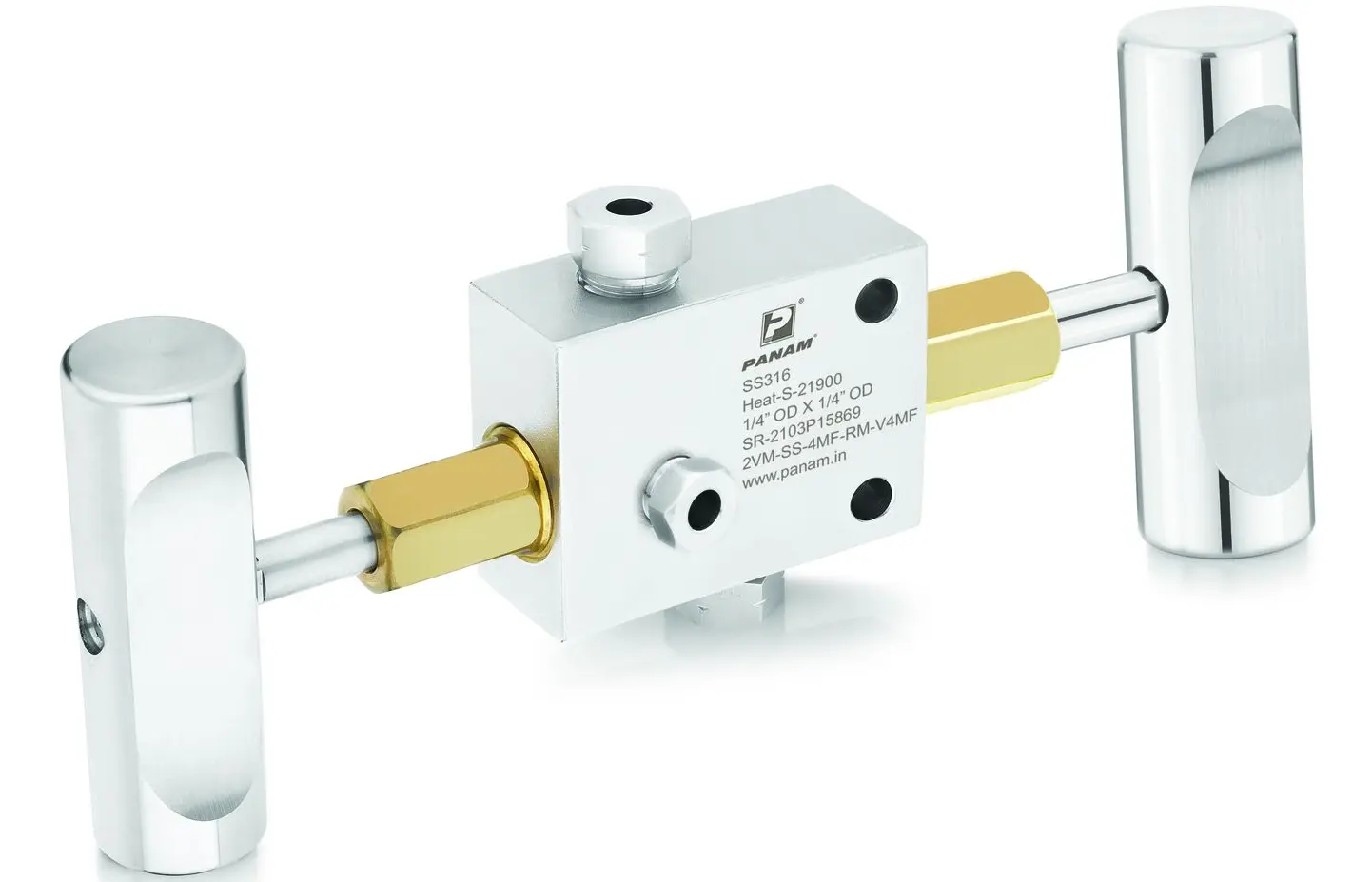

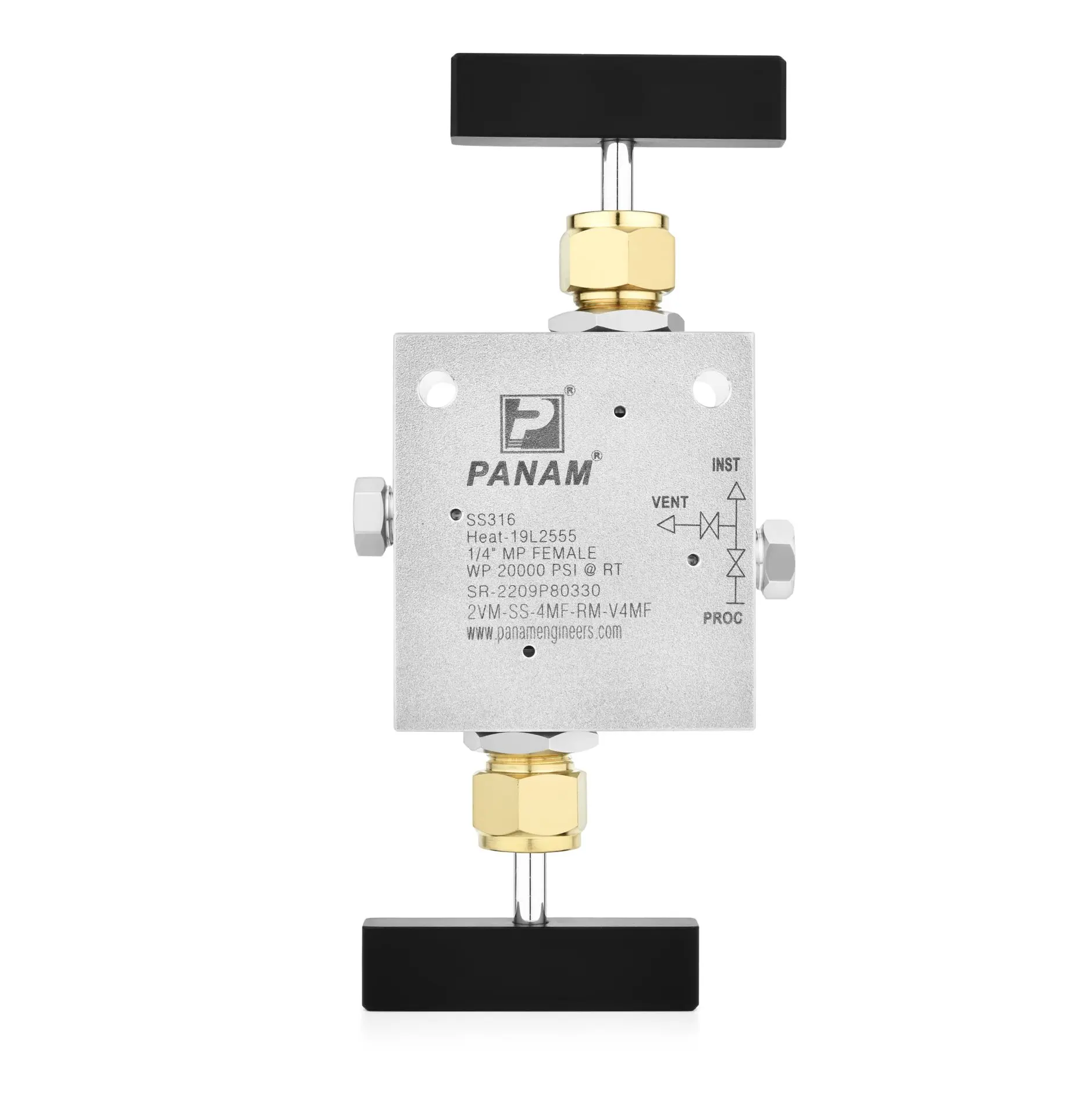

Double Block & Bleed
Double Block & Bleed (Medium & HP Series) For Pressure up to 20000 psi (1378 bar)
PANAM Double Block & Bleed Valves are designed for high-pressure applications, offering safe and reliable isolation and venting of fluid systems. These valves are widely used in industries such as oil and gas, chemical processing, and instrumentation, where leak-tight performance and durability are essential.
Features
- Working Pressure: Up to 20,000 psi (1378 bar)
- Connection Sizes: Available in 1/4", 3/8", 1/2", 9/16", 3/4", 1"
-
Connection Types:
- Medium pressure cone and thread
- NPT thread
-
Configurations:
- Ball x Needle x Ball
- Needle x Needle x Needle
- Needle x Needle (Single Block and Bleed)
-
Pressure-Temperature Ratings:
-
Ball/Needle/Ball with Fluorocarbon FKM O-Rings:
- 0°F to 400°F (-18°C to 204°C) - NPT Thread: 1/4" to 3/4" - 15,000 psi (1034 bar
- 0°F to 400°F (-18°C to 204°C) - Medium Pressure Cone and Thread: 1/4" to 1" - 1/4" to 3/4" - 15,000 psi (1034 bar)
-
Ball/Needle/Ball with Fluorocarbon FKM O-Rings:
-
Needle/Needle and Needle/Needle/Needle with Glass-Filled PTFE Packing:
- 0°F to 400°F (-18°C to 204°C) - NPT Thread: 1/4" to 3/4" - 20,000 psi (1378 bar)
- 0°F to 400°F (-18°C to 204°C) - Medium Pressure Cone and Thread: 1/4" to 1" - 1/4" to 3/4" - 20,000 psi (1378 bar)
-
Needle/Needle and Needle/Needle/Needle with Glass-Filled PTFE Packing:
Check Valves
Check Valves (Medium & HP Series) For Pressure up to 60,000 psi (4134 bar)
PANAM Check Valves (Medium & High Pressure Series) are designed to provide high-pressure check valves capable of handling pressures up to 60,000 psi (4134 bar). These valves are constructed from 316 stainless steel and are available in various designs, including ball-seal poppet, soft-seal poppet, and dual-seal ball configurations.
Features
- Working Pressure: Up to 60,000 psi (4134 bar)
- Connection Sizes: Available in 1/4", 3/8", 1/2", 9/16", 3/4", and 1"
- Connection Types: Medium and high-pressure cone and thread, NPT, BSPT, and BSPP threaded connections
- Cracking Pressure : Nominal Cracking Pressure 15 psi (1.0 bar)
- Temperature Range: Up to 650°F (343°C)
- Compliance: Check valves can be supplied to meet the latest NACE MR0175 and NACE MR0103 (Sour Gas Service) standards
Relief Valves
Relief Valves (Medium & HP Series) For Pressure up to 60000 psi (4134 bar)
PANAM Relief Valves (Medium & High Pressure Series) are designed to provide reliable overpressure protection in high-pressure systems. With a working pressure of up to 60,000 psi (4134 bar), these precision-engineered valves automatically release excess pressure to safeguard instrumentation, process control, and fluid handling applications.
Features
- Working Pressure: Up to 60,000 psi (4134 bar)
- Connection Sizes: Available in 1/4", 3/8", 1/2", 9/16", 3/4", and 1"
- Connection Types: Medium and high-pressure cone and thread, NPT, BSPT, and BSPP threaded connections
- Set Pressure Range: Adjustable from 1,500 psi (103 bar) to 60,000 psi (4134 bar)
- Leak-Tight & Secure Seal: Precision design ensures accurate pressure relief and system protection
- High-Quality Materials: Manufactured from corrosion-resistant high tensile strength stainless steel, (SS 316) for durability and extended service life
- Factory Pre-Set or Field Adjustable: Available in both factory pre-set and user-adjustable configurations for customized pressure settings
- Compliance: Relief valves can be supplied to meet the latest NACE MR0175 and NACE MR0103 (Sour Gas Service) standards
